Installation 2. Installation
RC700 Series Rev.3 15

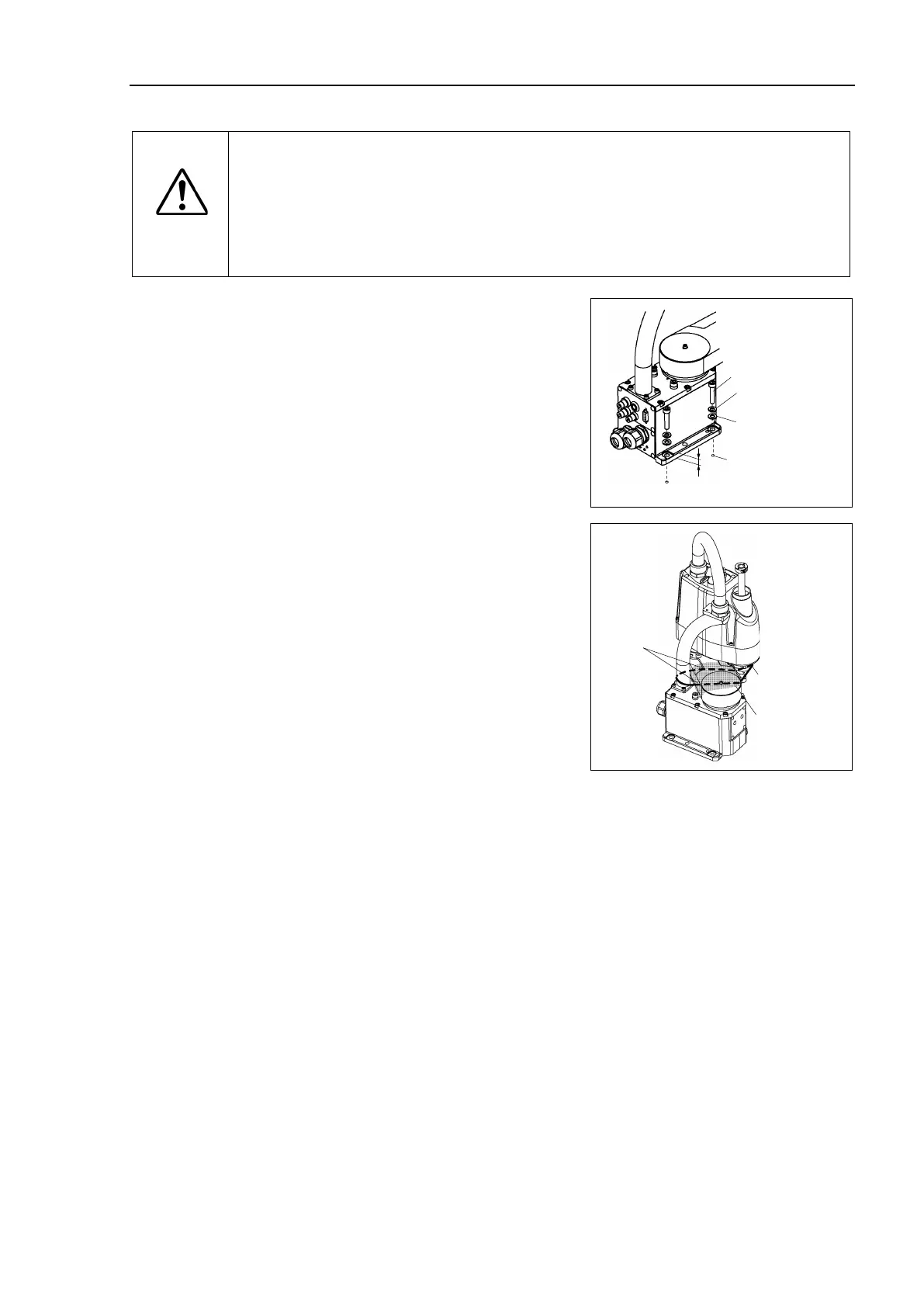

G3 :Table Top Mounting
CAUTION
■
Install the
Table Top Mounting Manipulator with two or more people. The
Manipulator
weights are as follows. Be careful not to get hands, fingers, or feet
caught and/or have equipment damage
d by a fall of the Manipulator.
G3
-251* : approx. 14 kg: 31 lbs.
G3
-301* : approx. 14 kg: 31 lbs.
G3
-351* : approx. 14 kg: 31 lbs.
(1)
Secure the base to the base table
with four bolts.
Use bolts with specifications conforming to
ISO898
-1 property Class: 10.9 or 12.9.
Tightening torque
: 32.0 N·m (326 kgf·cm)
10 mm
Screw Hole
(depth 20
mm or
more)
4-M8×3
0
Spring
Washer
Pane Washer
(2)
Using nippers, cut off the wire tie binding the
shaft and arm
retaining bracket on the base.
Bolt: M4×15
Wire tie
Sheet
(3)
Remove the bolts securing the wire ties removed
in step (2).
(4)
Remove the shipping bolt and jigs.

NOTE
