Installation 2. Installation
16 RC700 Series Rev.3

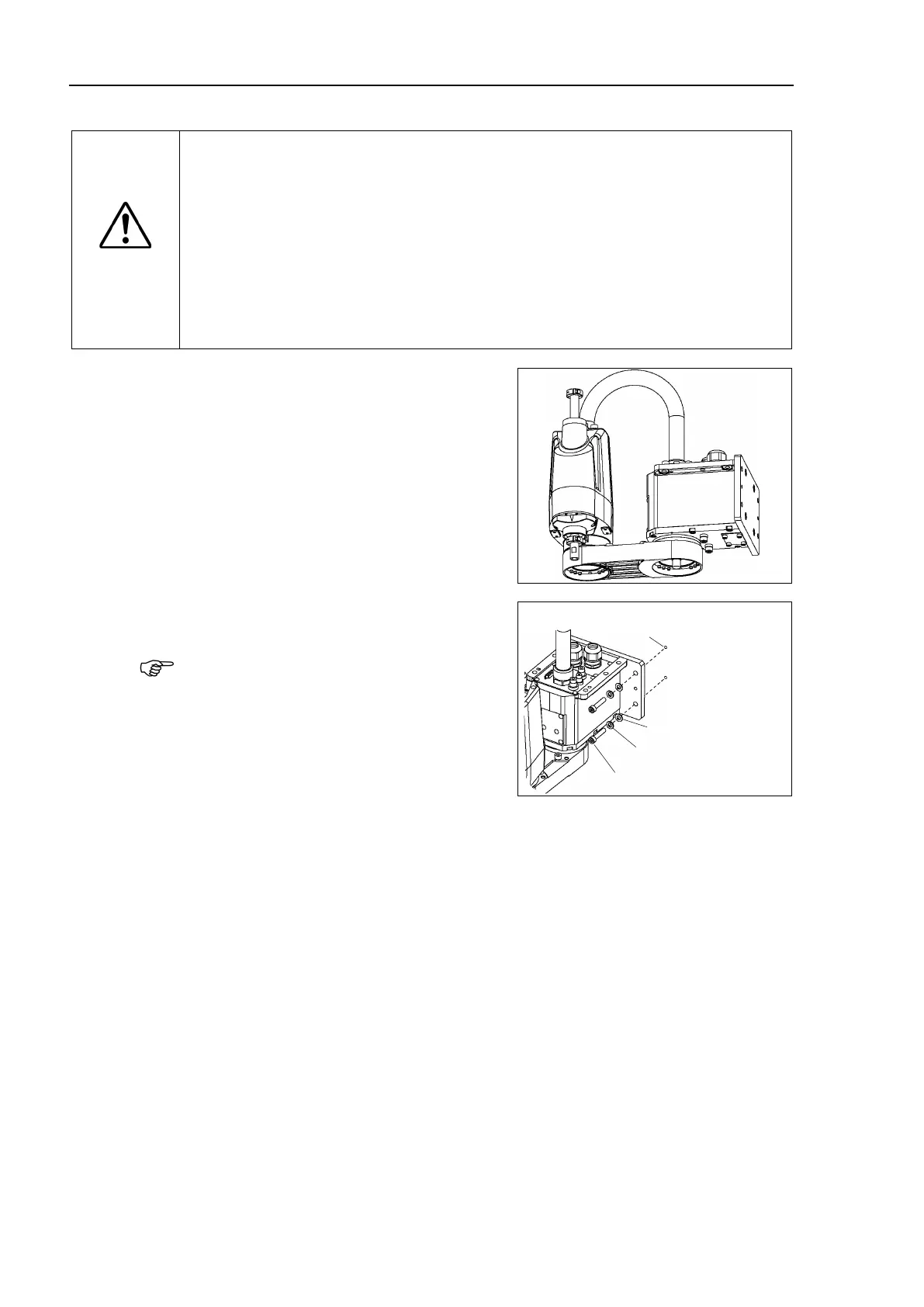

G3 :Multiple Mounting
WARNING
■
Install the
Multiple Mounting Manipulator with two or more people.
The Manipulator
weights are as follows. Be careful not to get hands, fingers, or
feet caught and/or have equipment damage
d by a fall of the Manipulator.
G3
-301*M : approx. 14 kg: 31 lbs.
G3
-351*M : approx. 14 kg: 31 lbs.
■
When installing
the Manipulator to the wall, support the Manipulator, and then
secure
the anchor bolts. Removing the support without securing the anchor
bolts properly
is extremely hazardous and may result in fall of the Manipulator.
(1)
Unpack the Manipulator with retaining the arm
posture.
(2)
Secure the base to the wall with four bolts.
Use bolts with specifications conforming to
ISO898
-1 Property Class: 10.9 or 12.9.
Tightening torque
: 32.0 N·m (326 kgf·cm)
4-M8×30
Screw Hole
(depth 20 mm or more)
Spring Washer
Pane Washer
(3)
Remove the shipping bolt and jigs.

NOTE
