Epson RC700-A

Installation 2. Installation
RC700 Series Rev.3 17

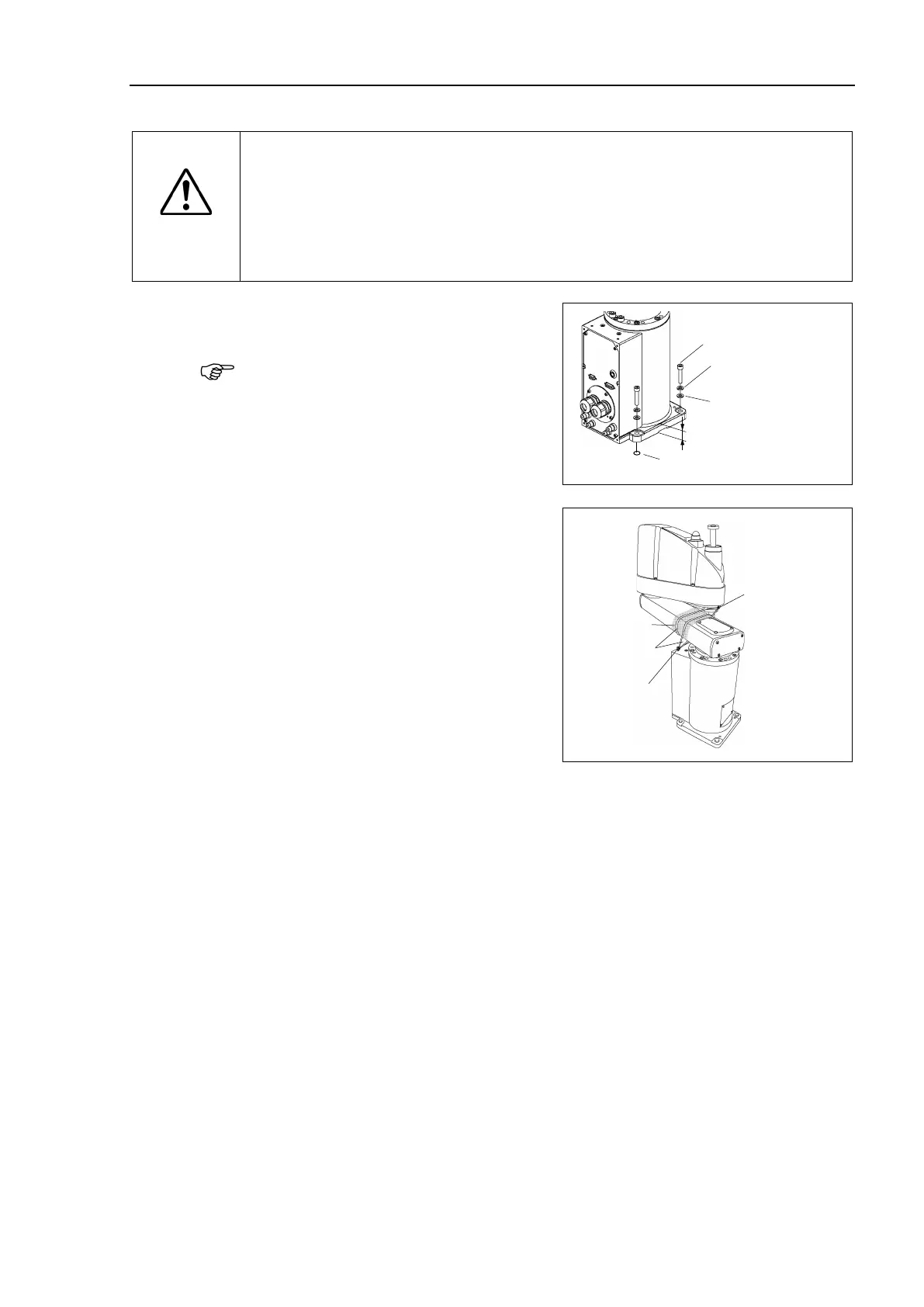

G6 :Table Top Mounting
WARNING
■
Install the
Tab le To p Mounting Manipulator with two or more people.
The Manipulator
weights are as follows. Be careful not to get hands, fingers,
or feet caught and/or have equipment damage
d by a fall of the Manipulator.
G6
-45** : Approximately 27 kg: 60 lbs.
G6
-55** : Approximately 27 kg: 60 lbs.
G6
-65** : Approximately 28 kg: 62 lbs.
(1)
Secure the base to the base table with four
bolts.
Use bolts with specifications conforming to
ISO898
-1 property Class: 10.9 or 12.9.
Tightening torque
: 32.0 N·m (326 kgf·cm)
20 mm
4-M8×4
Screw Hole
(depth 20 mm or more)
Spring Washer
Pane Washer
(2)
Using nippers, cut off the wire tie binding the
shaft and arm retaining bracket on the base.
Bolt
: M4×15
Bolt
: M5×15
Wire tie
Sheet
(3)
Remove the bolts securing the wire ties
removed in step (2).
(4)
Remove the shipping bolt and jigs.

NOTE
