Epson RC700-A

Installation 2. Installation
18 RC700 Series Rev.3

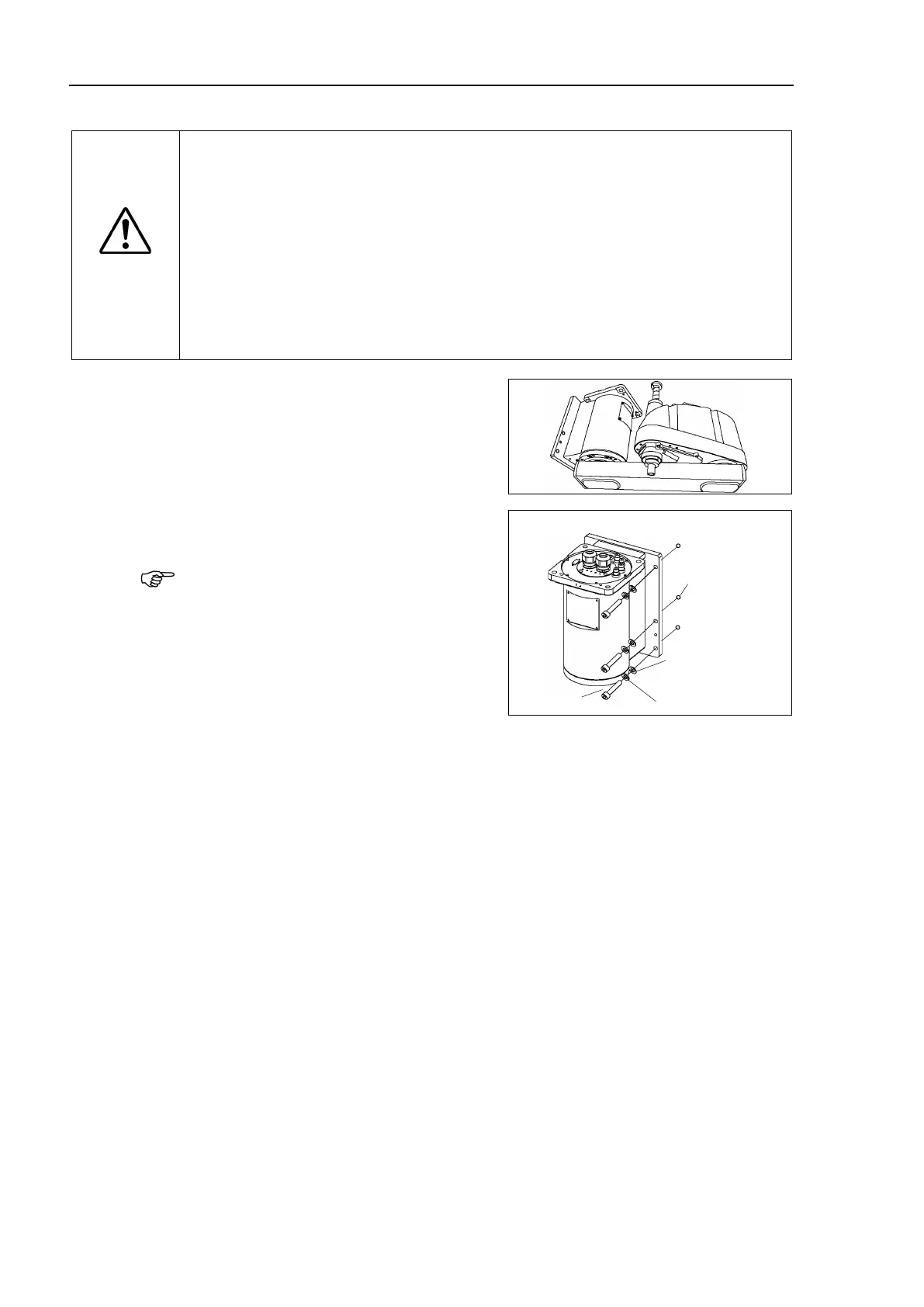

G6 :Wall Mounting
WARNING
■
Install the
Wall Mounting Manipulator with two or more people.
The Manipulator
weights are as follows. Be careful not to get hands, fingers,
or feet caught and/or have
equipment damaged by a fall of the Manipulator.
G6
-45**W : Approximately 29 kg: 64 lbs.
G6
-55**W : Approximately 29 kg: 64 lbs.
G6
-65**W : Approximately 29.5 kg: 65 lbs.
■
When installing
the Manipulator to the wall, support the Manipulator, and then
secure
the anchor bolts. Removing the support without securing the anchor
bolts properly
is extremely hazardous and may result in fall of the Manipulator.
(1)
Unpack the Manipulator with retaining the
arm
posture.
(2)
S
ecure the base to the wall with six bolts.
Use bolts
with specifications conforming to
ISO898
-1 Property Class: 10.9 or 12.9.
Tightening torque
: 32.0 N·m (326 kgf·cm)
6-M8×4
Screw Hole
(depth 20 mm
or more)
Spring
Washer
Pane
Washer
(3)
Remove the shipping bolt and jigs.

NOTE
