Installation 2. Installation
RC700 Series Rev.3 23
RS
CAUTION
■
Install the Manipulator with two or more people.
The Manipulator
weights are as follows. Be careful not to get hands, fingers, or
feet caught and/or have equipment damage
d by a fall of the Manipulator.
RS3
-351*: approx. 17 kg : 38 lbs. (except cables)
RS4
-551*: approx. 19 kg : 42 lbs. (except cables)
■
When installing
the Manipulator to the ceiling, support the Manipulator, and then
secure
the anchor bolts. Removing the support without securing the anchor
bolts properly
is extremely hazardous and may result in fall of the Manipulator.

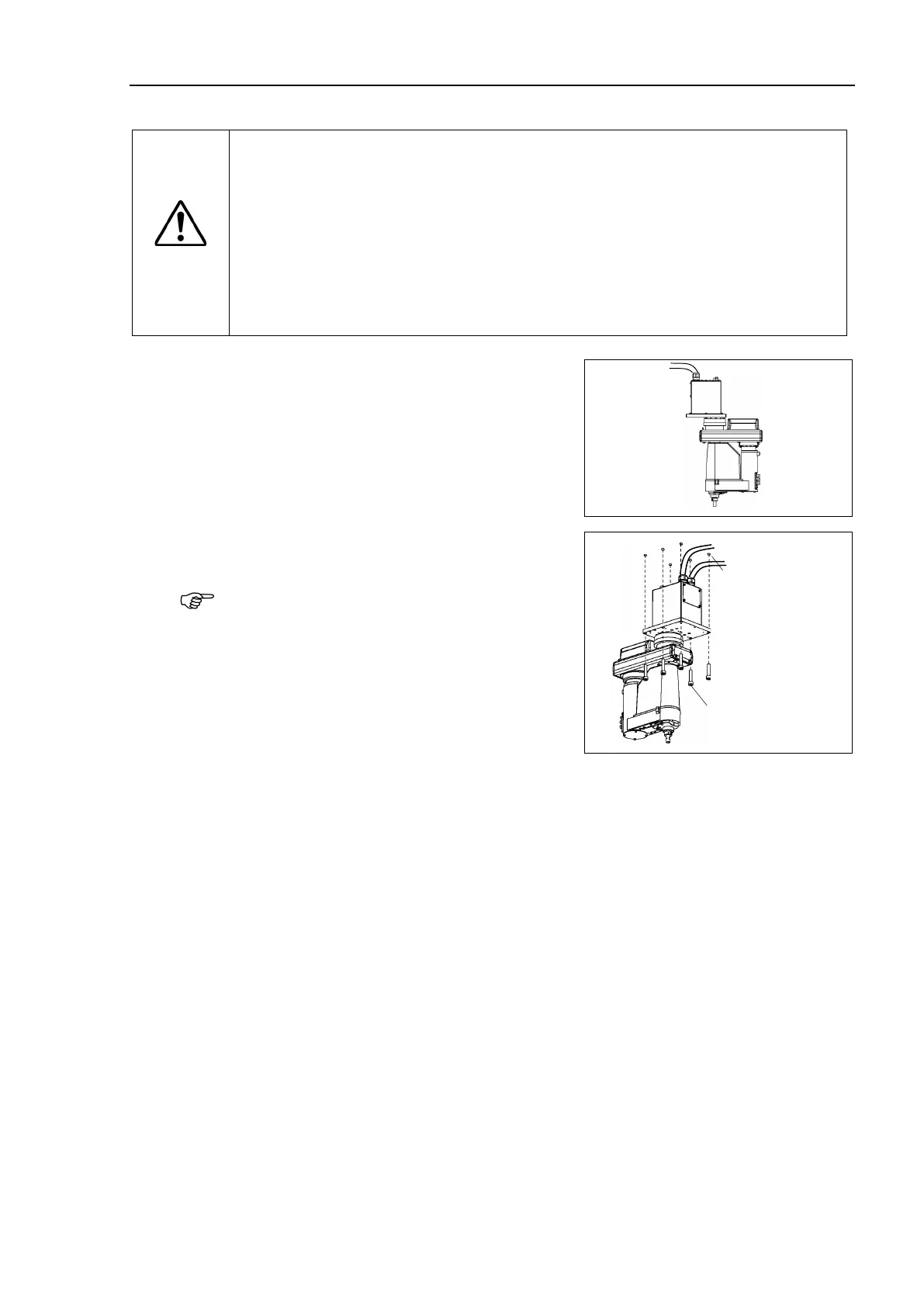

(1)
Unpack the Manipulator with retaining the arm
posture.
(2)
Secure the base to the wall with
6 bolts.
Intensity of the bolts should be
equivalent to
ISO898
-1 Property Class 10.9 or 12.9.
Tightening torque
: 13.0 N
·m (133 kgf·cm)
6-M6×20
Screw Hole
(depth 12 mm
or more)
(3)
Remove the shipping bolt and jigs.

NOTE
