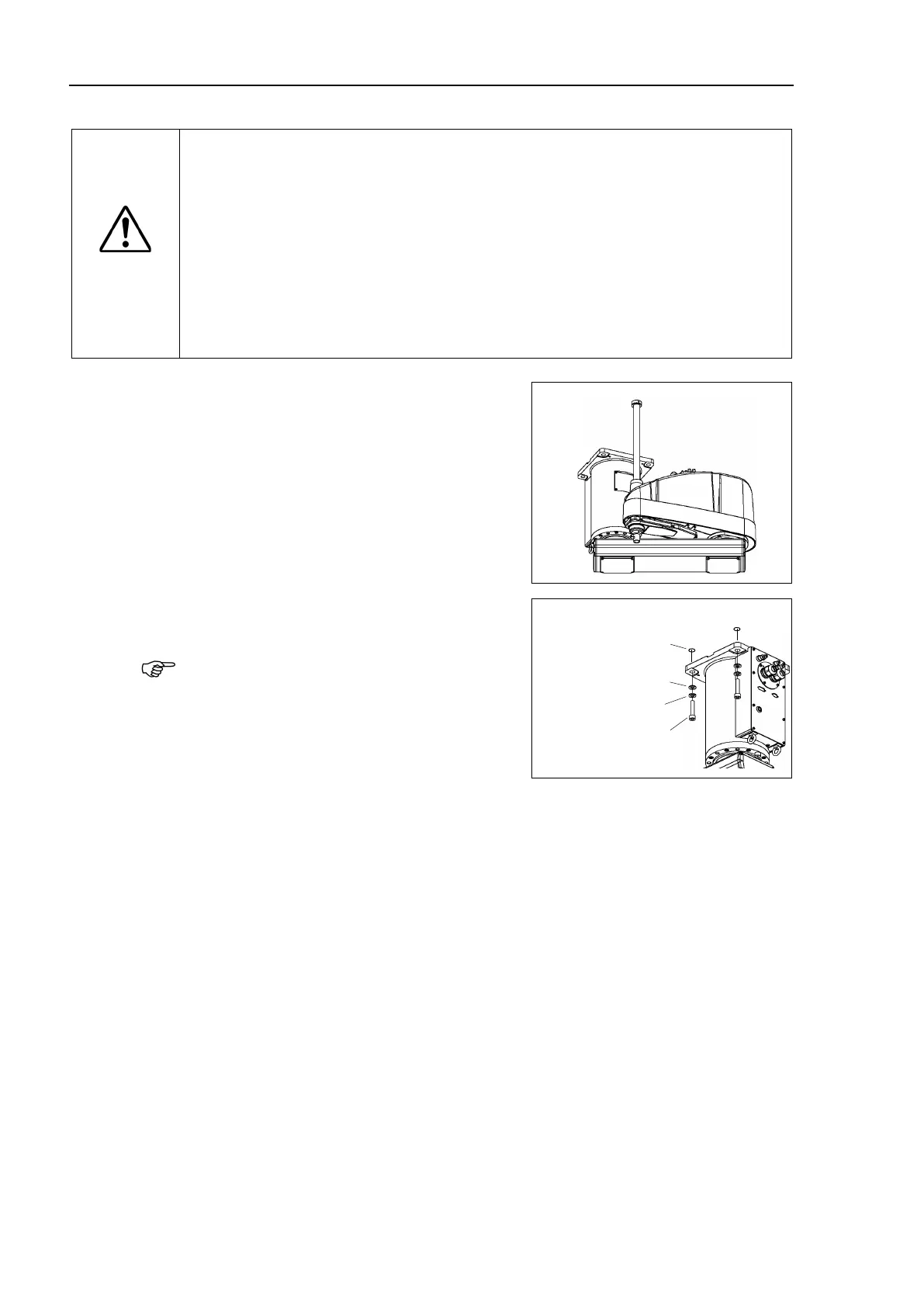

Installation 2. Installation
22 RC700 Series Rev.3
G10/G20 : Ceilling Mounting
WARNING
Install the
Ceiling Mounting Manipulator with four or more people.
The Manipulator
weights are as follows. Be careful not to get hands, fingers, or
feet caught and/or have equipment damage
d by a fall of the Manipulator.
G10
-65**R : Approximately 46 kg :102 lbs.
G10/G20
-85**R : Approximately 48 kg :106 lbs.
G20
-A0**R : Approximately 50 kg :111 lbs.
When installing
the Manipulator to the ceiling, support the Manipulator, and then
secure
the anchor bolts. Removing the support without securing the anchor
bolts properly
is extremely hazardous and may result in fall of the Manipulator.
(1)
Unpack the Manipulator with retaining the arm
posture.
(2)
Secure the base to the ceiling with four bolts.
Use bolts with specifications conforming to
ISO898
-1 Property Class: 10.9 or 12.9.
Tightening torque
: 32.0 N·m (326 kgf·cm)
4-M12×40
Screw Hole
(depth 20 mm o
r more)
Spring Washer
Pane Washer
(3)
Remove the shipping bolt and
jigs.
NOTE
