Epson RC700-A Original Instructions

Installation 2. Installation
RC700 Series Rev.3 21

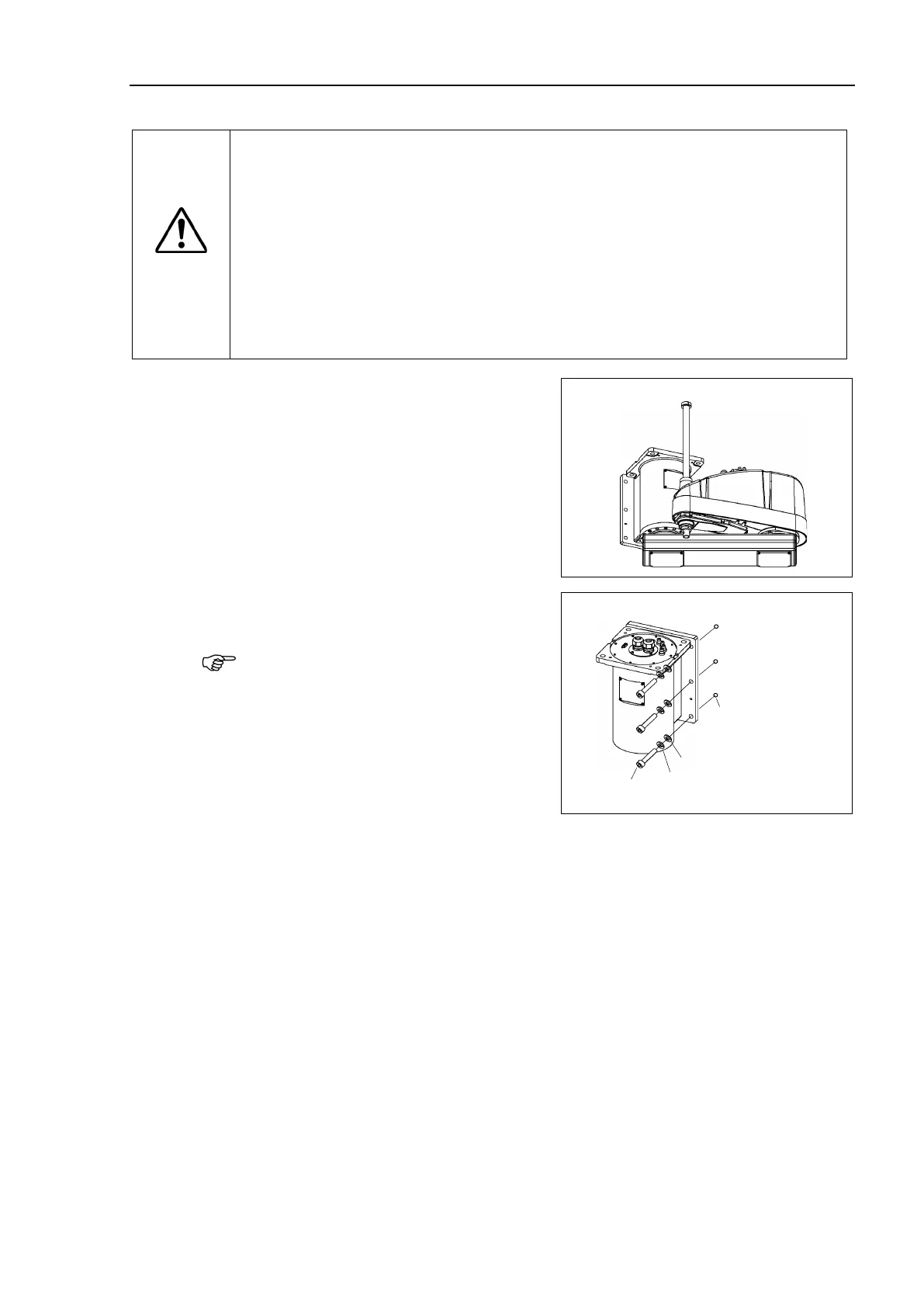

G10/G20 : Wall Mounting
WARNING
■
Install the
Wall Mounting Manipulator with four or more people.
The Manipulator
weights are as follows. Be careful not to get hands, fingers, or
feet caught and/or have equipment damage
d by a fall of the Manipulator.
G10
-65**W : Approximately 51 kg :113 lbs.
G10/G20
-85**W : Approximately 53 kg :117 lbs.
G20
-A0**W : Approximately 55 kg :122 lbs.
■
When installing
the Manipulator to the wall, support the Manipulator, and then
secure
the anchor bolts. Removing the support without securing the anchor
bolts properly
is extremely hazardous and may result in fall of the Manipulator.
(1)
Unpack the Manipulator with retaining the
arm posture.
(2)
Secure the base to the
wall with six bolts.
Use bolts
with specifications conforming to
ISO898
-1 Property Class: 10.9 or 12.9.
Tightening torque
: 32.0 N
·m (326 kgf·cm)
6-M12×40
Screw Hole
(depth 20 mm or more)
Pane washer
Spring Washer
(3)
Remove the shipping bolt and jigs.

NOTE
