Epson RC700-A Original Instructions

Installation 2. Installation
20 RC700 Series Rev.3

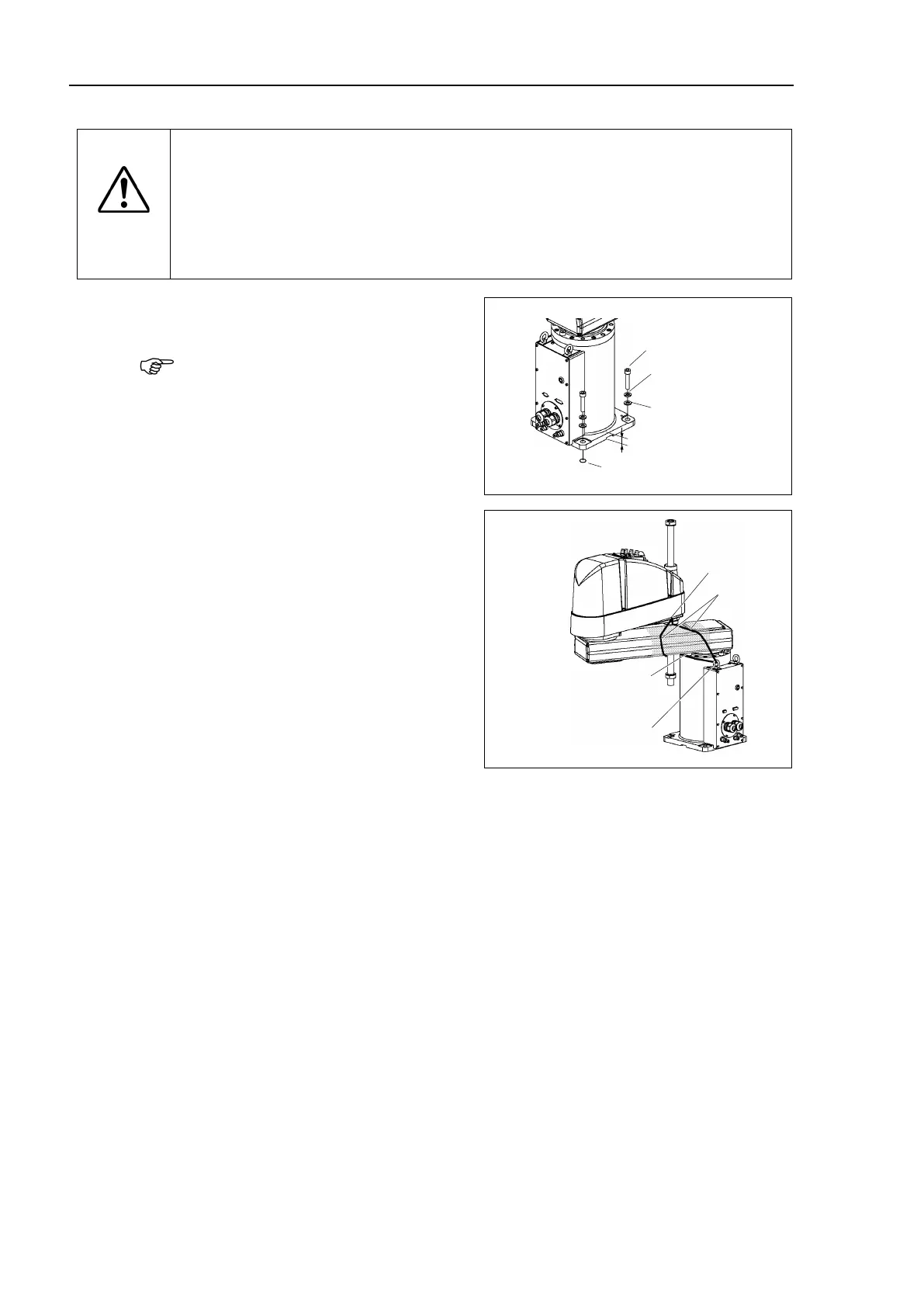

G10/G20 : Table Top Mounting
WARNING
■
Install the
Tab le To p Mounting Manipulator with four or more people.
The Manipulator
weights are as follows. Be careful not to get hands, fingers, or
feet caught and/or have equipment damage
d by a fall of the Manipulator.
G10
-65** : Approximately 46 kg :102 lbs.
G10/G20
-85** : Approximately 48 kg :106 lbs.
G20
-A0** : Approximately 50 kg :111 lbs.
(1)
Secure the base to the base table with four
bo
lts.
Use bolts
with specifications conforming
to ISO898
-1 Property Class: 10.9 or 12.9.
Tightening torque
: 73.5
N⋅m (750 kgf⋅cm)
20 mm
4-M12×40
Screw Hole
(depth 20 mm or more)
Spring
Washer
Pane Washer
(2)
Using nippers, cut off the wire tie
binding
the shaft and arm retaining bracket on the
base.
Bolt
: M4×15
Washer
: M6
Arm mounting bolt
: M12×20
Wire tie
Eyebolt
(Attached at shipment)
(3)
Remove the bolts securing the wire ties
removed in step (2).
(4)
Remove the shipping bolt and jigs.

NOTE
