16

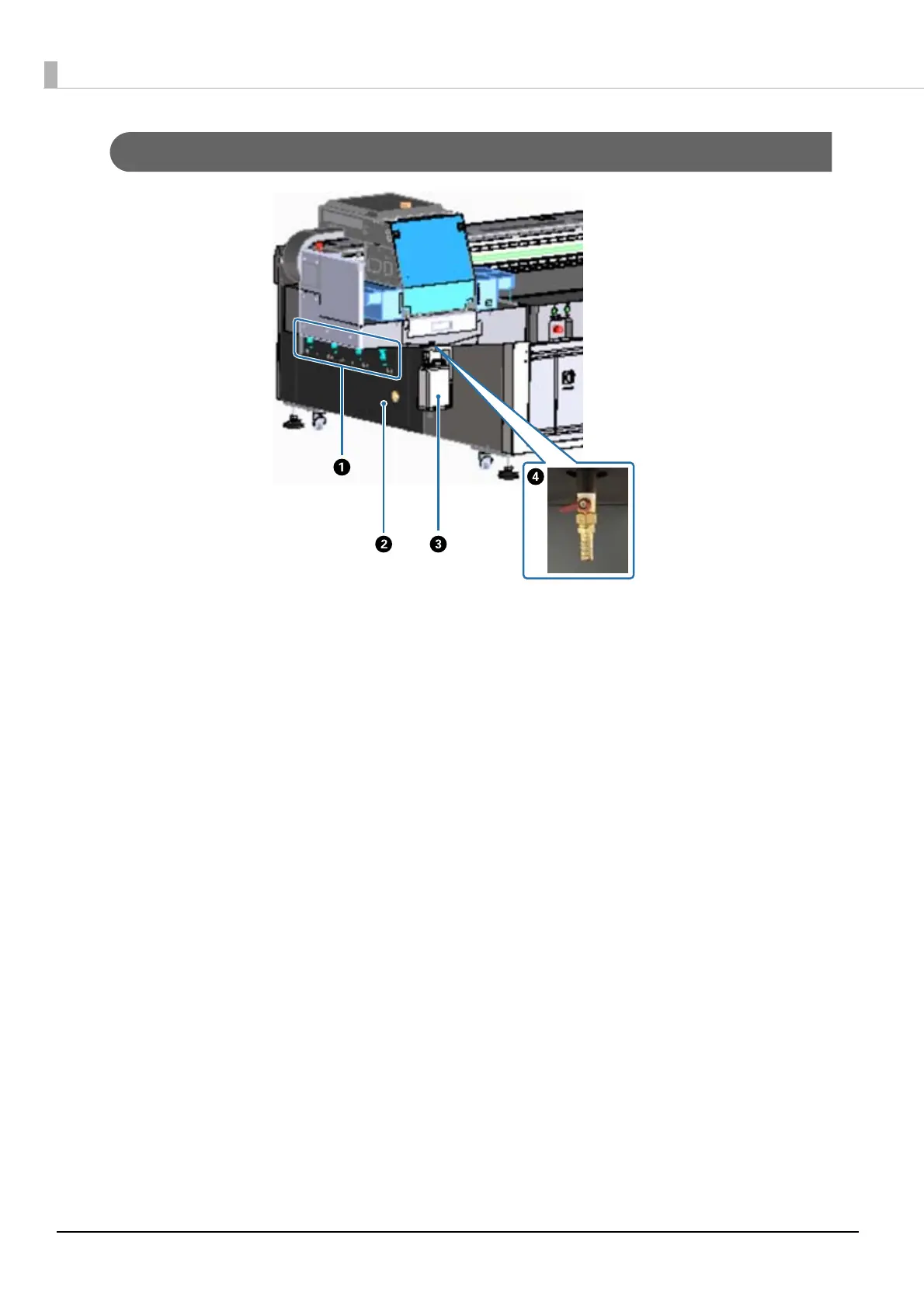

Left
A Suction valve
Set whether or not to perform suction at the four areas.
N"Loading Media" on page 34
B Exhaust port
Exhausts air from the suction fan.
C Waste ink bottle
Collects waste ink from the ink receiver. Transfer the waste ink to another container.
N"Daily Cleaning" on page 76
D Waste ink outlet
This is the outlet for the waste ink collected in the ink receiver.
N"Daily Cleaning" on page 76
