Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
MAINTENANCE Overview 155
Confidential

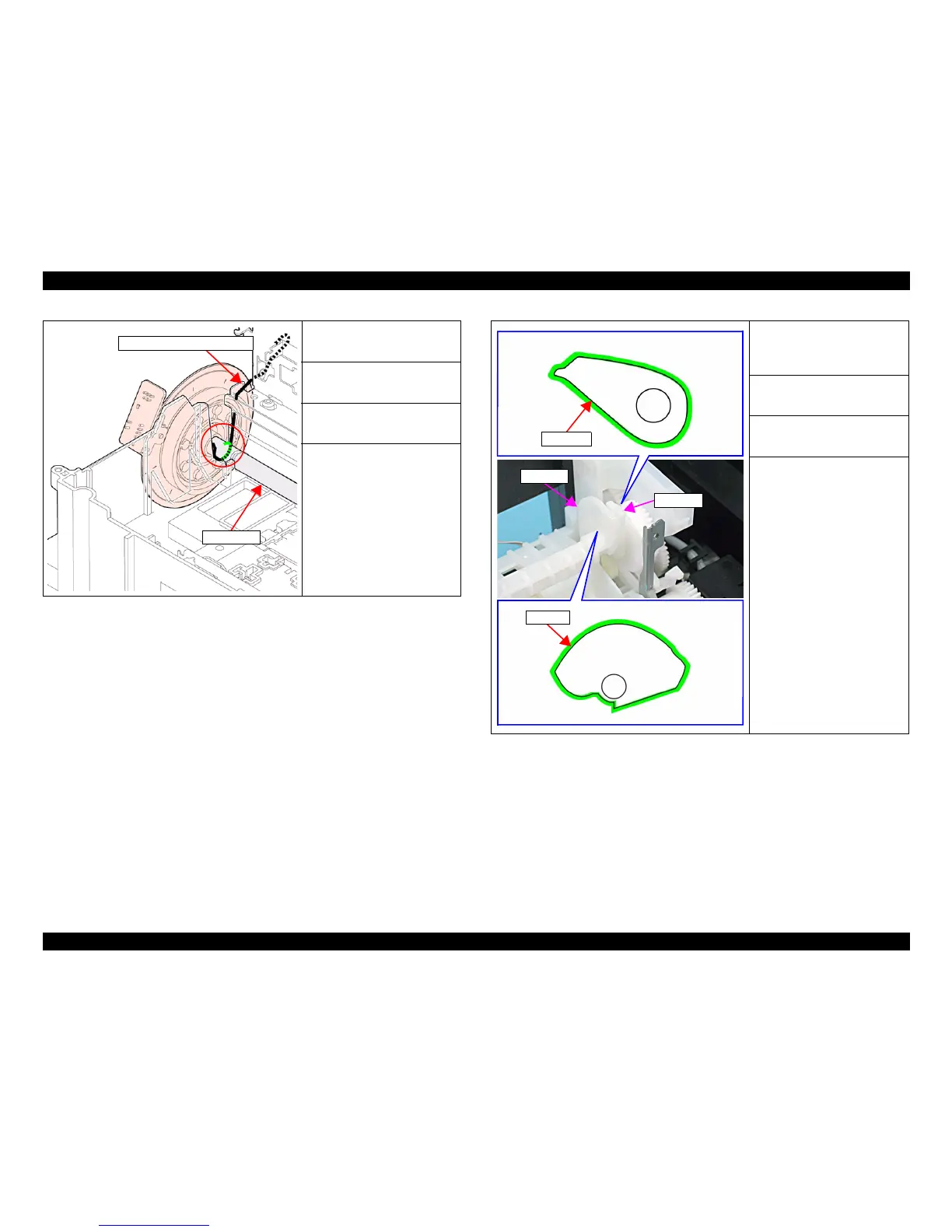

Figure 6-5. Lubrication on PF Roller Grounding Spring
Figure 6-6. Lubrication on LD Roller Shaft
<Lubrication Point>
Contact area with the PF Roller.
<Lubrication Type>
G-71
<Lubrication Amount>
φ 1 mm x 4 mm
<Remarks>
 Use an injector to apply G-71.
 Lubrication must be performed
only after installing the PF
Roller Grounding Spring.
PF Roller Grounding Spring
PF Roller
<Lubrication Point>
Cam A and Cam B of the LD
Roller shaft
<Lubrication Type>
G-71
<Lubrication Amount>
φ 1 mm x around each cam
<Remarks>
 Use an injector to apply G-71.
 Rub off excess G-71 with a
cotton bud if necessary.
Cam A
Cam B
Cam B
Cam A

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
