Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
MAINTENANCE Overview 156
Confidential

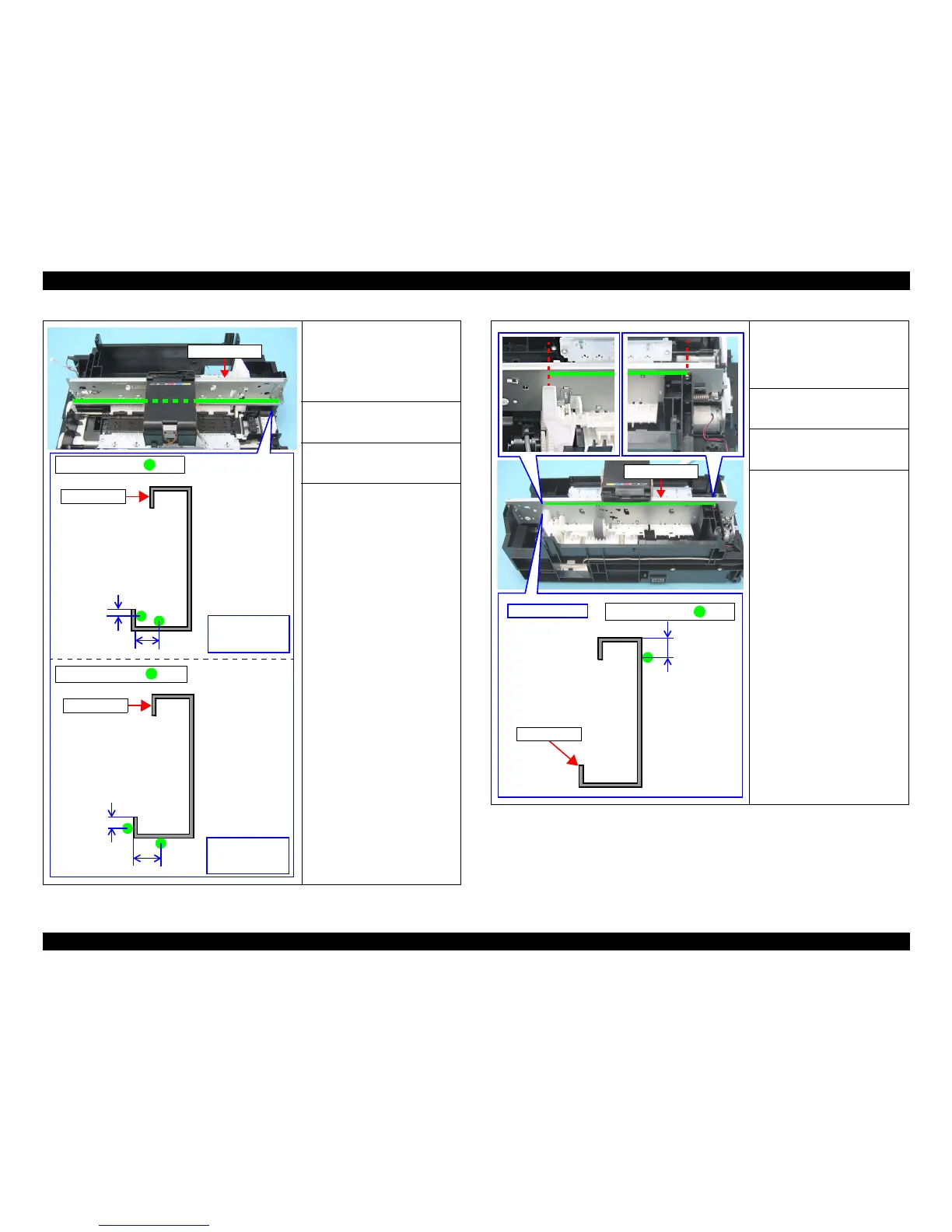

Figure 6-7. Lubrication on Main Frame (1)
Figure 6-8. Lubrication on Main Frame (2)
<Lubrication Point>
Along the contact areas between
the front of the Main Frame
and the CR Unit.
(x 4: Point A - Point D)
<Lubrication Type>
G-71
<Lubrication Amount>
φ 2 mm x 380 mm (x 4)
<Remarks>
 Use an injector to apply G-71.
 Clean the lubrication points
with a cloth beforehand.
Main Frame
Right Side View
(Inner surface of
the Main Frame)
Lubrication Point ( : x 2)
Main Frame
7 mm
2.8 mm
A
B
Right Side View
(Outer surface of
the Main Frame)
Lubrication Point ( : x 2)
3.5 mm
3.3 mm
C
D
Main Frame
<Lubrication Point>
Along the contact area between
the back of the Main Frame and
the CR Unit.
<Lubrication Type>
G-71
<Lubrication Amount>
φ 2 mm x 275 mm
<Remarks>
 Use an injector to apply G-71.
 Clean the lubrication point with
a cloth beforehand.
Right Side View
3.4 mm
Lubrication Point ( : x 1)
Main Frame
Main Frame

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
