MAINTENANCE Overview 157
Confidential

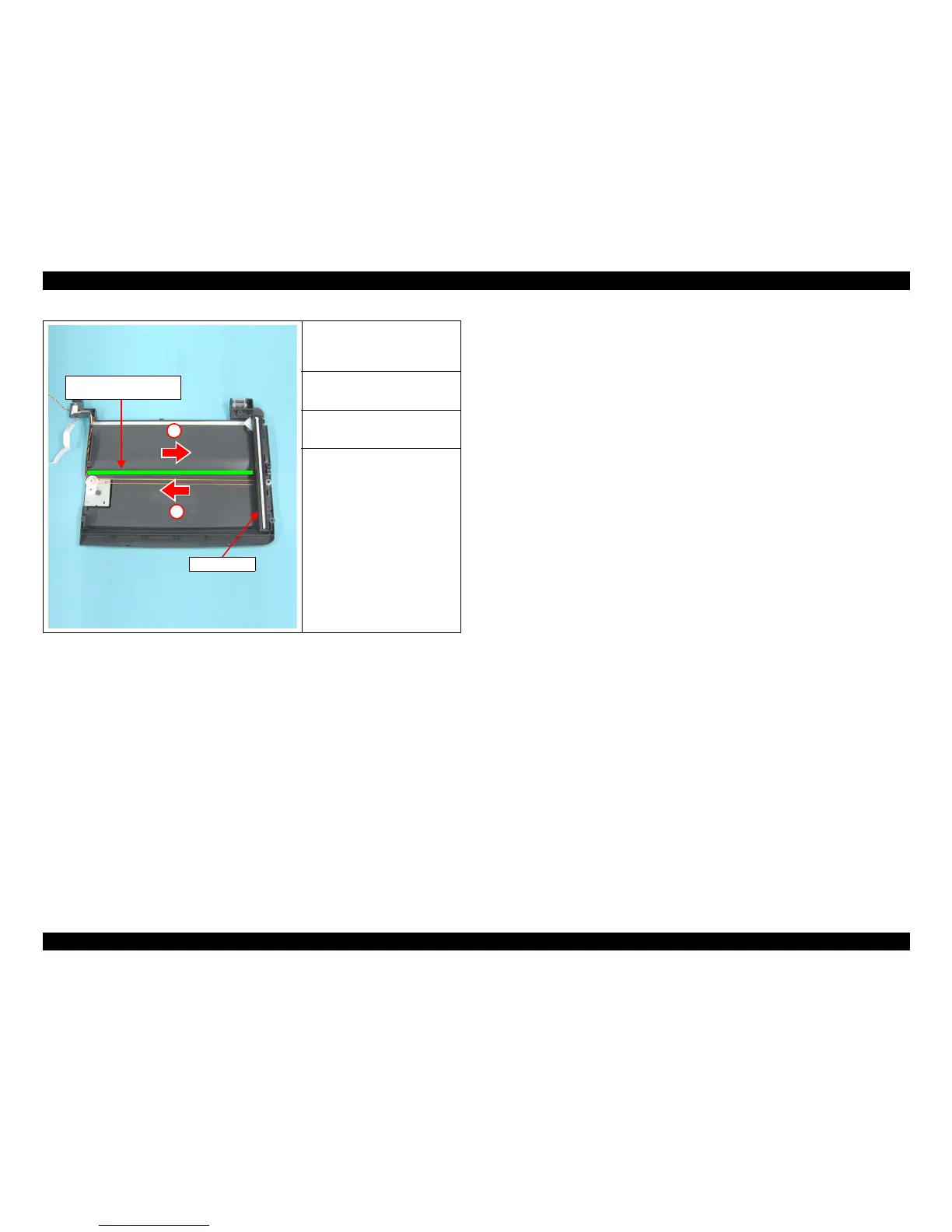

Figure 6-9. Lubrication on the Guide Rail of the Lower Scanner Housing
<Lubrication Point>
On the surface of the Guide Rail
of the Lower Scanner Housing.
<Lubrication Type>
G-45
<Lubrication Amount>
Sufficient quantity
<Remarks>
 Use a brush to apply G-45.
 Follow the procedures below.
1. Move the CIS Assy to the right
and apply grease on the rail.
2. Move the CIS Assy to the left
and apply grease on the rail.
3. If the CIS Assy is
contaminated with grease,
wipe off the grease with a
cloth.
1
2
Guide Rail of Lower
Scanner Housing
CIS Assy

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
