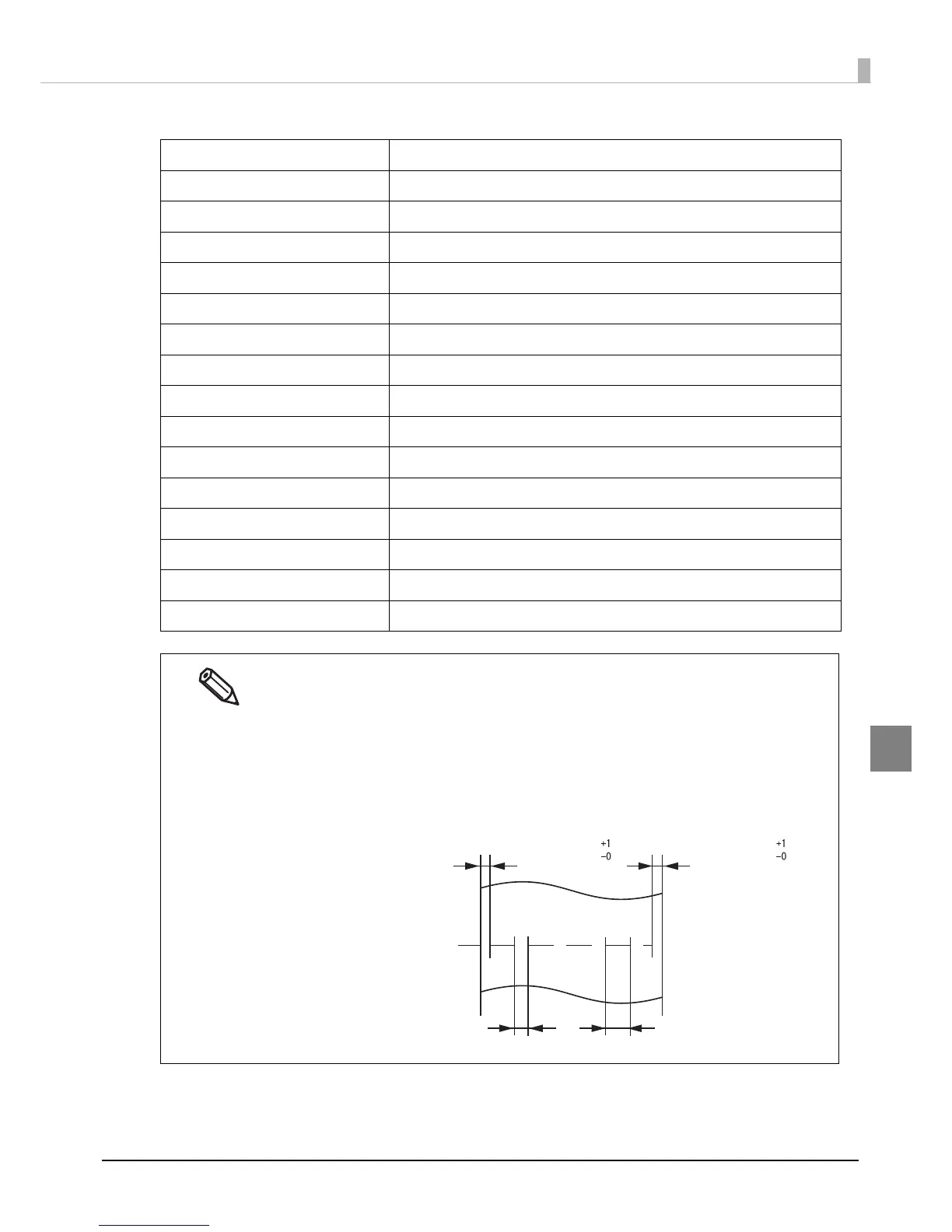

Appendix
Media type Plain label / Matte label
Media source Fanfold paper
Backing paper width 50 to 112 mm {1.97 to 4.41"}
Label width 46 to 108 mm {1.81 to 4.25"}
Label length 25.4 to 301.8 mm {1 to 11.88"}
Gap between labels 3 to 6 mm {0.12 to 0.24"}
Left and right outer edges 2 mm 0.5 mm {0.08 0.020"}
Label edge R 1.5 mm {0.06"} or less
Width of a black mark 28 mm {1.10"} or more from paper edge
Length of a black mark 5 mm {0.20"} or more
Black mark position Right edge of back of paper, when feed edge is at top
Gaps between black marks 28.4 to 304.8 mm {1.12 to 12.0"}
Paper thickness 0.161 to 0.164 mm {0.006 to 0.006"} (reference value)
Perforated line pitch 203.2 to 304.8 mm {8 to 12"}
Form of perforated line 1 mm {0.039"} uncut, 5 mm {0.20"} cut
Number of folds 750 or less
Do not use the paper with a hole or cutout.
Autocutting on the perforated lines may generate minute paper dust, causing machine prob-
lems. Also, autocutting ahead of the perforated line may cause problems when feeding
paper. Therefore, autocutting must be performed 0.5 mm to 1 mm {0.02 to 0.039"} behind
the perforated line.
Therefore, set the black mark position 2 mm {0.08"} or more from the perforation.
For the black mark position of the die-cut label paper, match the label edge to the black
mark edge.
The perforations on both sides of the paper shall be uncut.
