APPENDIX D: ADJUSTING THE PAPER ROLL NEAR-END SENSOR
LOCATION
The remaining detectable amount of paper on the roll paper varies with the inside and outside
diameters of the paper core. The minimum detectable amount of paper on the roll paper can be set
using the following method:
1) The inside diameter of the paper spool should be 12mm {0.47"} and the outside diameter of the
paper spool should be 18mm {0.71"}. Specified thermal paper should be used.
2) Loosen the adjusting screw that holds the paper near-end sensor and set the top of the
positioning plate to the appropriate adjustment value and tighten the adjusting screw.
Adjust the positioning plate to #1 if the outside diameter of a roll paper to be used is 18mm.
Adjust the positioning plate to #2 if the outside diameter of a roll paper to be used is more than
18 mm.
Table D.1 Adjustment Positions
Adjustment Position Number
Specified Thermal Paper
Dimension of A
#1 Approximately 23 mm {0.97"}
#2 Approximately 27 mm {1.06"}

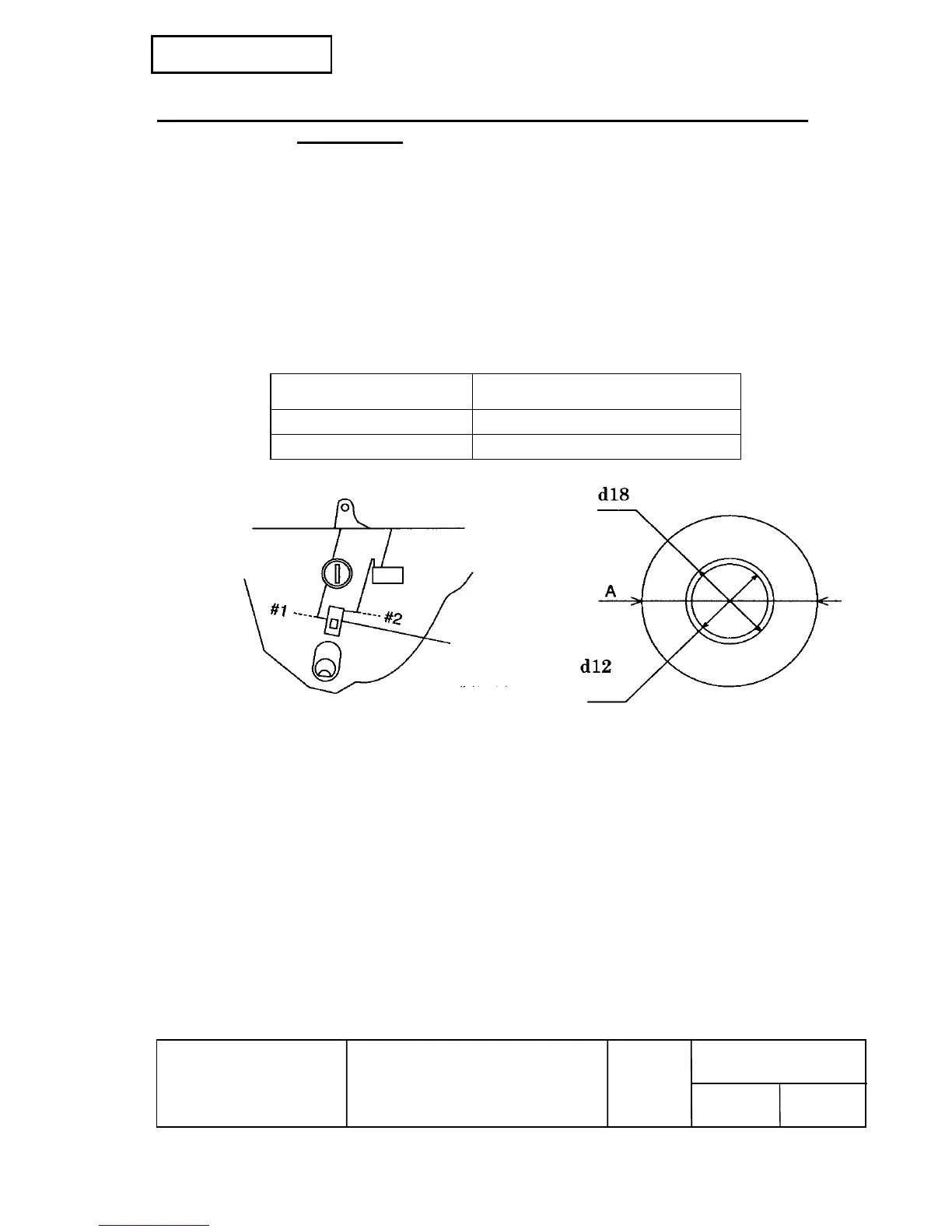

Figure D.1 Near-end Adjusting Position
NOTES: 1. Since dimension A in the table is a calculated value, there may be some variations
depending on the printer.
2. Be sure that the adjustable slider operates smoothly after you finish the adjustment.
Adjustment
position

Epson TM-T81 Specifications

General

Print Method	Thermal line printing
Autocutter	Yes
Interface	USB, Ethernet
Dimensions	140 mm (W) x 199 mm (D) x 146 mm (H)
Power Supply	AC 100 V - 240 V, 50 Hz - 60 Hz
Paper Width	79.5 ±0.5 mm
