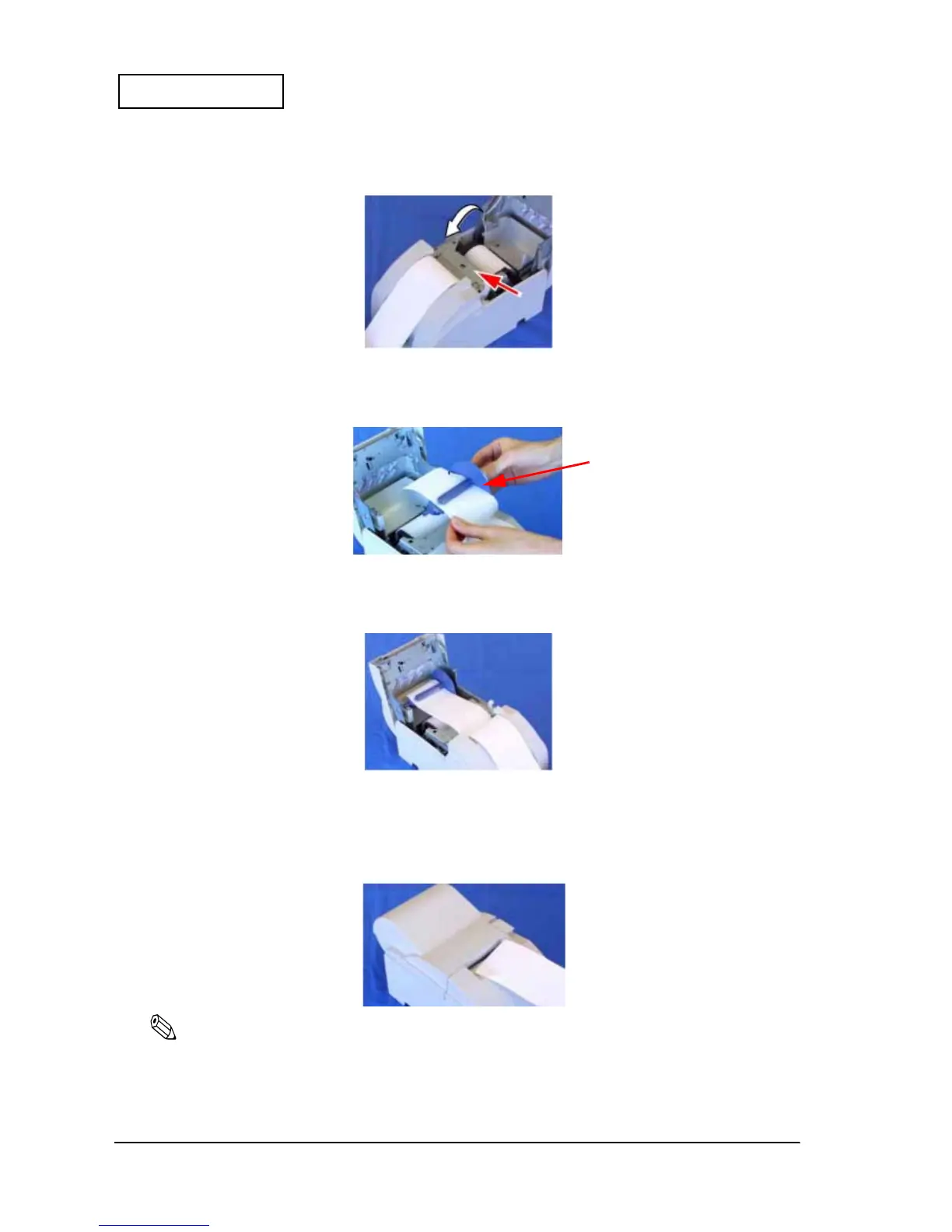

7. Close the unit, as shown below.
8. Insert the end of the bottom layer of paper (journal paper) into the paper take-up flange, as
shown below.
9. Insert the paper take-up flange into the printer. Be sure that the paper is aligned with the
flange, as shown.
10. Feed the paper with the FEED button so that the paper is taken up by the flange.
11. Close the roll paper cover and tear off the roll paper with the manual cutter, as shown
below.
Note:
Do not open the roll paper cover during printing or paper feeding.
When using the printer, be sure to cut the roll paper with the manual cutter after paper feeding is
complete.
Take-up flange

Epson TM-U220 Series Specifications

General

Print Method	9-pin, serial impact dot matrix
Autocutter	Partial cut
Weight	Approx. 2.5 kg
Paper Thickness	0.06 to 0.085 mm
Operating Temperature	5 to 45 °C
Interface	RS-232, Bi-directional parallel, USB, Ethernet
Number of Columns	42 columns
Data Buffer	4 KB
Character Set	95 Alphanumeric, 128 x 12 Graphic
Power Supply	AC adapter
Operating Humidity	10% to 80% RH (non-condensing)
Print Speed	4.7 lines per second (at 40 columns, 16 dpi)
Paper Width	76 mm / 69.5 mm / 57.5 mm ± 0.5 mm
Copy Capability	Original + 2 copies
