Epson TM-U220 Series Service Manual

4-18 Disassembly and Assembly Rev. B
Confidential

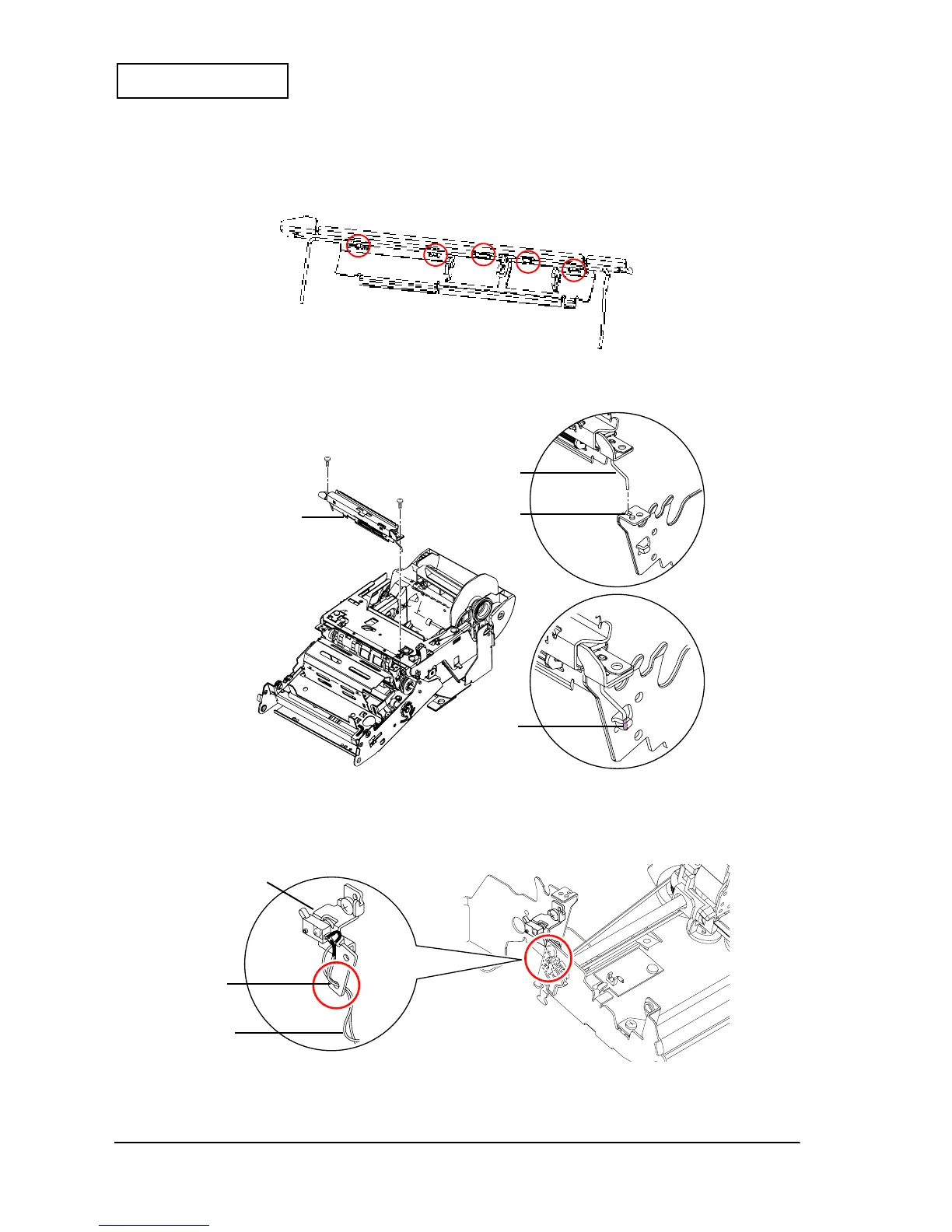

Attaching the Paper Hold Spring
Attaching the Fixed Blade Holder Assembly and Manual Cutter Holder
Attaching the Cover Open Assembly
Place the paper hold spring on the fixed blade holder, as shown.
Fixed blade holder assembly
Spring
Hook
Hole
Cover open assembly
When attaching the cover open assembly to the frame, be
sure that the wires are threaded through the hole.
Hole
Wires

Epson TM-U220 Series Specifications

General

Print Method	9-pin, serial impact dot matrix
Autocutter	Partial cut
Weight	Approx. 2.5 kg
Paper Thickness	0.06 to 0.085 mm
Operating Temperature	5 to 45 °C
Interface	RS-232, Bi-directional parallel, USB, Ethernet
Number of Columns	42 columns
Data Buffer	4 KB
Character Set	95 Alphanumeric, 128 x 12 Graphic
Power Supply	AC adapter
Operating Humidity	10% to 80% RH (non-condensing)
Print Speed	4.7 lines per second (at 40 columns, 16 dpi)
Paper Width	76 mm / 69.5 mm / 57.5 mm ± 0.5 mm
Copy Capability	Original + 2 copies
