Epson TM-U220 Series Service Manual

Rev. B Disassembly and Assembly 4-19
TM-U220 Type A Service Manual
Confidential

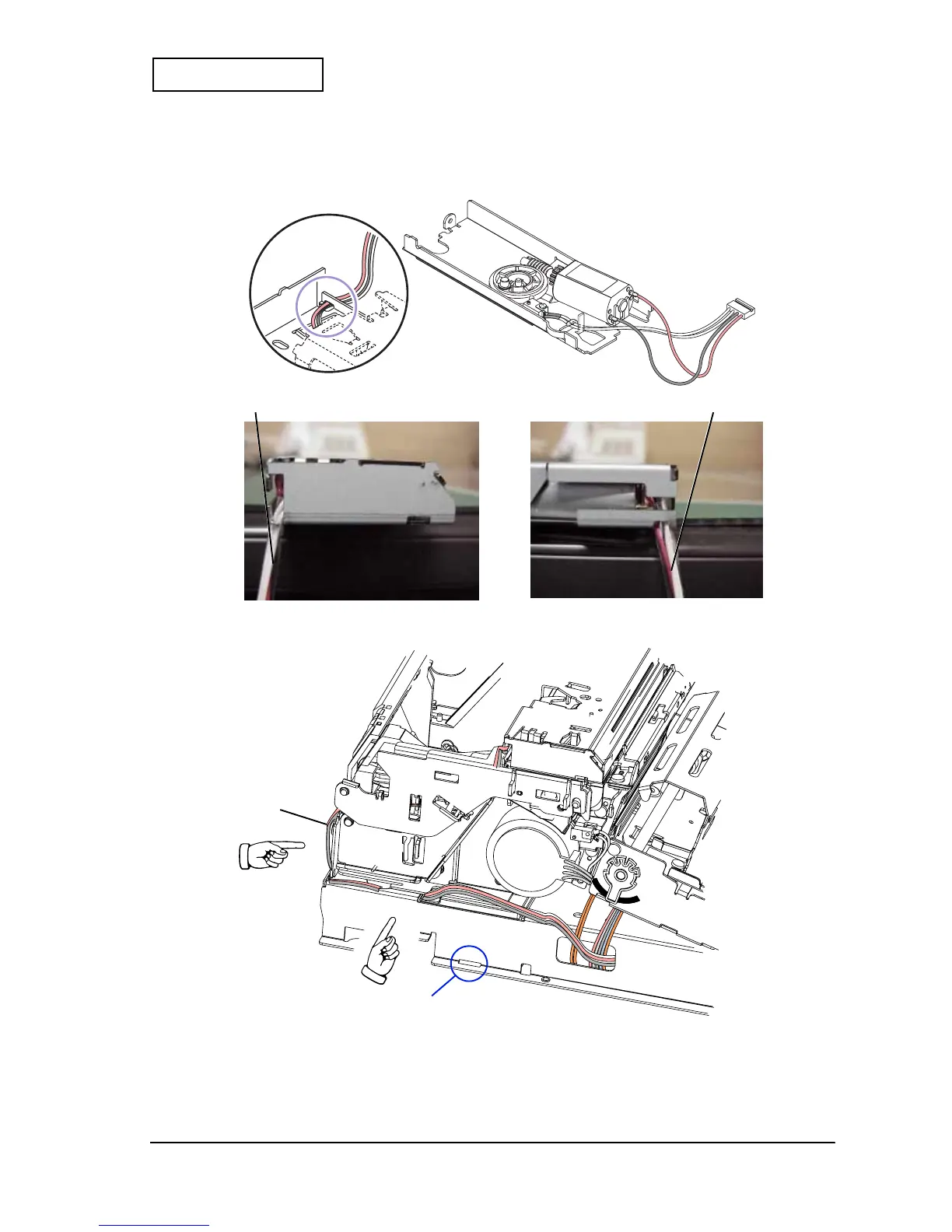

Leading the Autocutter Unit Wires
Be sure there is slack in the cable, as shown.
Guard tube and lead wires
Guard tube and lead wires
Autocutter unit cable
This is the point for attaching the top case hook. When
attaching the top case, be sure not to catch the
autocutter unit cable at this point.

Epson TM-U220 Series Specifications

General

Print Method	9-pin, serial impact dot matrix
Autocutter	Partial cut
Weight	Approx. 2.5 kg
Paper Thickness	0.06 to 0.085 mm
Operating Temperature	5 to 45 °C
Interface	RS-232, Bi-directional parallel, USB, Ethernet
Number of Columns	42 columns
Data Buffer	4 KB
Character Set	95 Alphanumeric, 128 x 12 Graphic
Power Supply	AC adapter
Operating Humidity	10% to 80% RH (non-condensing)
Print Speed	4.7 lines per second (at 40 columns, 16 dpi)
Paper Width	76 mm / 69.5 mm / 57.5 mm ± 0.5 mm
Copy Capability	Original + 2 copies
