Epson TM-U220 Series Service Manual

Rev. B Disassembly and Assembly 4-21
TM-U220 Type A Service Manual
Confidential

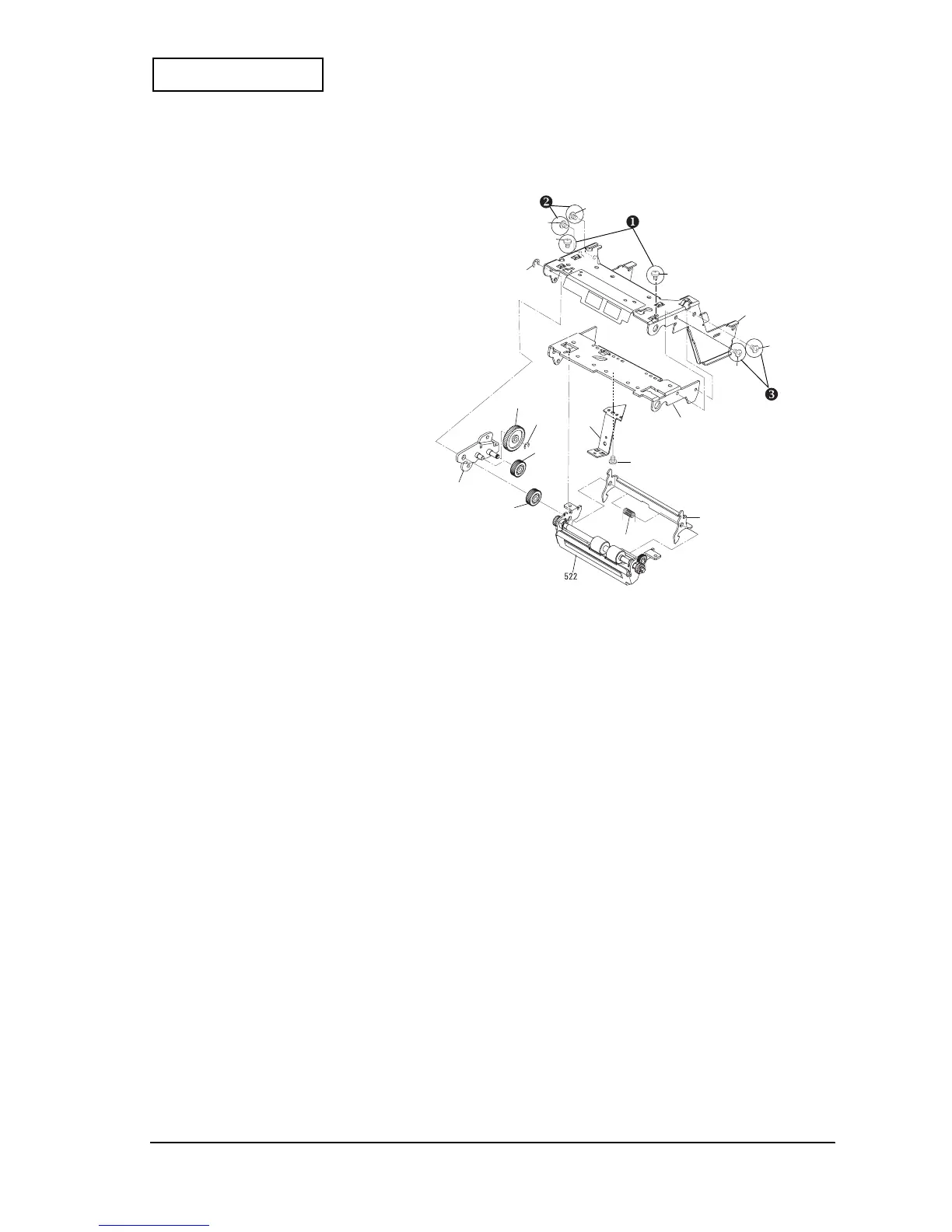

Attaching Platen Assembly 3 (522)
1061
510
1055
1056
S09
1058
E01
509
1057
1053
S10
S10
1125
S09
S10
S10
S09
E01
1. Attach platen assembly 3 (522) to the platen
frame (1053) with 2 screws (S09) from upper of the
platen rotation frame 2 (1125).
2. Attach platen assembly 3 (522) to the platen
frame (1053) with 2 screws (S10) from left side of
the platen rotation frame 2 (1125).
3. Attach platen assembly 3 (522) to the platen
frame (1053) with 2 screws (S10) from right side of
the platen rotation frame 2 (1125).

Epson TM-U220 Series Specifications

General

Print Method	9-pin, serial impact dot matrix
Autocutter	Partial cut
Weight	Approx. 2.5 kg
Paper Thickness	0.06 to 0.085 mm
Operating Temperature	5 to 45 °C
Interface	RS-232, Bi-directional parallel, USB, Ethernet
Number of Columns	42 columns
Data Buffer	4 KB
Character Set	95 Alphanumeric, 128 x 12 Graphic
Power Supply	AC adapter
Operating Humidity	10% to 80% RH (non-condensing)
Print Speed	4.7 lines per second (at 40 columns, 16 dpi)
Paper Width	76 mm / 69.5 mm / 57.5 mm ± 0.5 mm
Copy Capability	Original + 2 copies
