Adjustment Adjustment without Using Adjustment Program 144
Confidential
3. Load unused Ink Cartridges of all colors into the Carriage Unit.
4. Loosen the screw that secures the Parallelism Adjust Bushing.
5. Turn the Parallelism Adjust Bushing upward to align the frame edge and the
bottom of the Parallelism Adjust Bushing gear.

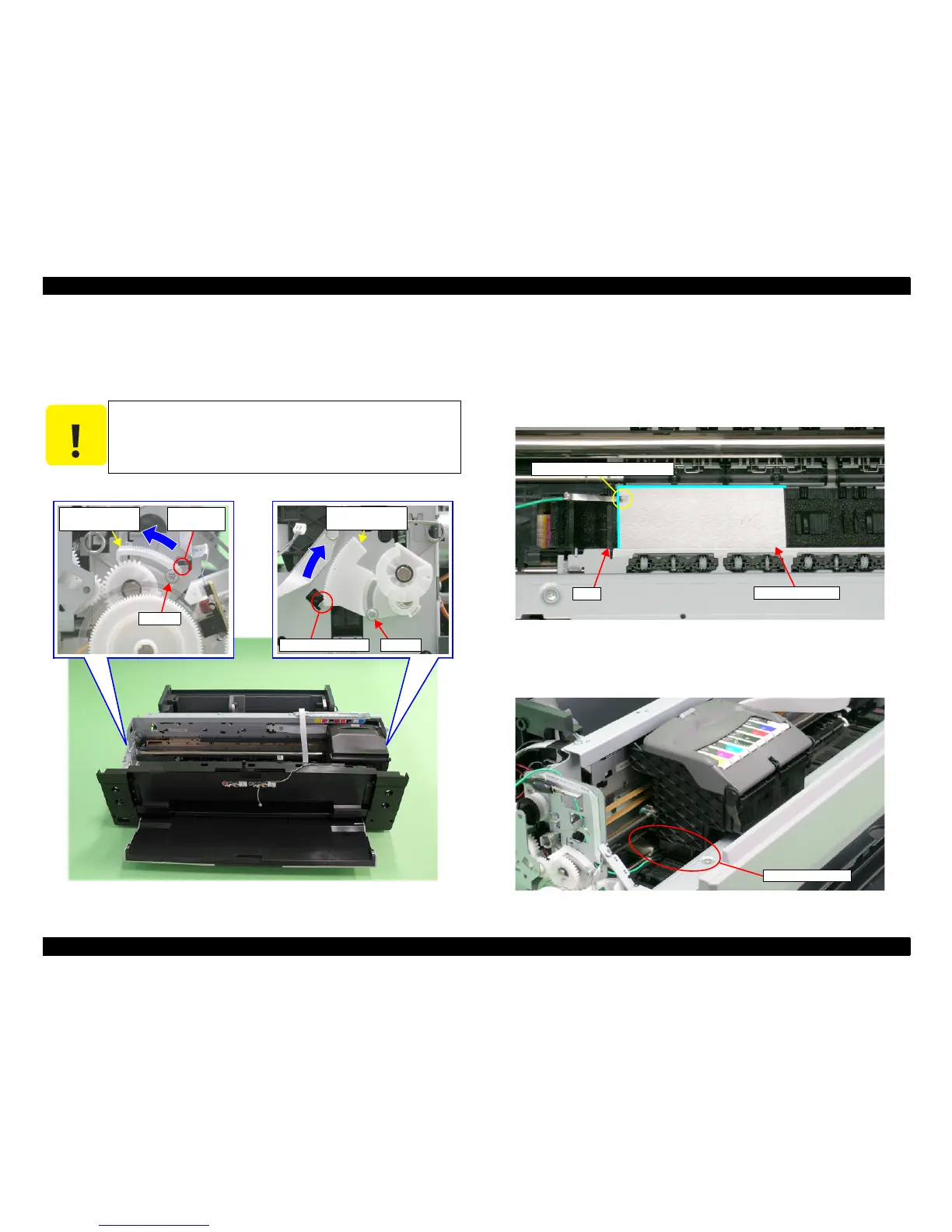

Figure 5-12. Setting the Parallelism Adjust Bushing
6. With its conductor connection portion up, set the Adjustment Gauge in the
specified position (on the left side of the Front Paper Guide).
 Setting Position
Rear direction: Align the rear end of the Gauge with the Driven Roller Shaft
of the Upper Paper Guide.
Left direction: Release the left end of the Gauge from the Tab on the Front
Paper Guide in Figure 5-13.
Figure 5-13. Setting the Adjustment Gauge
7. Move the Carriage Unit onto the Adjustment Gauge.
 Moving position
Align the left end of the Gauge with the left end of the Carriage Unit.
Figure 5-14. Moving the Carriage Unit
C A U T I O N
When the Parallelism Adjust Bushing is turned upwards, the frame
rises up and PG narrows. Make sure that the frame does not come
into contact with the Print Head when performing the following
procedure.
Parallelism Adjust
Bushing
Positioning Point
Screw
Positioning
Point
Screw
Parallelism Adjust
Bushing
Setting Position
Conductor Connection Point
Tab
Setting Position

Epson WorkForce 1100 Specifications

General

Color	Yes
Duplex printing	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	5
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Printing noise level	35 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Paper tray media types	Bond paper, Envelopes, Glossy paper, Photo paper, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A6
Borderless printing media sizes	4x6, 5x7, A4, Letter
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Bundled software	Web to Page and Epson Easy Photo Print
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.3 W
Power consumption (printing)	26 W
Certification	UL60950, CSA C22.2 No. 60950, EMI FCC Part 15 subpart B B, CAN / CSA – CEI / IEC CISPR 22 B
Market positioning	Business
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows 7, Windows Vista, Windows XP, Windows XP Professional x64, Windows 2000 Mac OS X 10.3.9, 10.4.11, 10.5.x and 10.6.x.
Print technology	Inkjet

Weight and Dimensions

Depth	797.6 mm
Width	617.2 mm
Height	416.6 mm
