EQUIL MTM-I - Page 21

Equil
TM
Insulin Patch Pump System

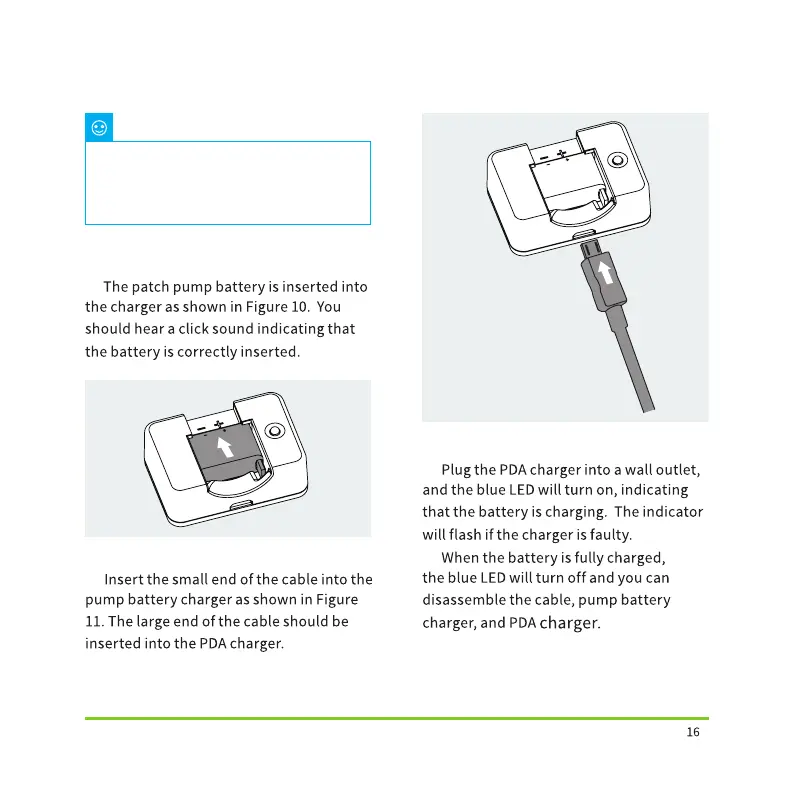

4.2.2 Patch Pump Battery Charger
1
Figure 10
2
Figure 11
3
4
Note
If the PDA battery charger does
not work, do not try to repair it.
Please contact your local supplier for
a replacement.
