EQUIL MTM-I - Filling the Reservoir

Equil
TM
Insulin Patch Pump System

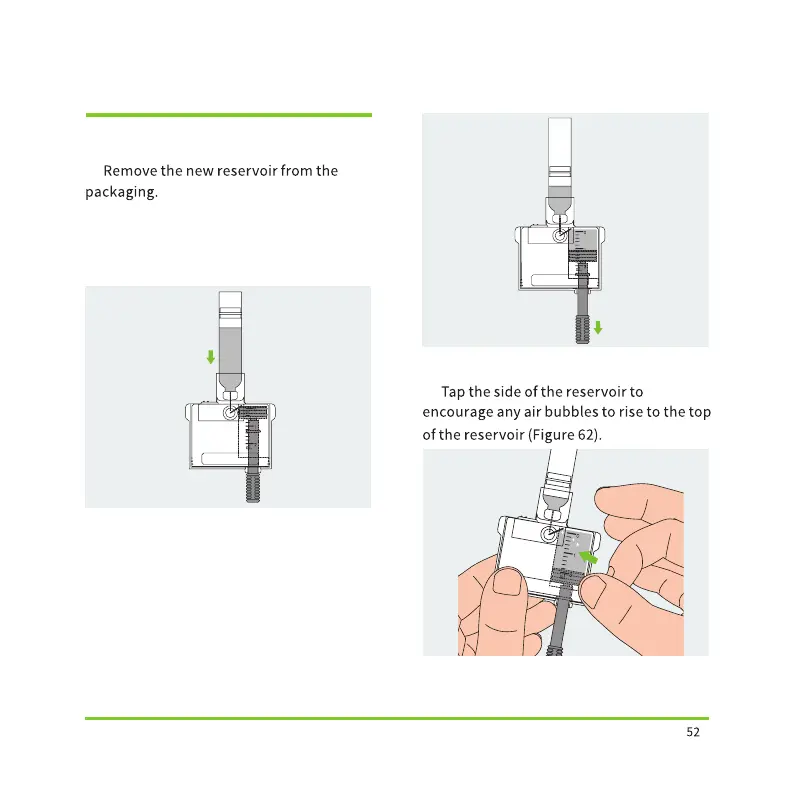

7.3 Filling the Reservoir
1
2
Figure 60
3
Figure 61
4
Figure 62
Use an alcohol wipe to clean the insulin
vial or cartridge and then attach it to the
fill adapter as in Figure 60.
With the insulin vial or cartridge on
top, slowly pull the pullrod and draw
insulin into the reservoir as in Figure 61.
