Insulin Patch Pump System
15
3.5mm Headphone Jack
Test Strip Ejector
Used to eject a blood glucose test strip.
See Section 10.5 .
Speaker
4.2 Charging the Batteries
The patch pump and PDA batteries
should be fully charged before use.
4.2.1 PDA Charger
1
The PDA battery can only be charged
while inside the PDA. The PDA may be
on or off during the charging process,
however, the battery will charge faster if
the PDA is off.
2
Insert the small end of the cable into the
PDA, and the large end of the cable into the

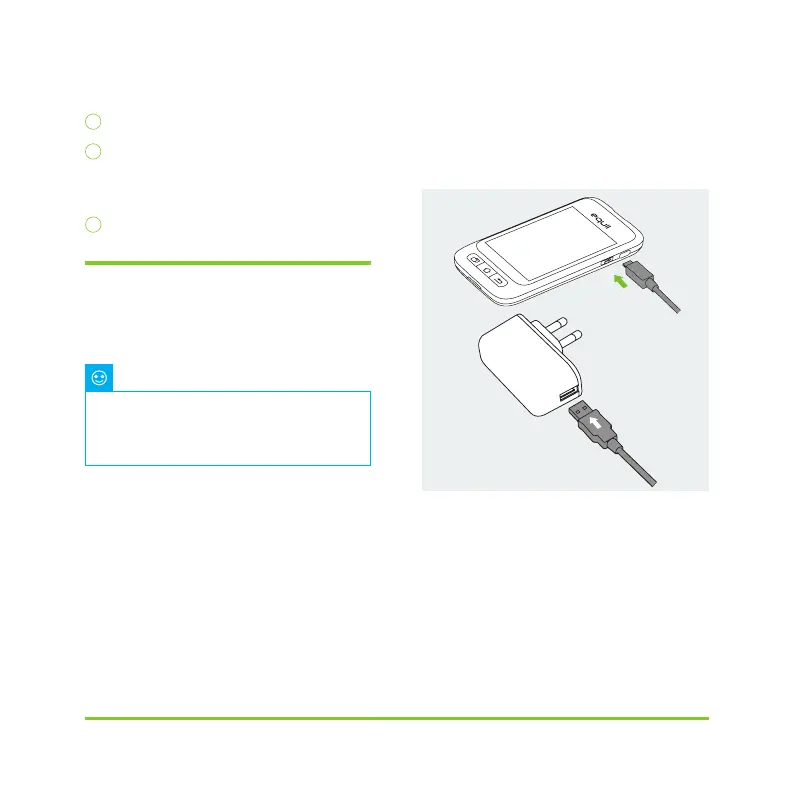

PDA charger as shown in Figure 9.
3
Connect the PDA charger to a power
outlet.
If the PDA is on, the battery icon will
change to the charging icon. If the PDA is
off, a charging animation will appear.
11
12
13
Use only batteries and chargers from
MicroTech Medical. Use of third party
accessories may cause unexpected
errors and will void your warranty.
Note
Figure 9
To Next Page
