EQUIL MTM-I - Page 72

Equil
TM
Insulin Patch Pump System
67

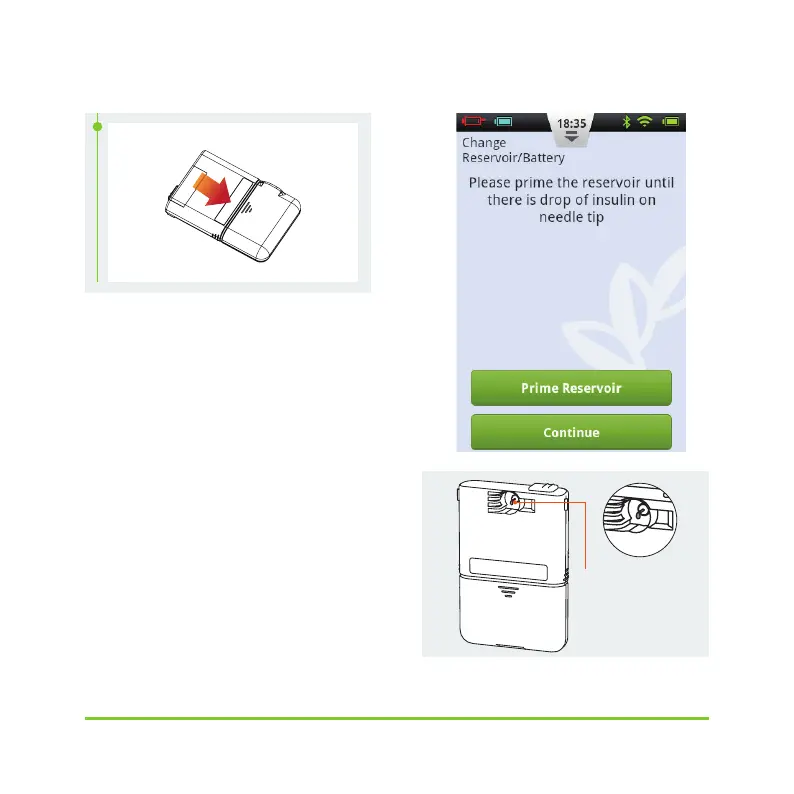

Figure 80
3
Holding the pump in the orientation
shown in Figure 82, press the Prime
Reservoir button (Figure 81). The plunger
will begin to move slowly. Continue to
press the button until you see a drop of
insulin on the needle tip (Figure 82). The
background of the "Next" button will be
enabled when it changes from grey to
green. Press Continue to go to the next
step.
Figure 81
Figure 82
Needle Tip
