SAW WELD DATA SETTING
VOLTAGE
CURRENT
TRAVEL SPEED
DIRECTION
START DATA►
STOP DATA►
REGULATION PAR.►
SETTING LIMITS►
MEASURE LIMITS►
POLARITY
30.0 A
500 A
30 cm/min
■





DC +
MEASURE QUIT
2.1.4 Measurements menu
MAIN MANU » MEASURE

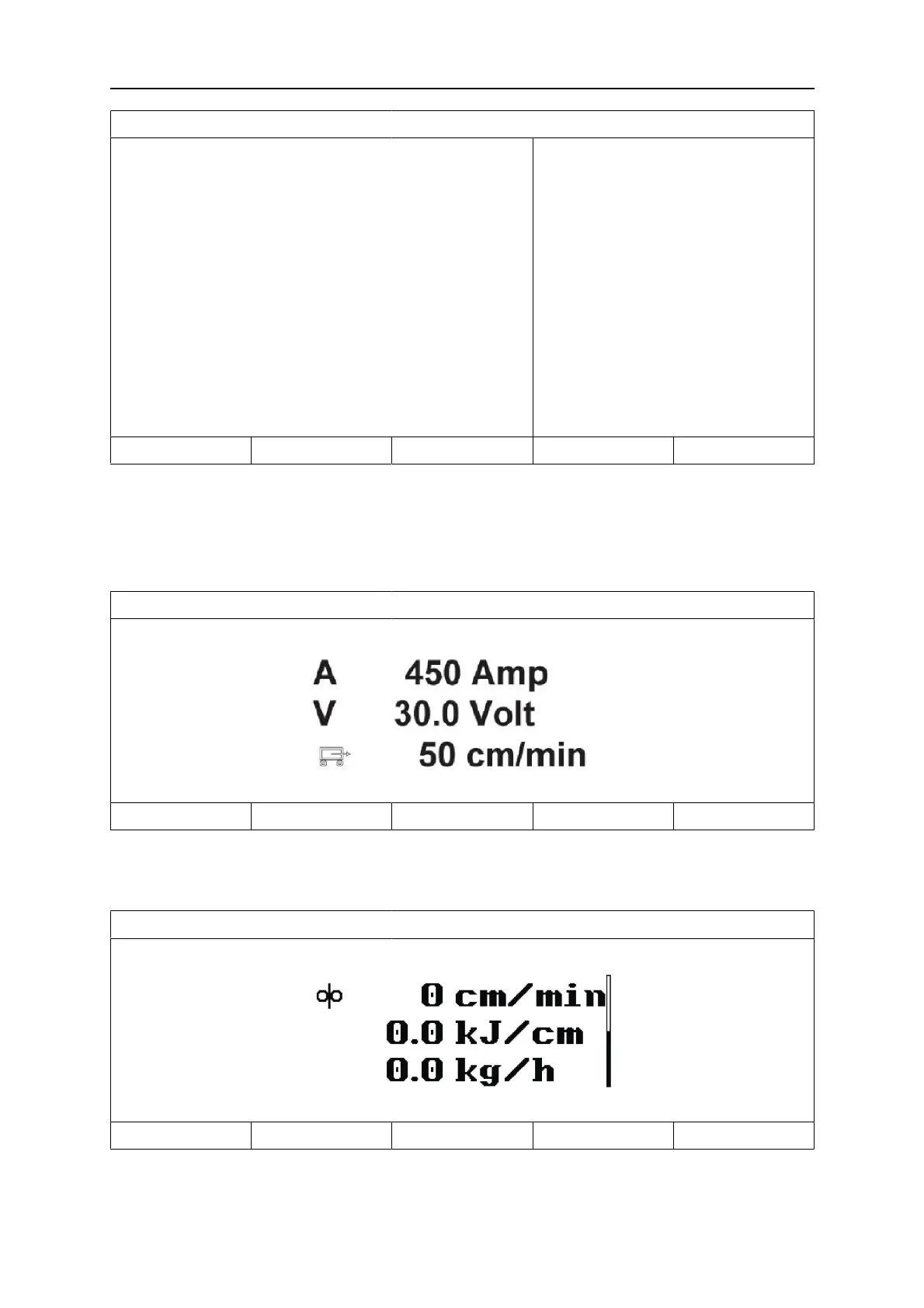

In MEASURE menu, you can view measured values for various welding parameters while
welding is in progress.
SAW: CA
EXT. AXIS DIR. SQUARE NONE SET VALUES 2ND FUNCT
• 450 Amp - Measured welding current
• 30.0 Volt - Measured arc voltage
• 50 cm/min - Measured travel speed
SAW: CA
NONE NONE ICE WF NONE 2ND FUNCT
• cm/min - Measured wire speed
• kJ/cm - Indicates energy per unit length, which is obtained using the values selected
for welding current, arc voltage and travel speed
