1 INTRODUCTION
0460 949 474
- 5 -
© ESAB AB 2021
1 INTRODUCTION
To benefit as much as possible from your welding equipment, we recommend that you read
this instruction manual.
For general information about operation, see the instruction manual for the control unit,
automatic welding machine, column and boom or power source.
The text presented in the display is available in the following languages: English, US English,
Swedish, Finnish, Norwegian, Danish, German, French, Italian, Dutch, Spanish, Portuguese,
Hungarian, Polish, Czech, Turkish, Chinese, Korean and Russian.
Instruction manuals in other languages can be downloaded from the Internet: www.esab.com

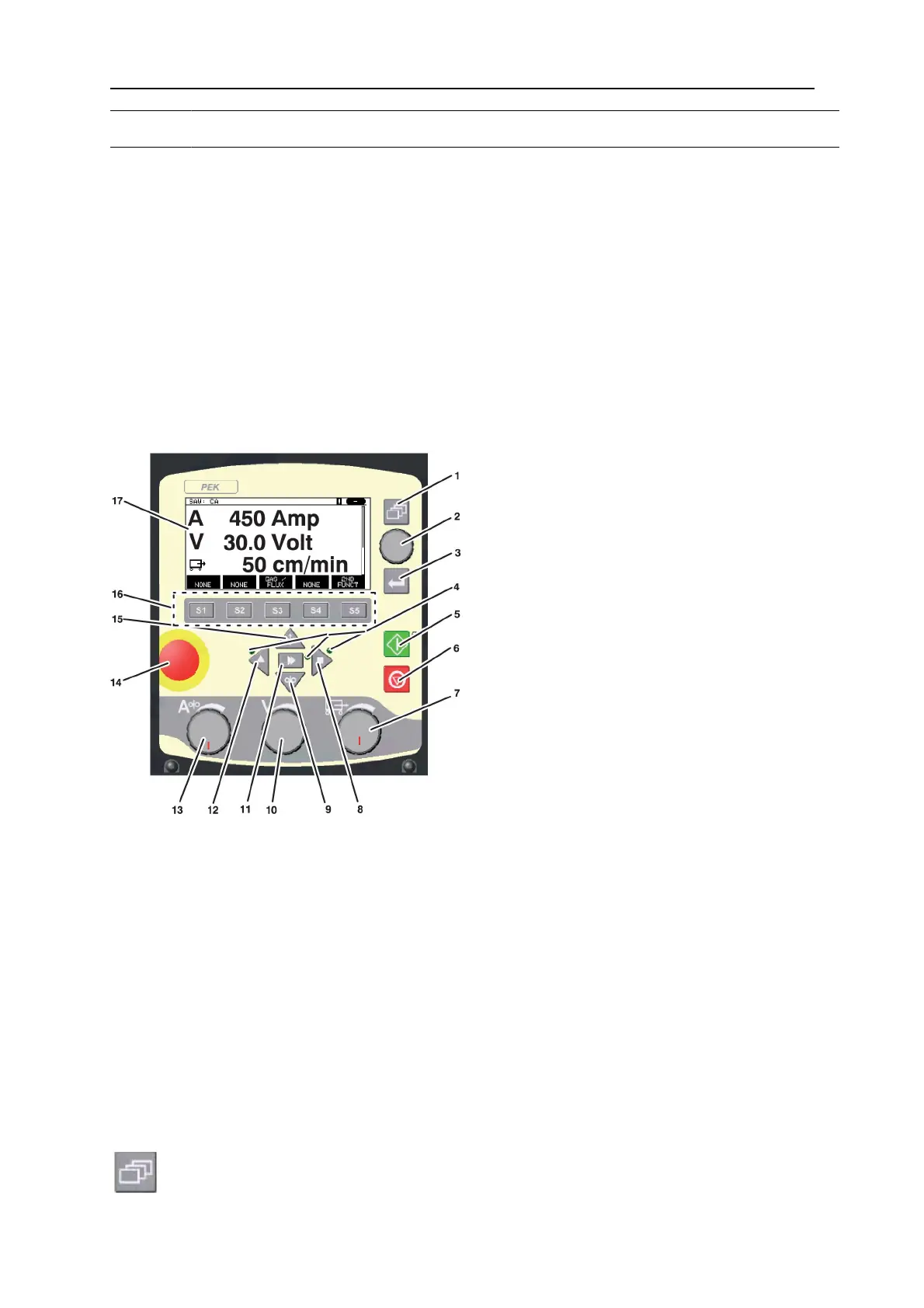

1.1 Control panel
1. Menu 10. Arc voltage / Setting knob
2. Positioning knob, for moving cursor 11. Fast motion
3. Enter 12. Manual travel motion
4. Green indication lamp, illuminates
when the function is active
13. Welding current / Wire feed speed /
Setting knob
5. Welding start 14. Emergency stop
6. Welding stop 15. Manual wire feed upwards
7. Travel speed / Setting knob 16. Soft keys
8. Manual travel motion 17. Display
9. Manual wire feed downwards
1.1.1 Keys and knobs
Menu
The Menu key always takes you back to the main menu in the relevant process.
