7 FUNCTION EXPLANATIONS
0460 949 474
- 31 -
© ESAB AB 2021

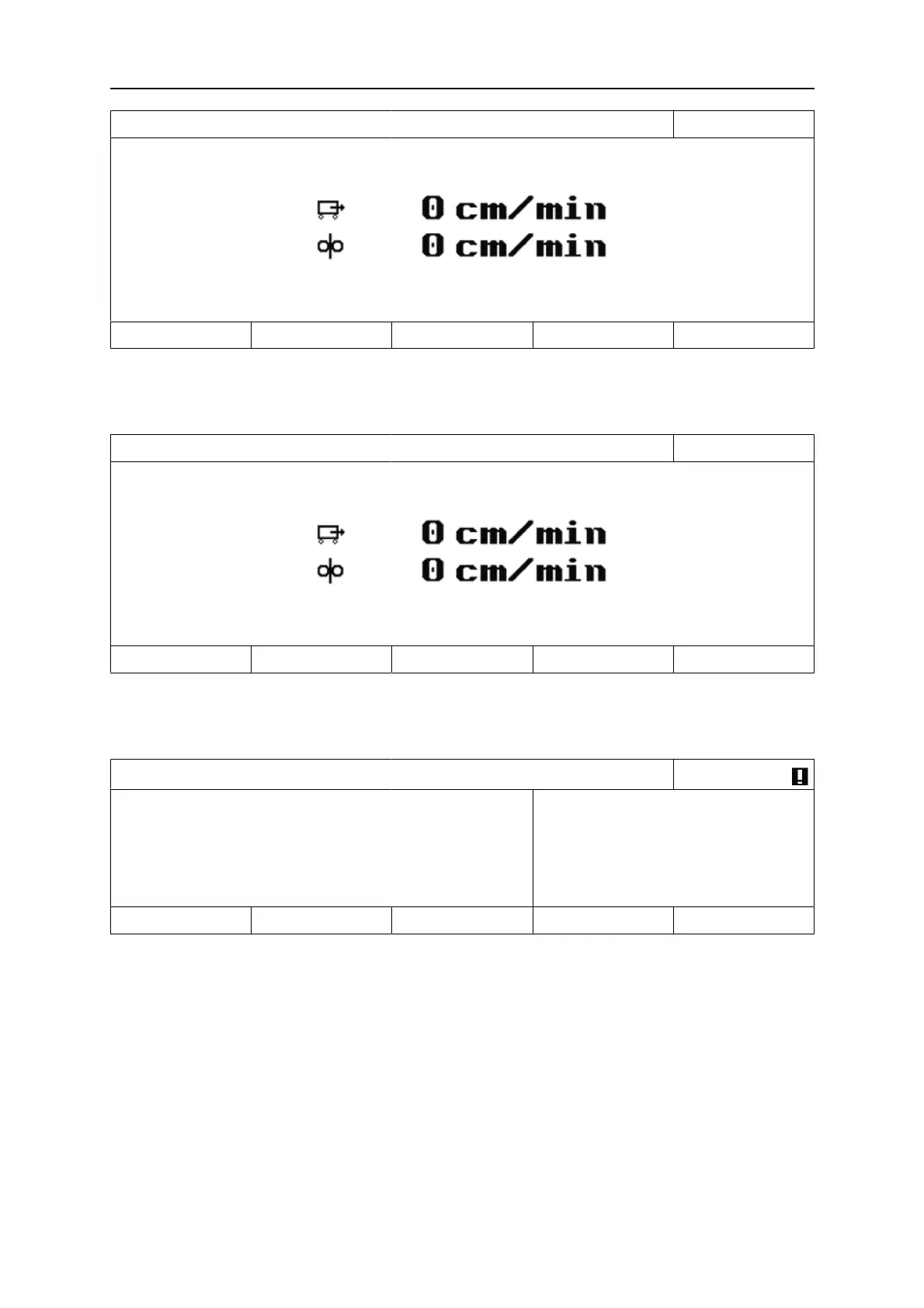

SAW: CW FE SOLID ■
NONE DIR. SQUARE NONE SET VALUES 2ND FUNCT
Remote and external axis
Remote via ATAS I/O and external axis for controlling a roller bed can also be used together
with motor control.
SAW_DC: DC+:EXT ▲
REMOTE IO DIR. SQUARE EXT. AXIS SET VALUES 2ND FUNCT
Machine configuration
With product code motor control you can set gearing as with free three axis on wire feed,
travel and external axis.
MACHINE CONFIGURATION
PRODUCT CODE
WIRE FEED AXIS►
TRAVEL AXIS►
EXTERNAL AXIS►
Motor control
QUIT
ATAS I/O
Digital inputs:
1. Start weld, X22.1.
2. Stop, X22.2.
3. Jog travel square direction, X22.3.
4. Jog travel triangle direction, X22.4.
5. Wire up direction, wire motor is not started when weld start is pressed, X23.1.
6. Wire down direction, wire motor is not started when weld start is pressed, X23.2.
7. High speed jog, X23.3.
8. Limit switch square, X23.4.
9. Limit switch triangle, X24.1.
10. Current flow, will start travel when direct start is used, when falling it will stop weld,
X24.2.
