9 CONFIGURATION MENU
0460 949 474
- 49 -
© ESAB AB 2021

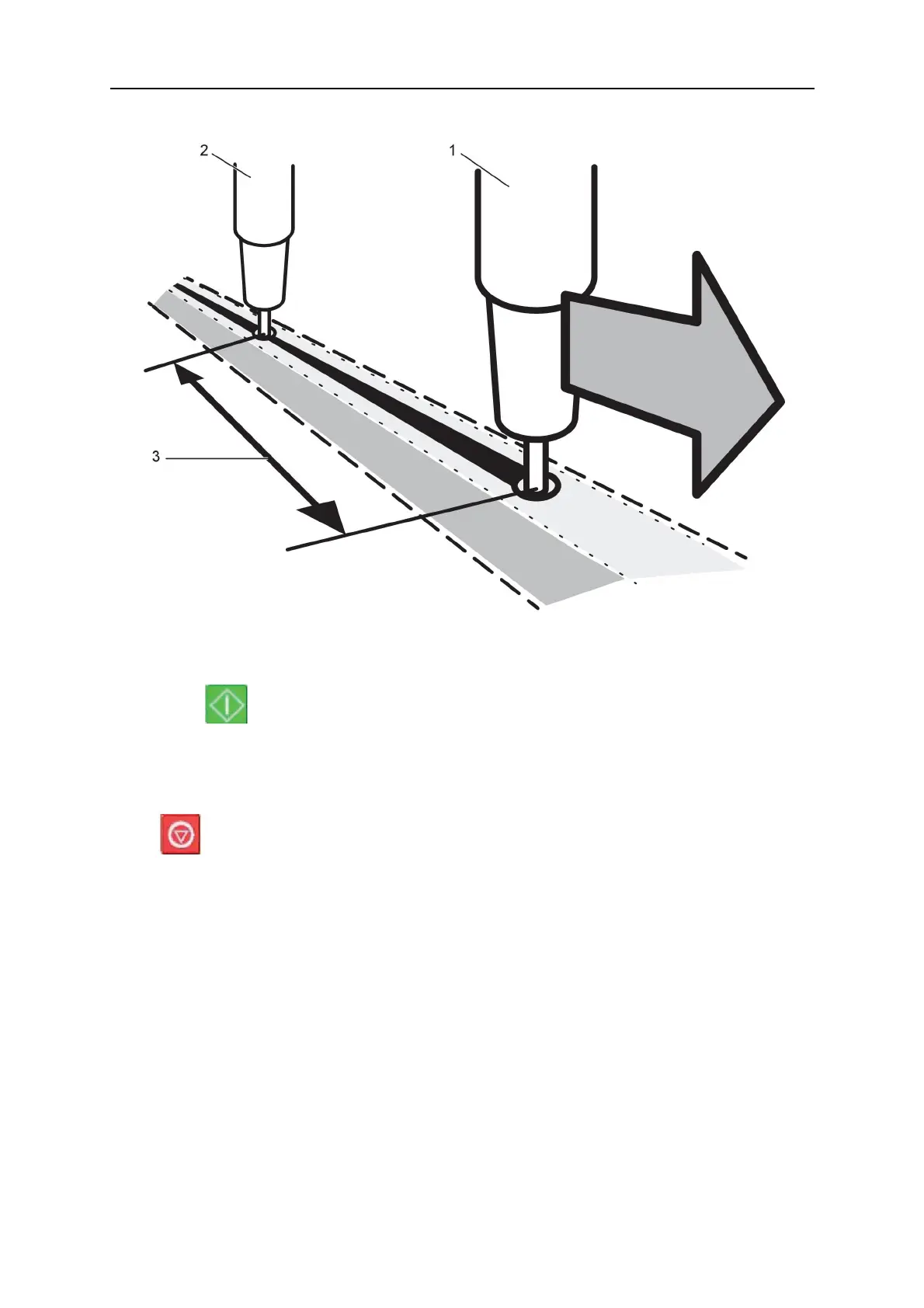

Example, I/O ON
1. Head, Welding head 1 (master) 3. WELD HEAD OFFSET
2. Tail, welding head 2 (slave)
Press Start, for welding head1.
• Welding head1 starts to weld.
• Welding head2 only starts welding when the start position for welding head1 has been
reached (the distance given in WELD HEAD OFFSET.
Press Stop, for welding head1.
• Welding head1 stops welding but continues travelling.
• Welding head2 stops welding once it reaches the point where equipment 1 stopped
welding (the distance given in WELD HEAD OFFSET.
• Welding is complete.
