ESAB EMP 215ic - Duty Cycle

ESAB EMS215IC/EMP215IC
3-10 OPERATION Manual 0463 413 001
3.10 Duty Cycle
The EMS 215ic and EMP 215ic have a maximum welding current output of 220A at 10% duty cycle. A self-
resetting thermostat will protect the power source if the duty cycle is exceeded.

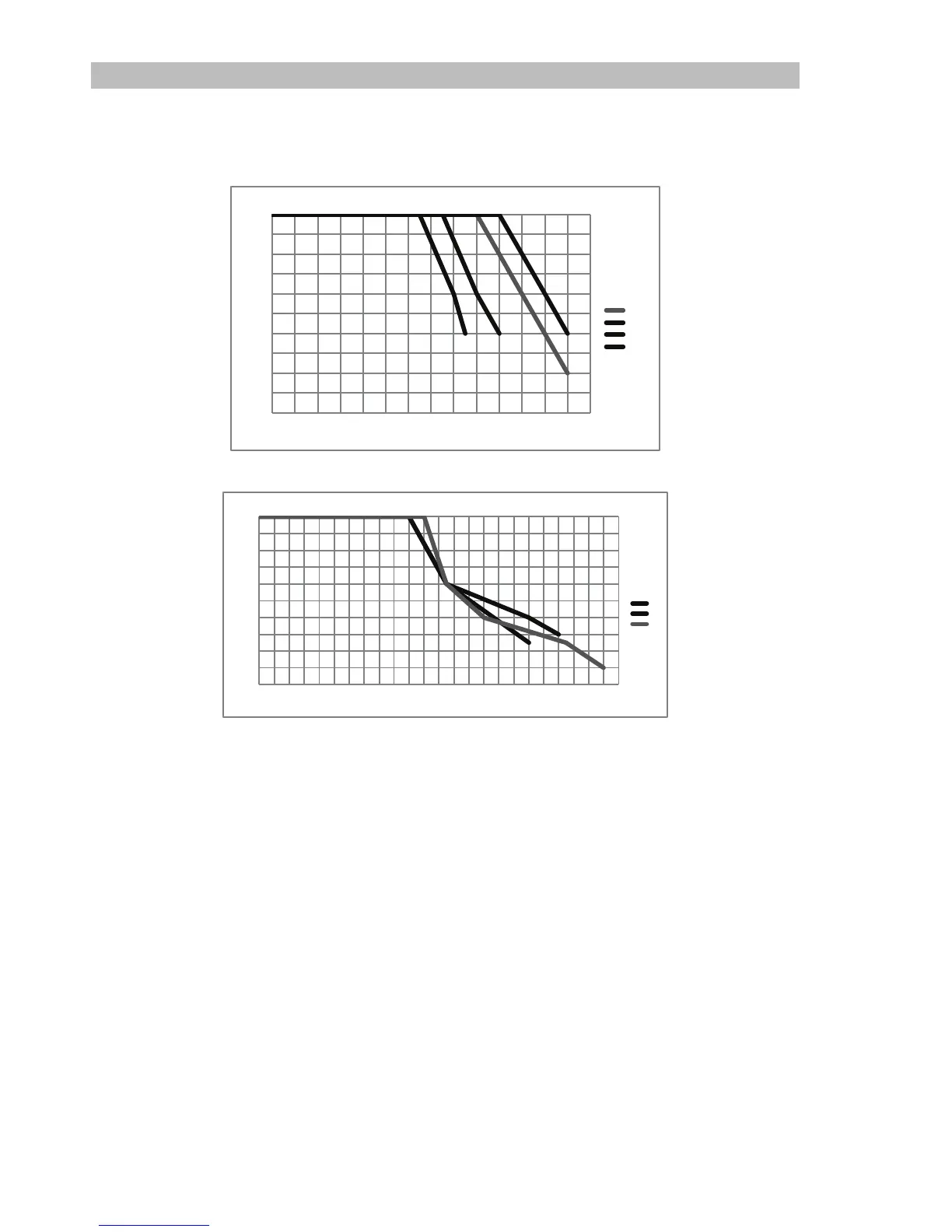

A dierent combination of duty cycle and welding current can be selected. Use the graphs below to determine
the correct duty cycle for a given welding current.
0
10
20
30
40
50
60
70
80
90
100
0 10 20 30 40 50 60 70 80 90 100 110 120 13 0 140
%
Welding Current (Amps)
Duty cycle on 120V AC
MIG@20A
MIG@15A
MM A
TIG
Welding current (AMPS)
0
10
20
30
40
50
60
70
80
90
100
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240
%
Welding Current (Amps)
Duty cycle on 230V AC
TIG
MMA
MIG
Welding current (AMPS)
