ESAB EMP 215ic - Internal Replacement Parts 1 CSA Systems

ESAB EMS215IC/EMP215IC
Manual 0463 413 001 REPLACEMENT PARTS 8-3

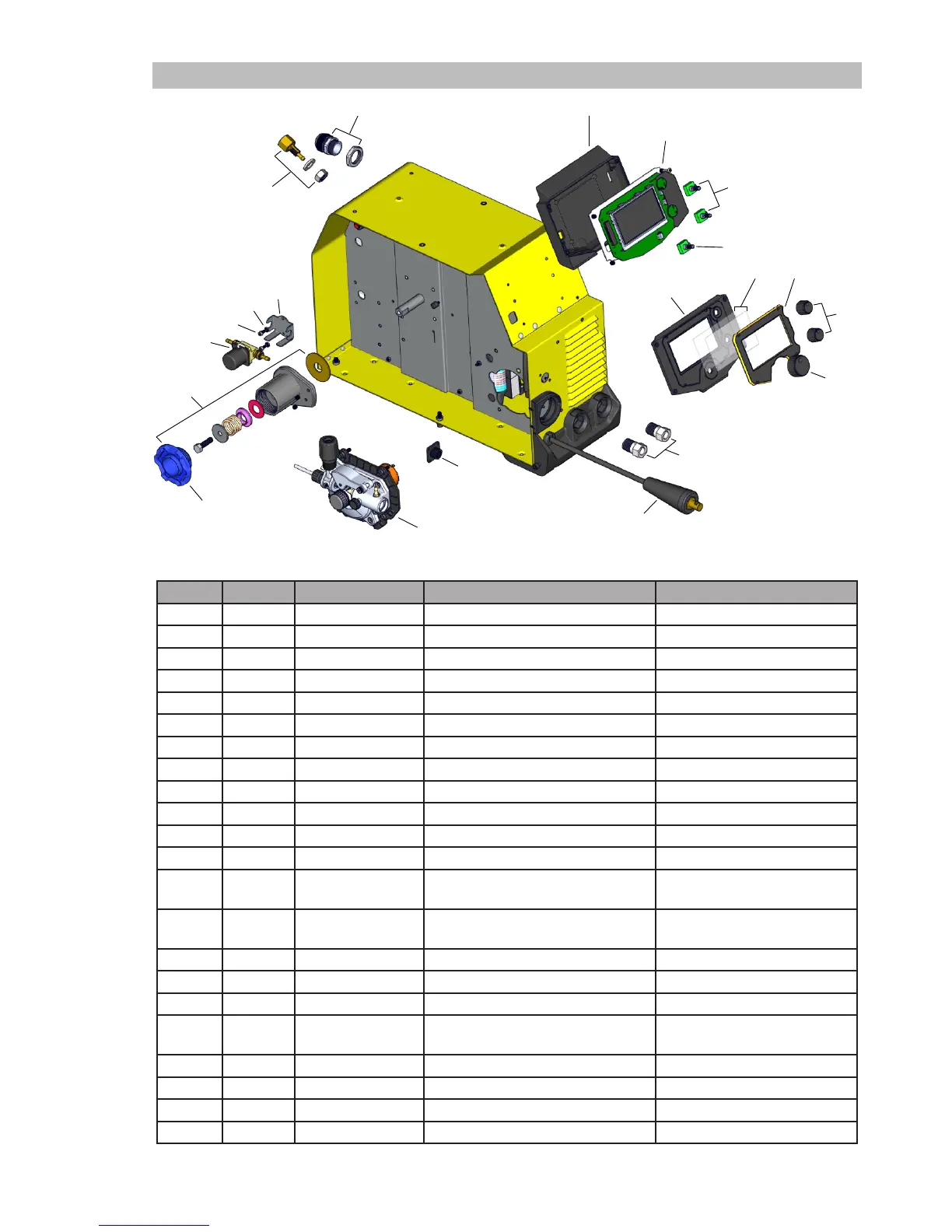

8.03 Internal Replacement Parts 1 CSA Systems
7
9
10
8
15
16
6
3
4
5
1
14
12
13
20
19
18
17
2
11
21
Item Qty Ordering no. Description Notes
1 1 0558 102 414 Female Inert Gas Fitting
2 1 0558 102 415 ON / OFF switch
3 1 TFT Display shell
4 2 0558 102 422 User Interface PCB PCB1 / (1AP1)
5 1 0558 102 423 Encoder with harness Encoder PCB 5,6
6 1 0558 102 424 Encoder with harness Encoder PCB 7
7 1 0558 102 425 Upper display bezel Including decal
8 1 0558 102 437 Lens assembly kit
9 2 0558 102 438 Lens bezel Including decal
10 1 0558 102 440 Small knob
11 1 0558 102 441 Large knob
12 1 0558 102 418 50mm female Dinse
13 1 0558 102 419 Polarity changeover cable
complete
14 1 0558 102 409 Remote connection outlet with
harness
8-pin connector
15 1 0558 102 408 Wire feeder mechanism Including motor and harness
16 1 0558 102 410 Wire Spool hub nut
17 2 0558 102 411 Wire Spool hub kit
18 1 0558 102 412 Solenoid assembly with hoses With gas valve, hose clamps
and hoses. SOL1 (10YV1)
19 2 Screw M4 × 10 mm
20 1 0558 102 414 Gas connector
21 1 0558 102 413 Bracket for solenoid valve
22 4 0558 102 442 Warning pinch-shock label Not included in illustration
