ESAB EMP 215ic - Component Location

ESAB EMS215IC/EMP215IC
5-8 POWER SUPPLY INTRODUCTION Manual 0463 413 001

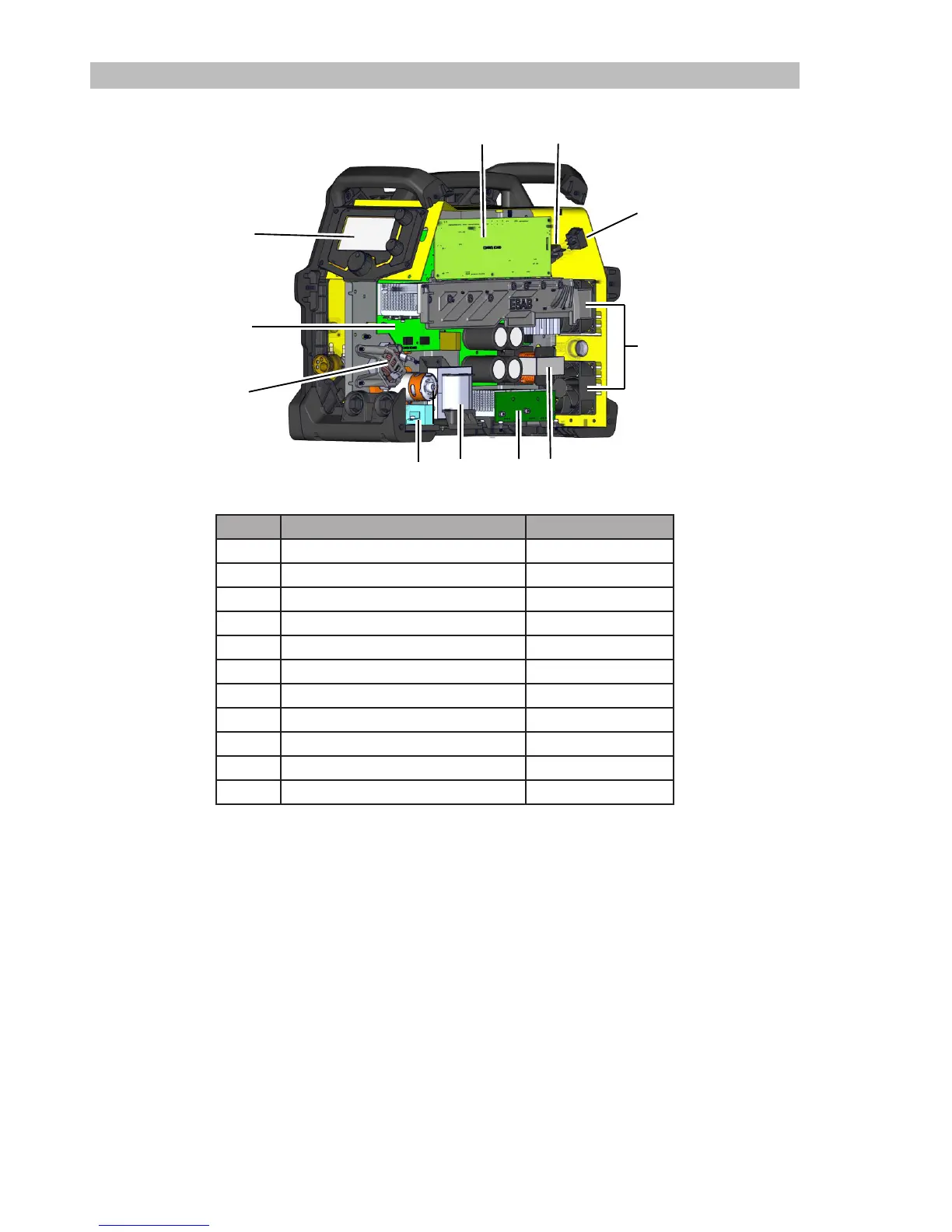

5.06 Component Location
1
2
3
4
5
6
7
8
9
10
7
11
Item # Description Designator
1 Control PCB PCB / (20AP1)
2 Circuit Breaker CB1
3 On / Off Switch SW 1
4 Fan 1 and Fan 2 M1 and M2
5 PFC Inductor L1
6 Output Diode PCB PCB4
7 Main Transformer T1
8 Current Sensor CS 1
9 Output Inductor L2
10 Power PCB PCB2 / (15AP1)
11 User Interface TFT Display PCB1 / (1AP1)
