WARNING
Read and follow safety information in Section 1 before proceeding. Follow
anti static precautions when handling any PCB (Printed Circuit Board).
WARNING
Buss voltage of 400 VDC will be present on the heatsinks of POWER PCB2
while unit is on. Wait 40 seconds after removing power before handling.
9.02 User Interface TFT Display Assembly Removal
Read and follow safety information in Section 1 before proceeding with
disassembly. Follow anti static precautions when handling any PCB (Printed Circuit Board).
Unplug the unit before beginning disassembly procedure.
NOTE!
There is a ground wire attached to the inside, bottom of the power-side cover..
Be careful not to pull on the wire when removing the cover.

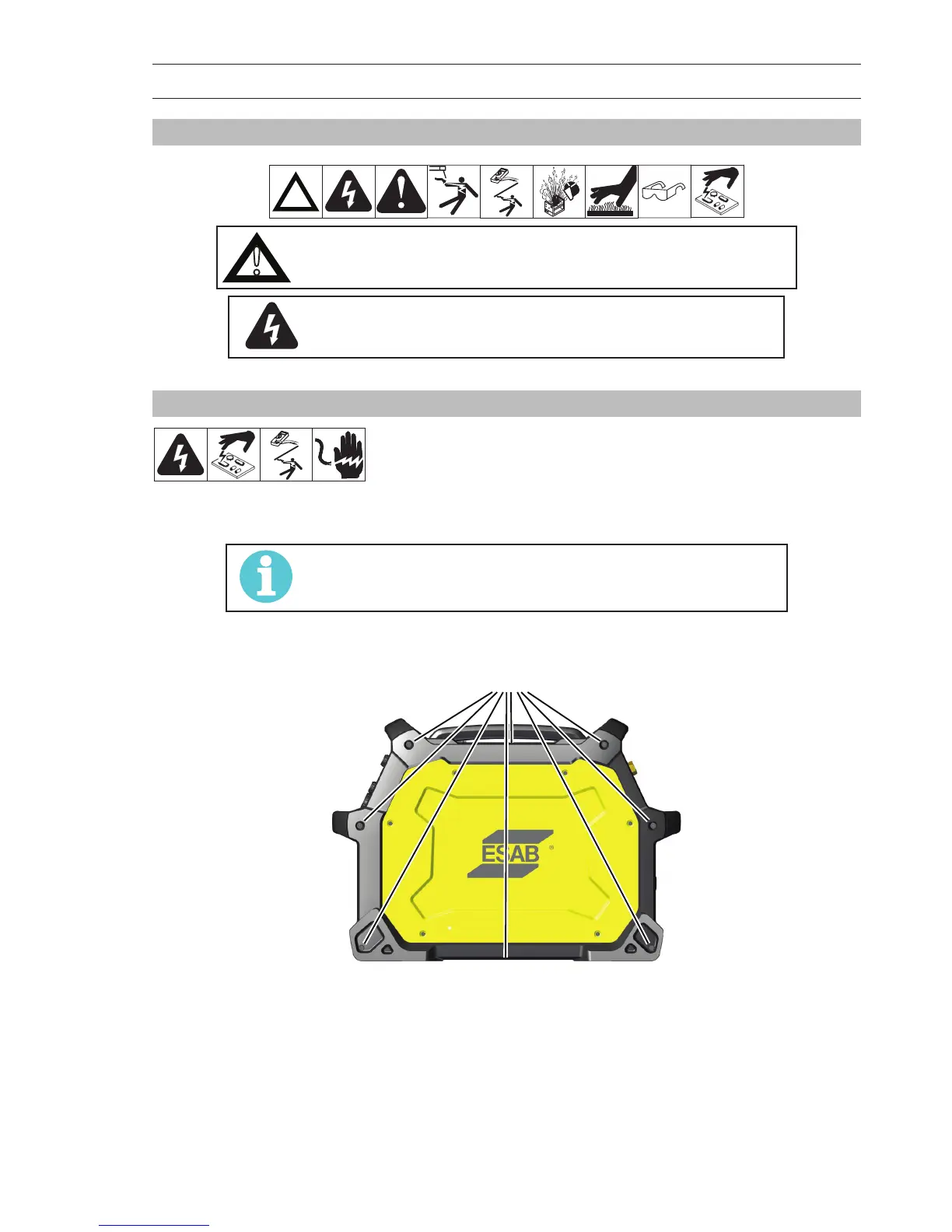

1. Remove eight (8) screws securing the power-side cover and frame to the power supply.
8
