ESAB EMP 215ic - 8.02. External Replacement Parts

ESAB EMS215IC/EMP215IC
8-2 REPLACEMENT PARTS Manual 0463 413 001

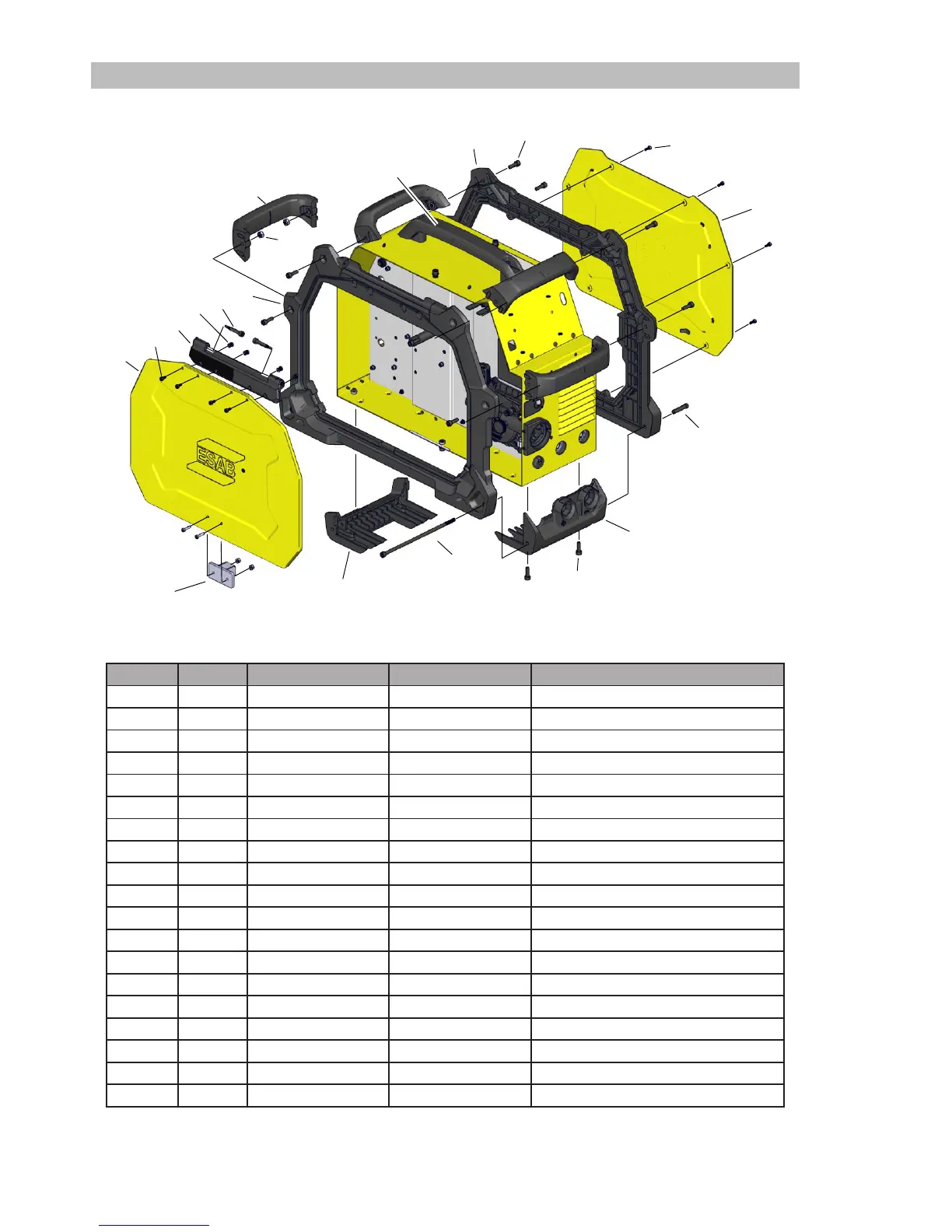

8.02. External Replacement Parts
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Item Qty Ordering no. Description Notes
1 1 0558 102 404 Side panel Left With ESAB logo and welding decal
2 1 Screw M4 × 8 mm
3 4 0558 102 406 Hinge
4 1 Nut M4 × 0.7 mm
5 1 0558 102 407 Hinge pin
6 1 0558 102 398 Side frame, Left
7 1 Nut M6 × 1 mm
8 1 0558 102 399 Handle
9 2 0558 102 400 Top handle
10 1 0558 102 397 Side frame, right
11 4 Screw M6 × 20 mm
12 4 Screw M4 × 10 mm
13 2 0558 102 401 Side panel, Right With ESAB logo
14 2 Female bolt M6
15 8 0558 102 402 Front foot With decals
16 6 Screw M6 × 20 mm
17 4 Screw M6 × 180 mm
18 2 0558 102 403 Rear foot
19 8 Roller Latch Assy.
Some screws, nuts or bolts may be found at local sources
