ESAB EMS215IC/EMP215IC
8-6 REPLACEMENT PARTS Manual 0463 413 001
10 1 0558 102 430 Output Inductor L2
11 1 0558 102 417 Current Sensor CS1 / (15AP3)

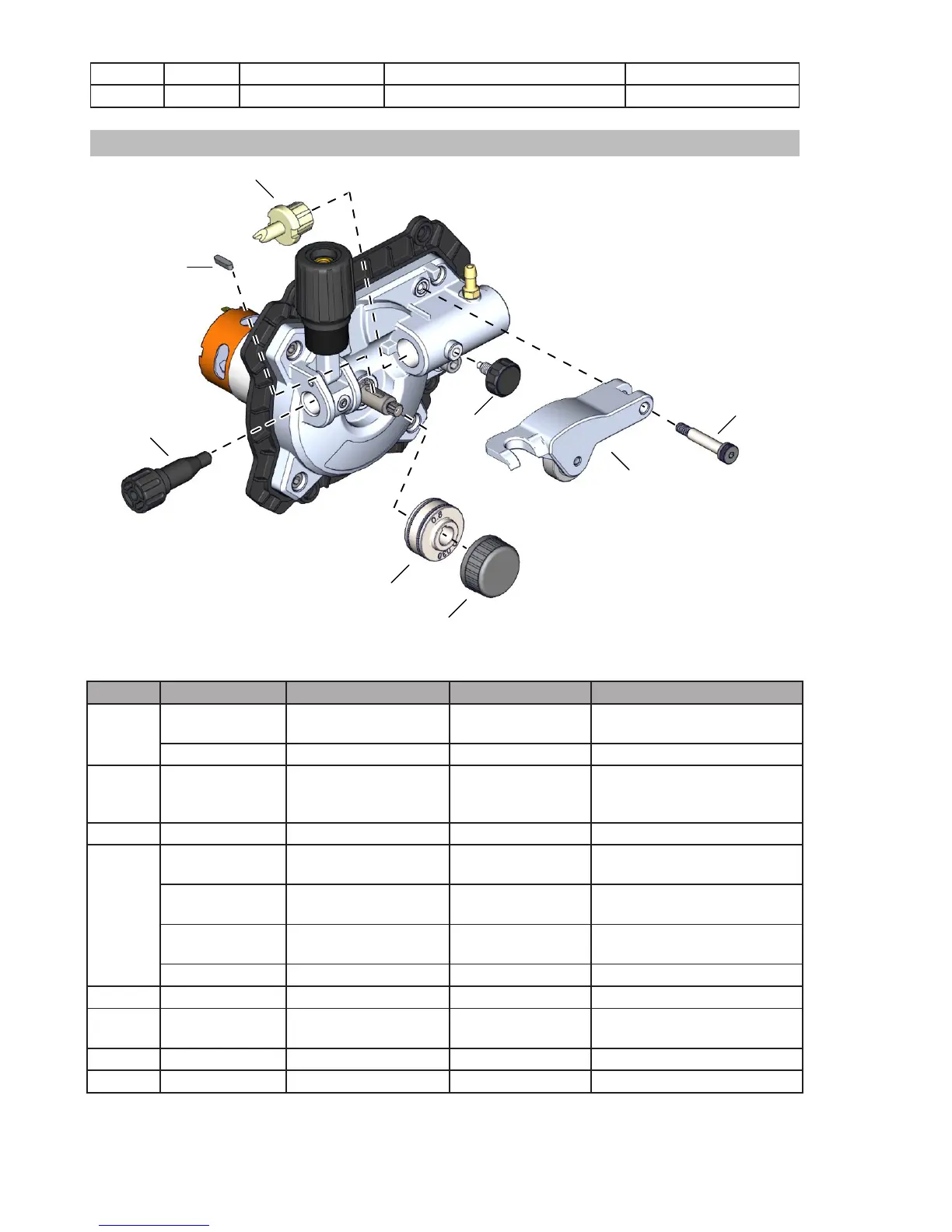

8.06 Wire Feeder Replacement Parts CSA Systems
6
4
8
3
7
5
1
2
Item Ordering no. Description Wire type Wire dimensions
1
0558 102 326 Wire outlet guide MS/SS/Flux Cored 0.030” / 0.035” / 0.045” (0.8
mm / 0.9 mm / 1.2 mm)
0558 102 327 Wire outlet guide MS/SS/Flux Cored 0.024” (0.6 mm)
2
0558 102 328 Wire inlet guide MS/SS/Flux Cored 0.024” / 0.030” / 0.035” /
0.045” (0.6 mm / 0.8 mm / 0.9
mm / 1.2 mm)
3 0558 102 334 Key-drive shaft N/A N/A
4
7977036 Feed roll “V” groove MS/SS 0.024” / 0.030” (0.6 mm / 0.8
mm)
W4014800 Feed roll “V” groove MS/SS 0.024” / 0.035” (0.6 mm / 0.9
mm)
7977732 Feed roll “V” knurled Flux Cored 0.030” / 0.035” (0.8 mm / 0.9
mm)
7044277 Feed roll "V" knurled Flux Cored 0.045" (1.1 mm)
5 0558 102 329 Locking knob N/A N/A
6
0558 102 331 Pressure arm complete
assembly
N/A N/A
7 0558 102 330 Screw N/A N/A
8 0558 102 332 MIG gun locking knob N/A N/A
