ESAB EMP 215ic - Internal Replacement Parts 2

ESAB EMS215IC/EMP215IC
Manual 0463 413 001 REPLACEMENT PARTS 8-5

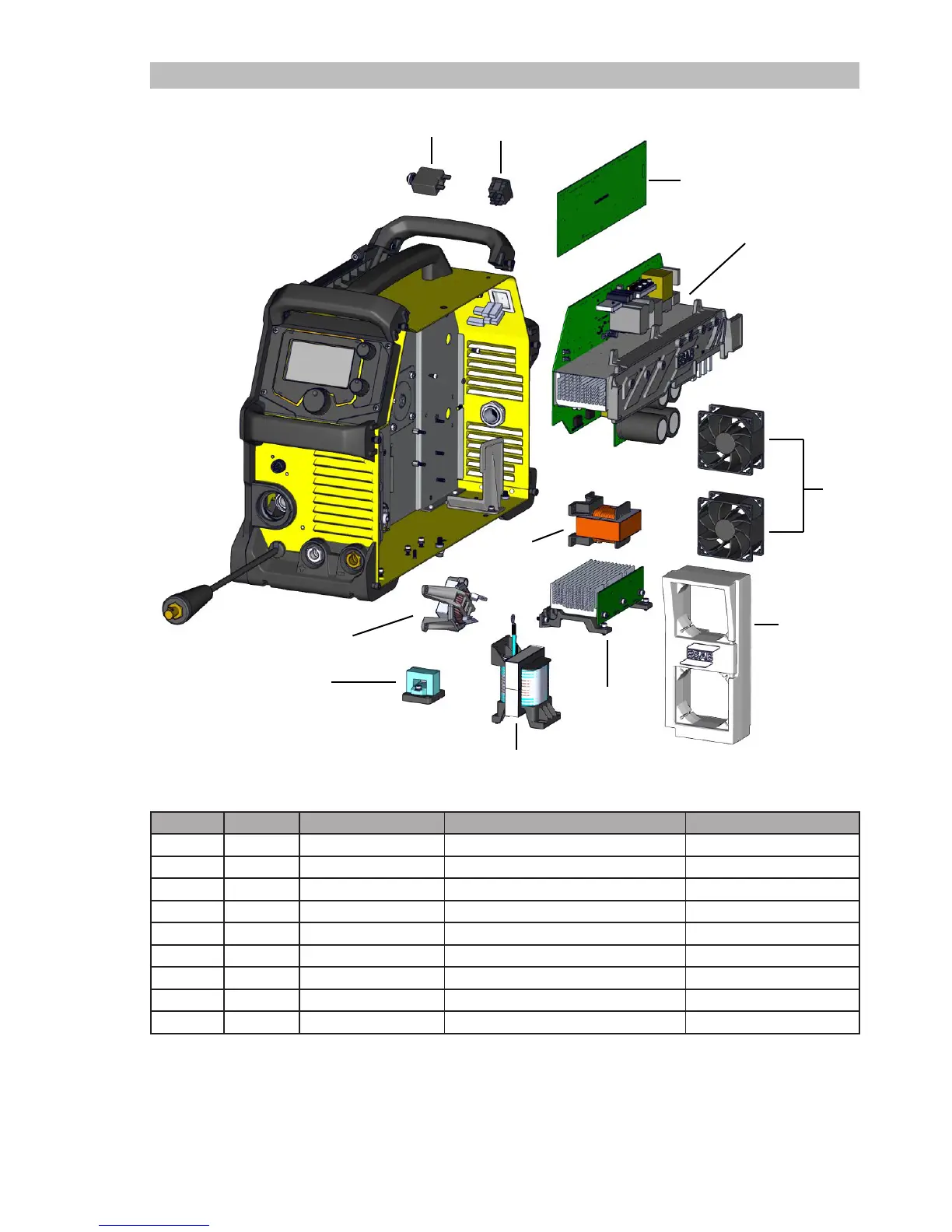

8.05 Internal Replacement Parts 2
1
2
3
4
5
6
7
8
9
10
7
11
Item Qty Ordering no. Description Notes
1 1 0558 102 416 Circuit Breaker CB1
2 1 0558 102 415 ON / OFF Switch SW1
3 1 0558 102 427 Control PCB PCB3 / (20AP1)
4 1 0558 102 426 Power PCB Assembly PCB2 / (15AP1)
5 1 0558 102 420 Fan 1&2 M1,M2 / (EV1,EV2)
6 1 0558 102 421 Fan protection foam
7 1 0558 102 431 PFC Inductor
8 1 0558 102 429 Output Diode Assembly PCB4 / (15AP2)
9 1 0558 102 428 Main Transformer
