Part 2 SES 2000 AUTOCLAVE
Page 12 of 43 ST-SM8l
PART 2 DESCRIPTION

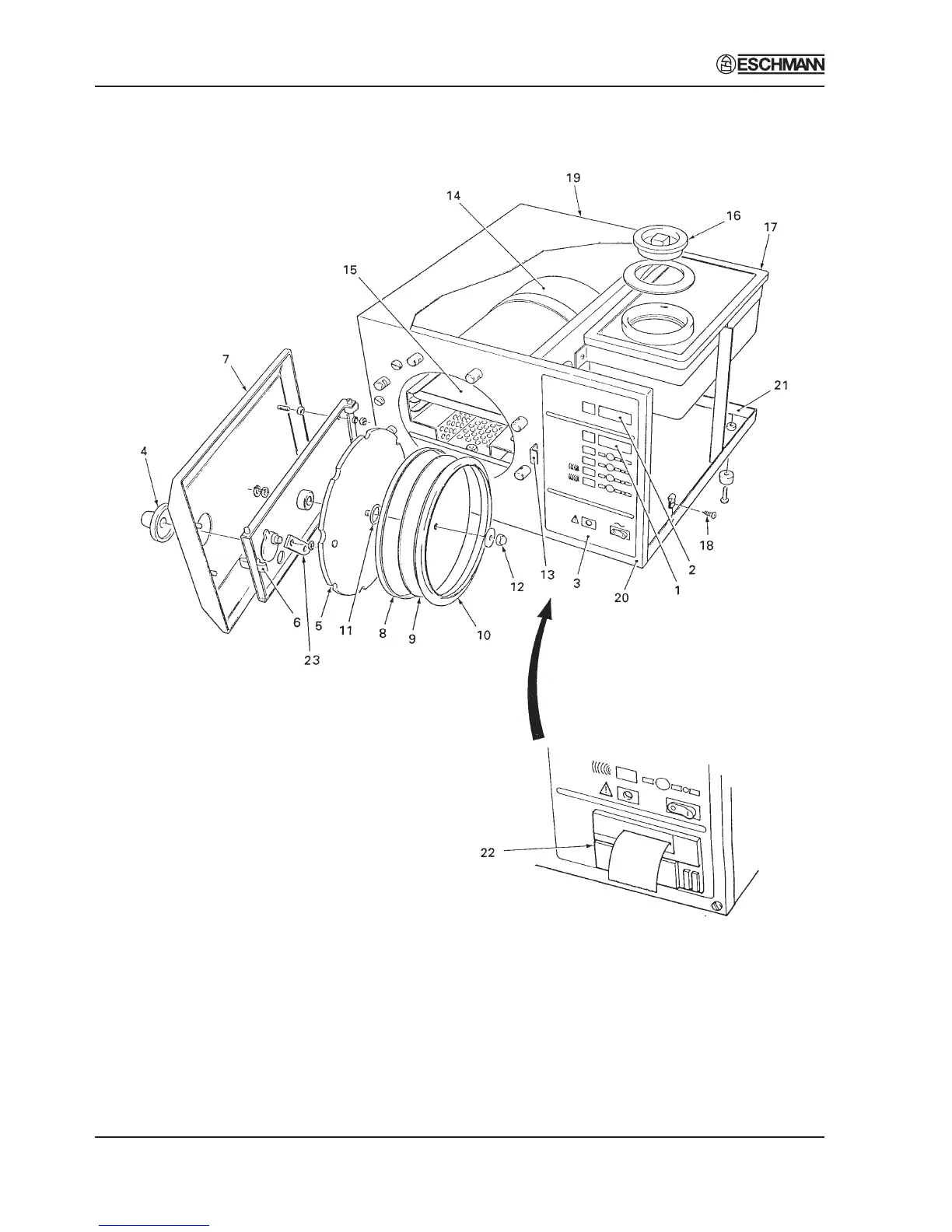

Fig. 2 Autoclave General Arrangement
1 Process display window
2 Pressure display window
3 Control panel
4 Door latching handle
5 Pressure door
6 Secondary door latch
7 Door cover
8 Seal retaining rim
9 Seal retaining disc
10 Door seal
11 ‘O’-ring (on older models)
12 Aerotight nut #
13 Door safety catch
14 Pressure chamber
15 Work tray
16 Reservoir access cover
17 Reservoir
18 Cover screw (self-tapping)
19 Unit cover
20 Front panel
21 Chassis
22 Printer
23 Link
# Now replaced by nut and spring washer, see Parts List 2, item 27.
