SES 2000 AUTOCLAVE Part 4
Chamber changes on current models:
To ensure easy access into the chamber to meet the requirements of PSSR2000, the following parts
have been fitted. This enables temperature and pressure measurement at this point.
Standard Chamber
The Chamber (part number 490040) has been fitted with the following new parts at the top rear port:
427030 1 ¼" BSP chamber fitting
490037 1 Blank chamber fitting
490031 2 Chamber nut
427041 2 Copper washer
380082 1 Tee
301349 1 Twinlock
380020 1 ¼" BSP Plug
391132 1 ¼" BSP Dowty washer
Long chamber
The Chamber (part number 490117) has been fitted with the following new parts at the top rear port:
427030 1 ¼" BSP chamber fitting
380082 1 Tee
301349 1 Twinlock
380020 1 ¼" BSP Plug
391132 1 ¼" BSP Dowty washer
8 watt solenoid valve spares
The latest (from early 2007) solenoid valve tubes fitted to these machines do not have an angle for sealing to the
brass manifold, they rely on the 'O' ring to seal. The basic valve is part number 301906, the spare valve parts are
illustrated and detailed below:
Description Part No.
Tube 110765
Armature 110764
Valve seal 111536
'O' ring 115454

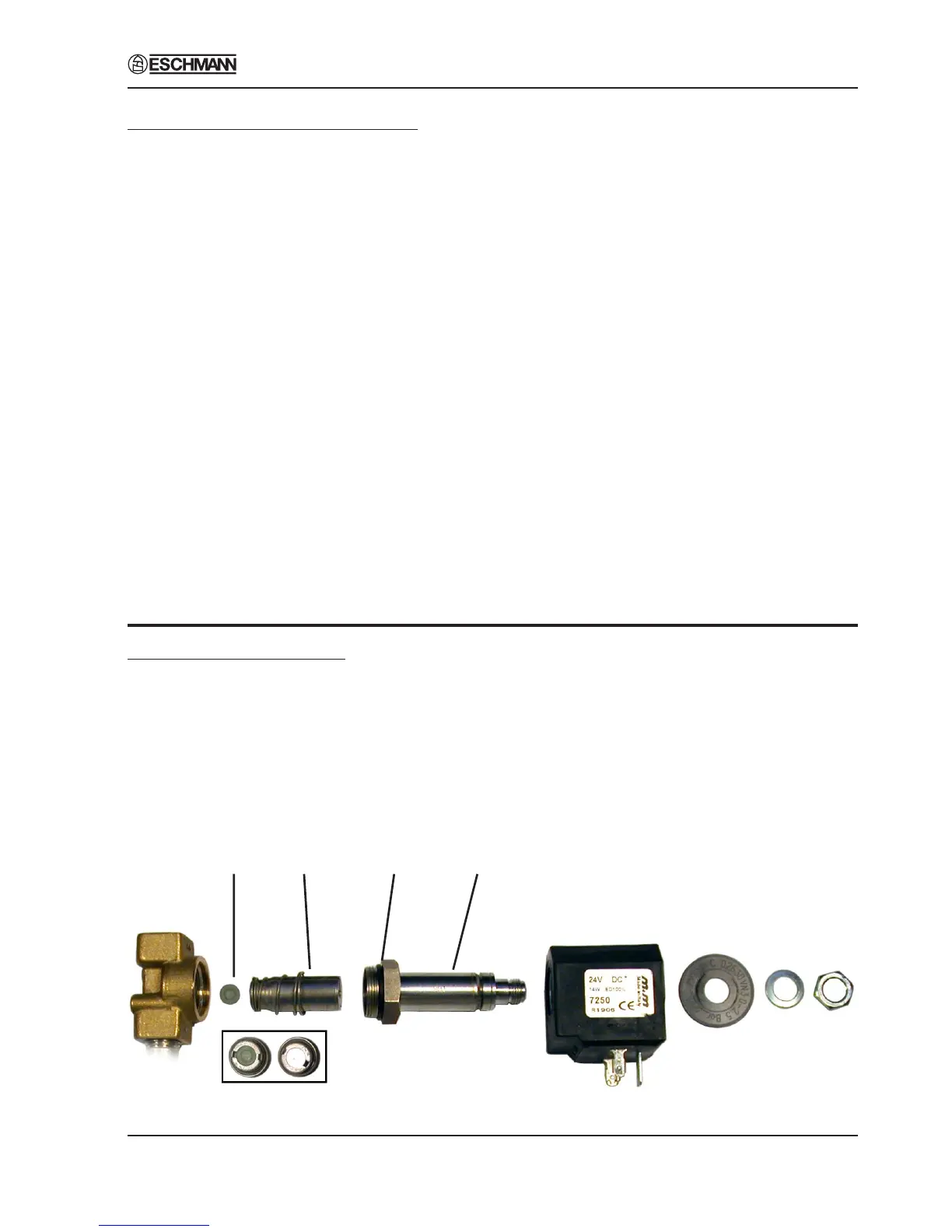

Armature TubeSeal
End of armature shown with
and without the seal in place.
Nut and washers
'O'
ring
