SES 2000 AUTOCLAVE Part 2
ST-SM8l Page 13 of 43
PART 2 DESCRIPTION

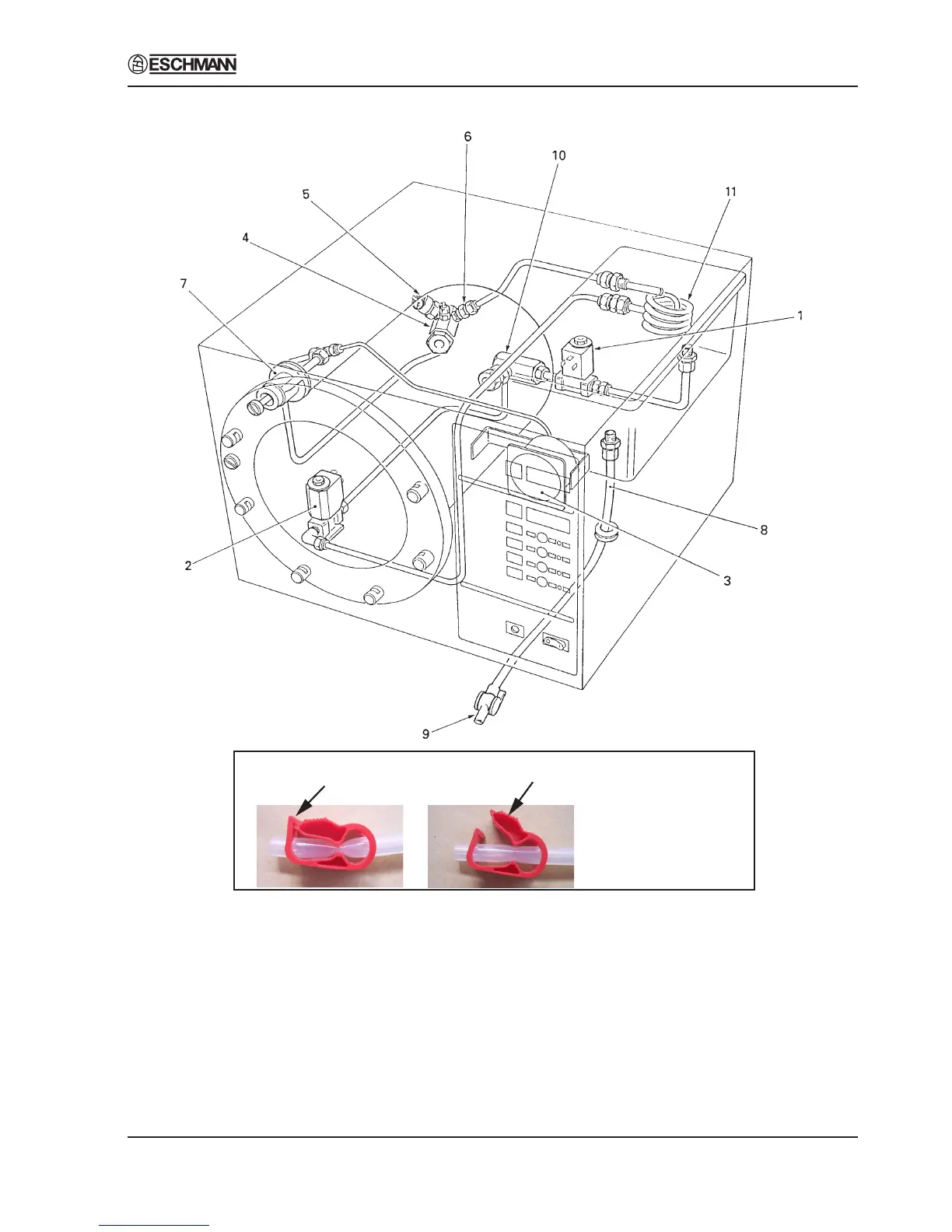

Fig. 3 Autoclave: Pipes and Valves
7 Pressure door lock
8 Reservoir drain tube
9 Drain tap
10 Filter unit
11 Coil
1 Water fill valve
2 Discharge valve
3 Pressure gauge
4 Chamber manifold
5 Safety valve
6 Air valve
NOTE: On the latest units the copper pipes and fittings have been replaced by
plastic tubing and modified fittings. Refer to the parts list for more details.
Push to open
Press to close
Current drain tap. Note
correct orientation and
location on drain tube.
