eschmann SES2000 - Fig. 1 SES 2000 Autoclave; Fig. 9 Pipes and Valves

Page 32 of 43 ST-SM8l
Part 4 SES 2000 AUTOCLAVE
Fig. 9 Part No Description Qty.Per Recommended Holding
Item No Standard Long Unit Per Unit, Per Year
Pressure chamber assy. 1 -
1 490090** 490117** . Chamber 1 Not available for purchase
2 490191# . Waterfill pipe assy. 1 -
3 490268 . Manifold, assy., including 1 -
- 380082 . . 'T' piece 1 -
- 380020 . . ¼" Plug 1 -
- 391132 . . ¼" Washer 1 -
- 490258 . . Manifold 1 -
- 301349 . . Test plug (no longer fitted) 1 -
- 301739 . . Safety valve 1 1
- 301625 . . Coupling 1 -
- 425176 . . Air valve (see below for 110Volt) 1 -
- 110064 . . Air valve (110Volt models only) 1 -
4 490173 Valve, solenoid (water fill) assy. 1 1
5 490048 Valve, solenoid (discharge) assy. 1 1
6 490195 Filter assy. 1 1
6A* 380036 . Washer, copper 1 1
7 427035 Pressure lock assy. 1 -
8 427060 . Bolt, locking 1 -
9 490010 Pressure gauge 1 -
10 380010 Tap 1 1
11 490157 Coil 1 -
* Not illustrated ** see 'Chamber changes notes' on page 33
# was 490252 pre SN SED3I1798 for Standard and 490220 pre SN LSEB3I0045 for Long.
PART 4 ILLUSTRATED PARTS LIST 1: PIPES AND VALVES

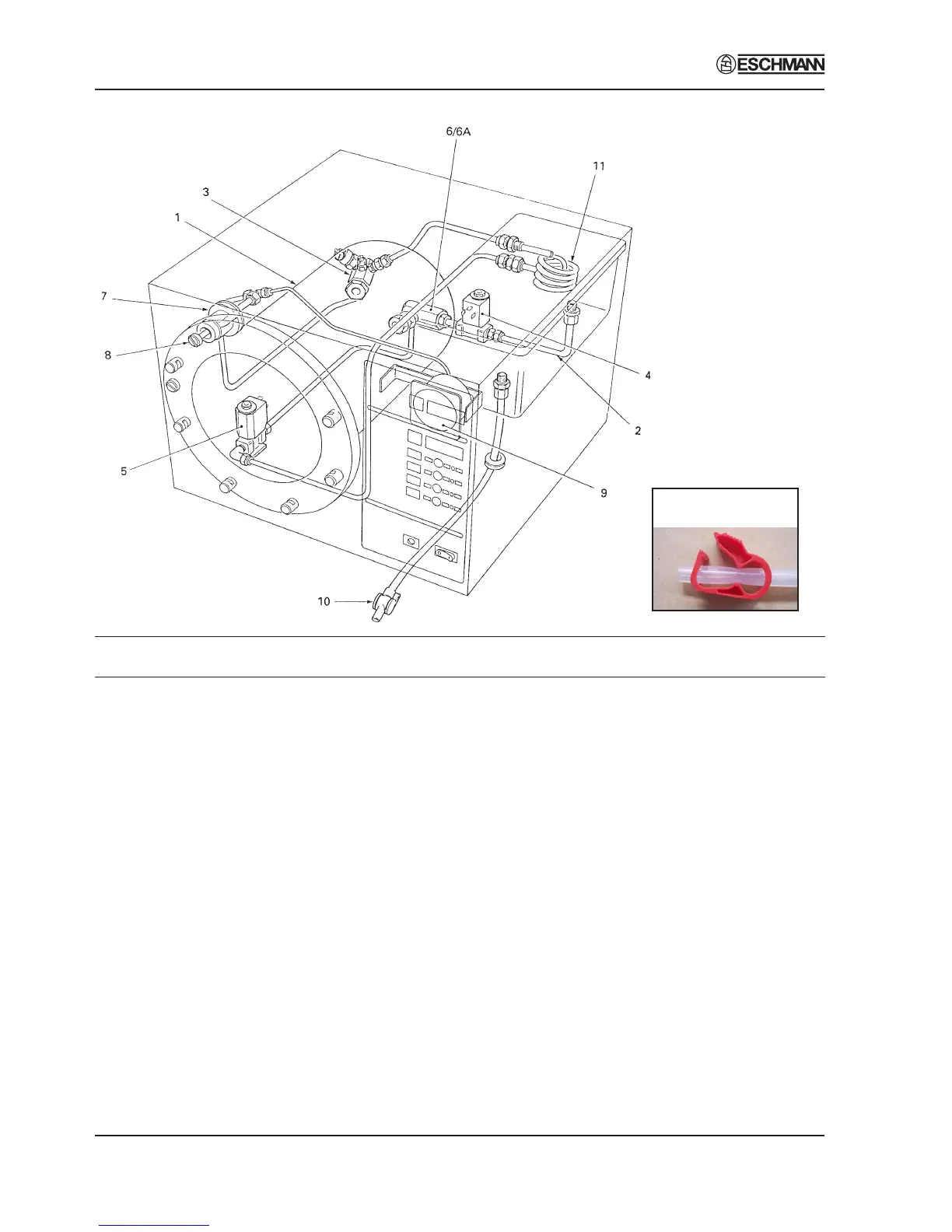

Fig. 9 Pipes and Valves
For units with
silicone (i.e. not
copper) pipes
see page 31.
Illustration of tap
now supplied
