Estun E-Series User Manual

E300 Operation Manual
Timing Charts
Document Version: V1.01
ESTUN AUTOMATION Proprietary
X
PROCESS
Retract
Delay
TDC
Mute
Pinching
BDC
Opening
Time
1
=
No Command
2 =
Fast Closing
3 =
Pressing
4 =
Dwell Time
5 =
Decompression
6 =
Opening
1 =
No Command
Beam
Position
Depend on the
settings of opening

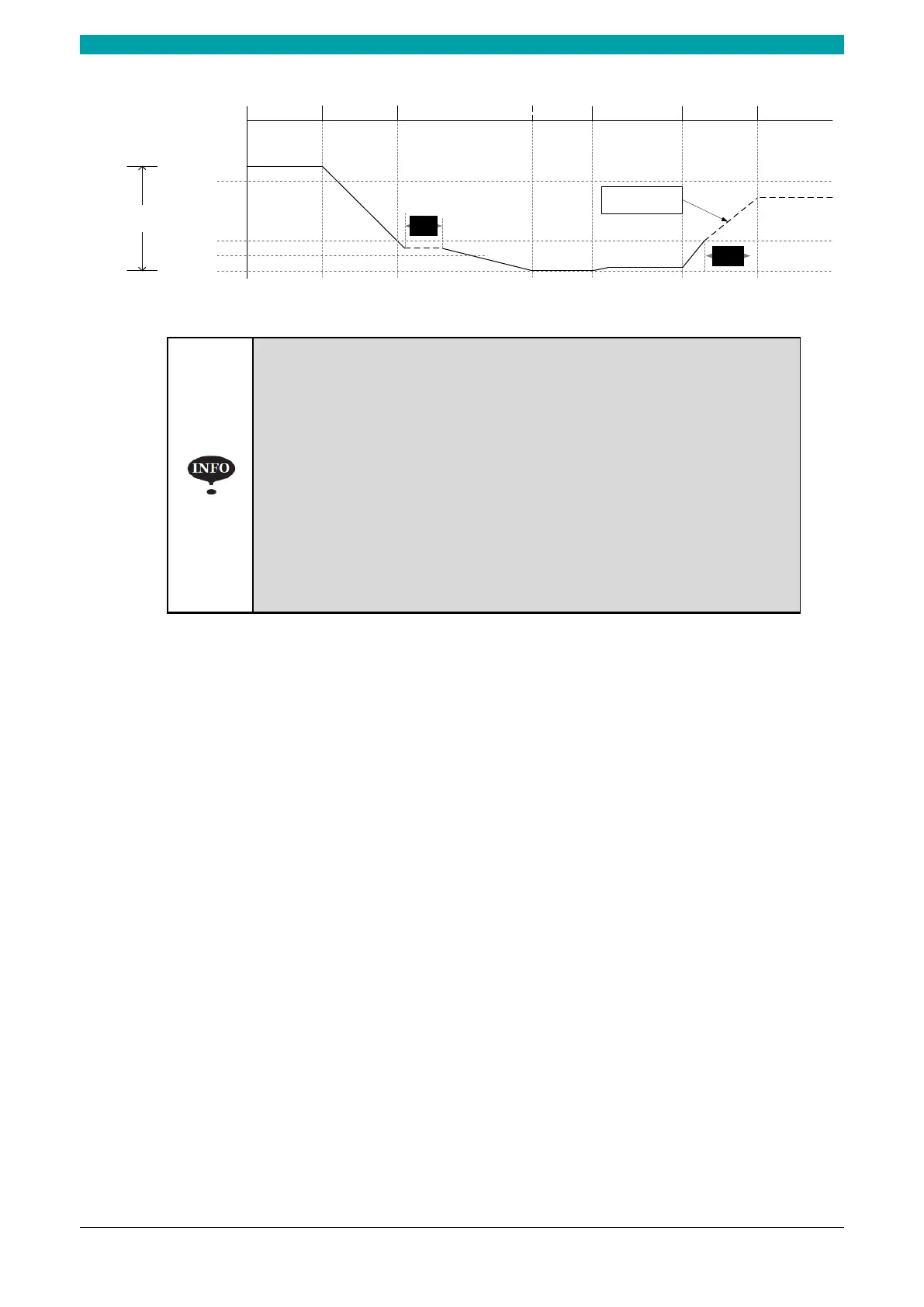

Figure C-2 Timing Chart B
 In the case of retracting, let the Y-axis wait until the retract is
finished, you shall set the parameter Wait Retract to Yes.
 When the beam has reached the TDC in opening, the TDC
signal can be turned ON and the beam stops the moving.
 If you have set the parameter Retract in your programming,
the X-axis can start retracting when the Retr.DLY
time has
been finished. Then, the X-axis will not reposition until the next
step is started.
 The opening time is started when the Mute Signal is turned
from ON to OFF.
