6.8.2. Connection scheme LokSound 5 L decoder

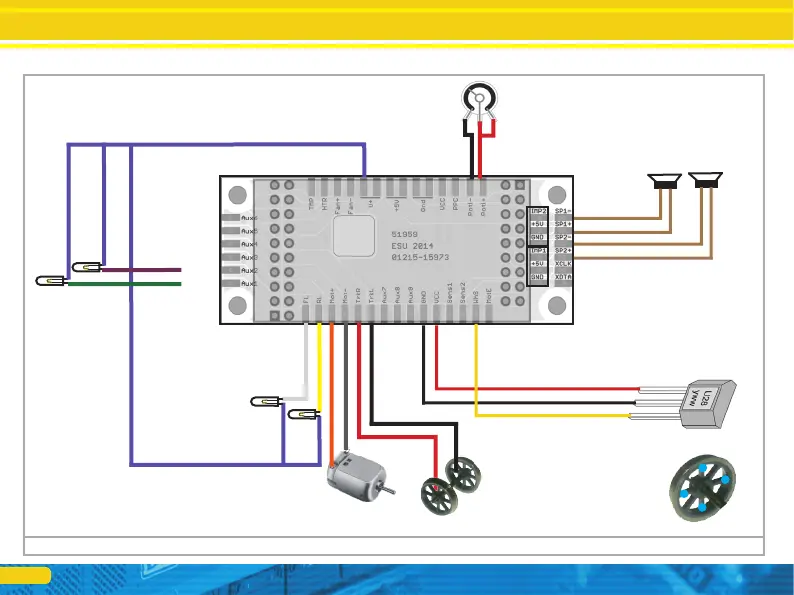

Figure 11: Wiring Scheme LokSound 5 L (Example wiring), decoder placed on adapter board 51959
DC motor
speaker 1
4 ~ 16 ohms
Speaker 1
Speaker 1
Rail links Right
track
AUX2 (Power)
AUX1 (Power)
AUX4 (power)
AUX 3 (Power)
AUX6 (Power)
AUX5 (Power)
Speakers 2
Speakers 2
Speakers 2 4 ~ 16
ohms
Input
ground
VCC
Hall Sensor IC
4x miniature
magnet
Volume control
10 kOhm logarithmic
Connection scheme LokSound 5 L
AUX12 / Susi Clk / Servo6 AUX11
/ Susi Dta / Servo5
AUX11, AUX12, AUX13 are logic level outputs
AUX7 (Power) AUX8 (Power) AUX9 (Power)
Engine -
Engine + light rear light front
SENSOR1 SENSOR2
GND
VCC rail links Right track
Wheel sensor
motor switch
Servo4Servo3
AUX13 (logic levels)
