Esu 58410 - Powerpack for Loksound Micro and Loksound

43
Installing the decoder
GND (ground)
U +
ESU
PowerPack
charge

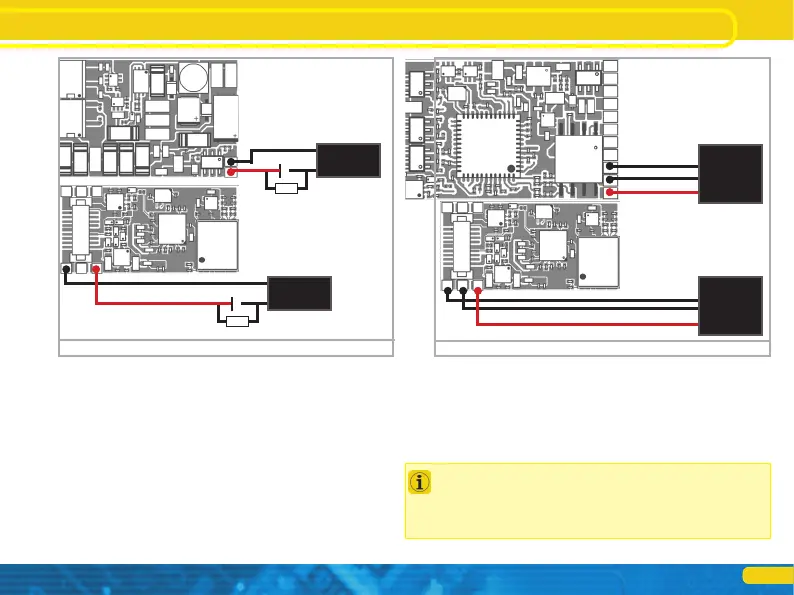

Figure 32: 2200 m F capacitor to LokSound / LokSoundFigure 32: 2200 m F capacitor to LokSound / LokSoundFigure 32: 2200 m F capacitor to LokSound / LokSound
Dimensions
U +
100 Ω, 1.4 Watt 100 Ω, 1.4 Watt 100 Ω, 1.4 Watt
2200uF
25V
LokSound 5
1N4007
LokSound micro 5
Dimensions
U +
100 Ω, 1.4 Watt 100 Ω, 1.4 Watt 100 Ω, 1.4 Watt
2200uF
25V
1N4007
6.12.2.PowerPack for LokSound micro and LokSound
To all LokSound LokSound 5 or 5 micro decoder you can solder a particularly
powerful energy buffer. Abbil- dung 33 shows how it is done. This "PowerPack"
can let your locomotive continue up to two seconds. ESU delivers matching
Power Pack Modules with the item number 54671 and 54,672th Please do
ONLY use these.
• The PowerPack only operates in digital mode. On analog plant-gen, the
PowerPack switches off automatically.
• To fully charge the capacitor ( "GoldCap") requires the decoder up to two
minutes. Therefore, the bridgeable buffer time depends on the current draw of
your locomotive and the charge- up time.
Figure 33: Power Pack to LokSound 5/5 LokSound micro
LokSound 5
LokSound micro 5
• For details on use of the Power Pack module, see the instructions for the Power
Pack mode.
LokSound 5 L and XL LokSound 5 have a high standard to the current needs of
the gauges adapted Power Pack already "on board". An additional buffering with
condensers or other power packs is usually not necessary.
The time, which is to the power pack to shutdown be bridged must be set with
the help of CV 113th The output AUX9 or AUX7 must be set to the "Power
Pack Control". Section 10.10. provides more information.
