28
Installing the decoder
6.8.3.2. Following LGB decoder interface
More modern LGB locomotives equipped with a digital interface and are prepared
for the installation of digital components.
6.8.3.3. Following Aristocraft® interface
Many locomotives from Aristocraft® have a steller by these manufacturers
"standardized" digital interface and are prepared for the installation of digital
components. The connection is made as shown in fig. 15.

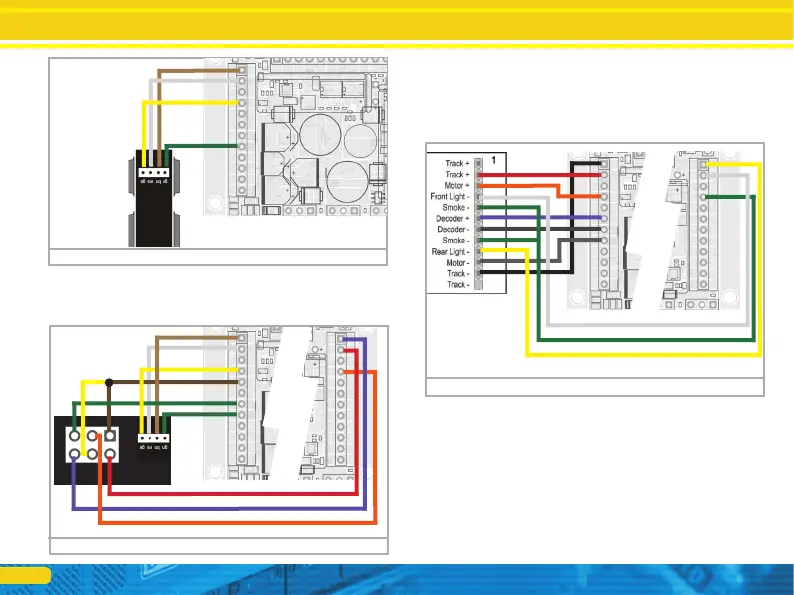

Figure 13: LGB transmission
Figure 14: LGB decoder interface
Figure 15: Aristocraft interface
brown = rail left white =
right rail
yellow = Motor +
green =
motor -
1
2
5
6
brown / yellow = U +
red = light blue =
front light back
green = GND
orange = AUX1
