6 Cables and Accessories
The “Cables and Accessories” chapter contains an overview of the available
cables and accessories.
6.1 Cable CBCF100

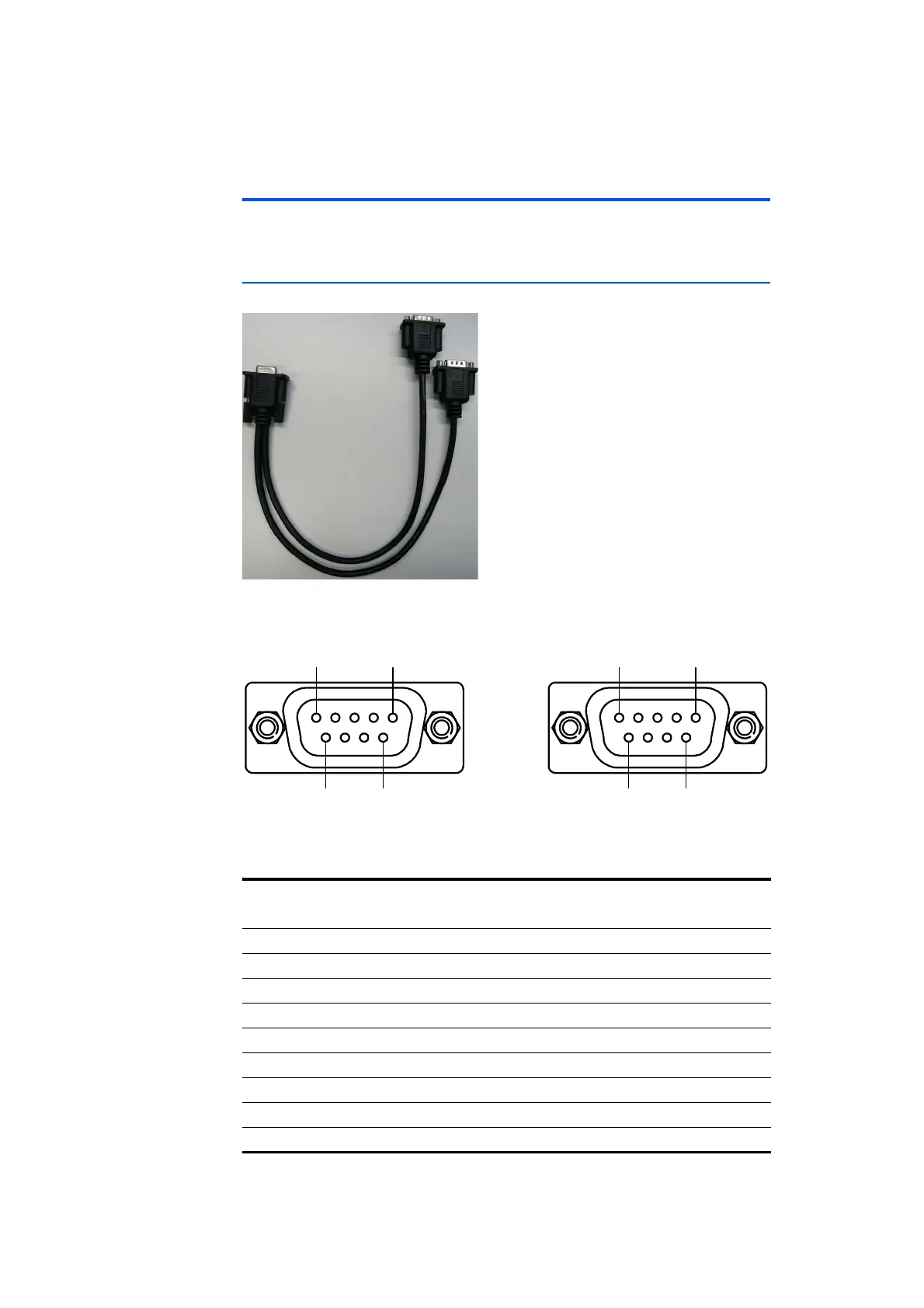

Fig. 6-1 CBCF100 Cable
Fig. 6-2 CBCF100 Cable: DSUB Connector "1" and "2"
DSUB Connector „1“ DSUB Connector „2“
Pin Signal (CAN 1) Pin Signal (CAN 2)
1 Not connected 1 Not connected
2 CAN 1 Low 2 CAN 2 Low
3 Ground 3 Ground
4 Not connected 4 Not connected
5 Ground (Shield) 5 Ground (Shield)
6 Ground 6 Ground
7 CAN 1 High 7 CAN 2 High
8 Not connected 8 Not connected
9 Not used 9 Not used
