ETAS ES581.4 - Cable CBAC180; Fig. 6-3 CBAC180-2 Cable

ES581.4 - User’s Guide38
Cables and Accessories ETAS
6.2 Cable CBAC180
Adapter cable to connect OBDII J1962 to ES581.4.

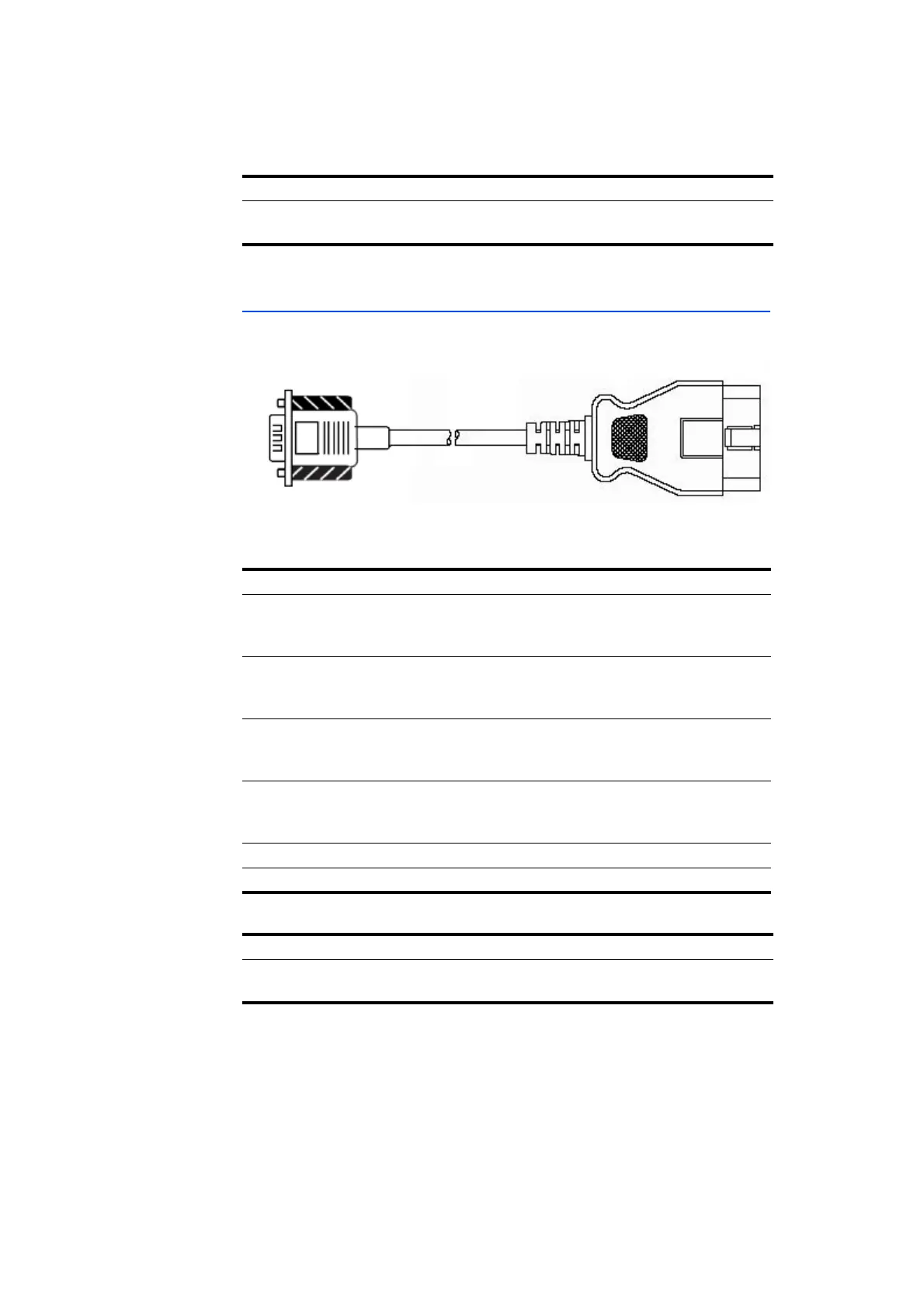

Fig. 6-3 CBAC180-2 Cable
Order Name Short Name Order Number
CAN and FlexRay Interface Y-Cable, DSUB –
2 x DSUB (9fc-9mc+9mc), 0m3
CBCF100.1-0m3 F-00K-107-939
Signal 9 Pin DSub OBD2 Note
CAN1 High 7 6 CAN1 High and CAN1
Low are in a shielded Twist
Pair
CAN1 Low 2 14 CAN1 High and CAN1
Low are in a shielded Twist
Pair
CAN2 High 8 3 CAN2 High and CAN2
Low are in a shielded Twist
Pair
CAN2 Low 4 11 CAN2 High and CAN2
Low are in a shielded Twist
Pair
Power V+ 9 16
GND 3 5
Order Name Short Name Order Number
CAN Interface Cable, OBDII J1962 - DSUB
(16mc-9fc), 2m
CBAC180.0-2 F-00K-107-300
