ETAS ES581.4 - Adapter CBCX131.1-0; Fig. 6-4 CBCX131.1-0 Termination Resistor

ES581.4 - User’s Guide 39
ETAS Cables and Accessories
6.3 Adapter CBCX131.1-0

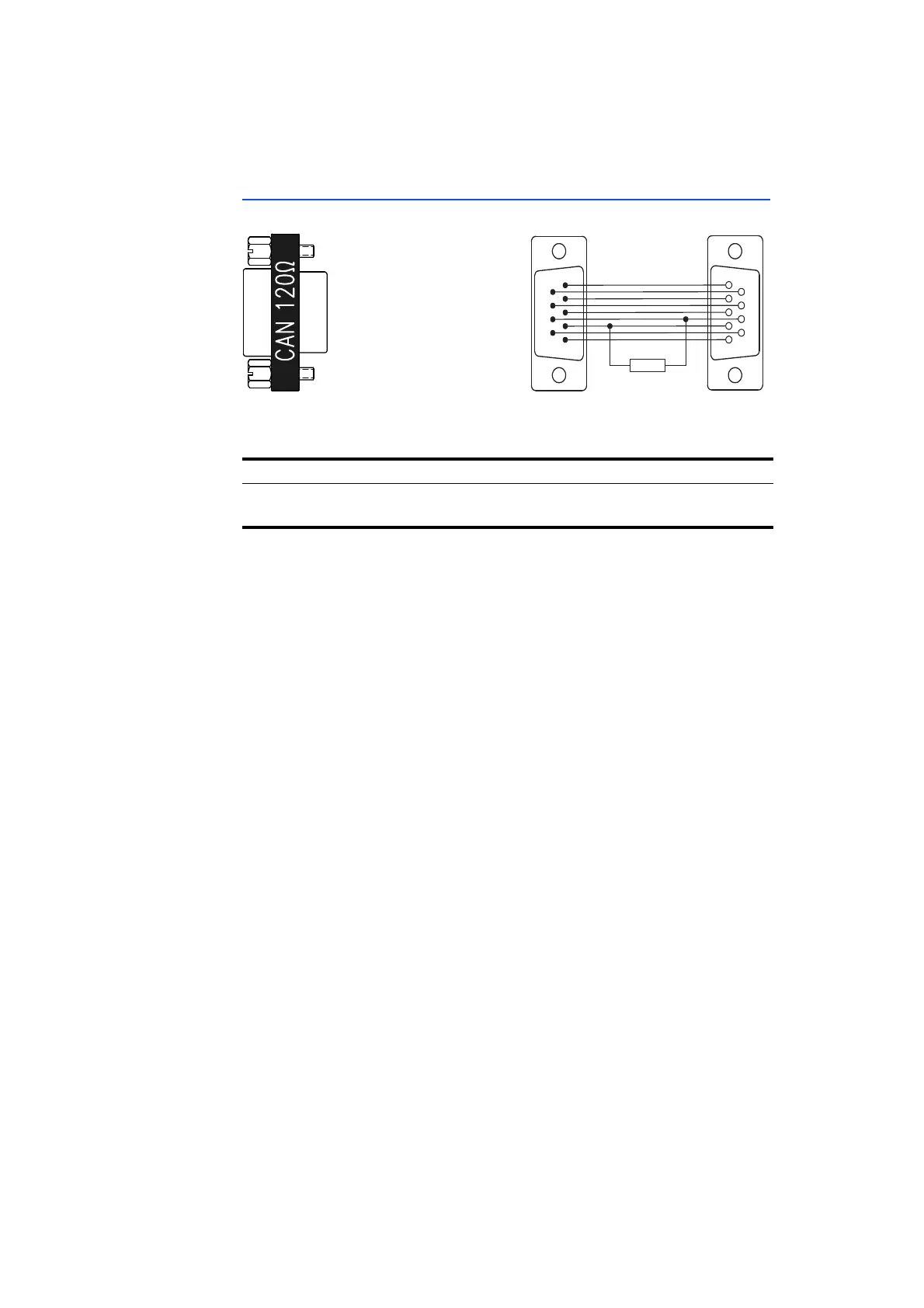

Fig. 6-4 CBCX131.1-0 Termination Resistor
Order Name Short Name Order Number
CAN 120 Ohm Termination Resistor, 2xD-
SUB (9fc+9mc)
CBCX131-0 F-00K-103-786
5
4
3
2
1
6
7
8
9
5
4
3
2
1
9
8
7
6
120 Ohm
