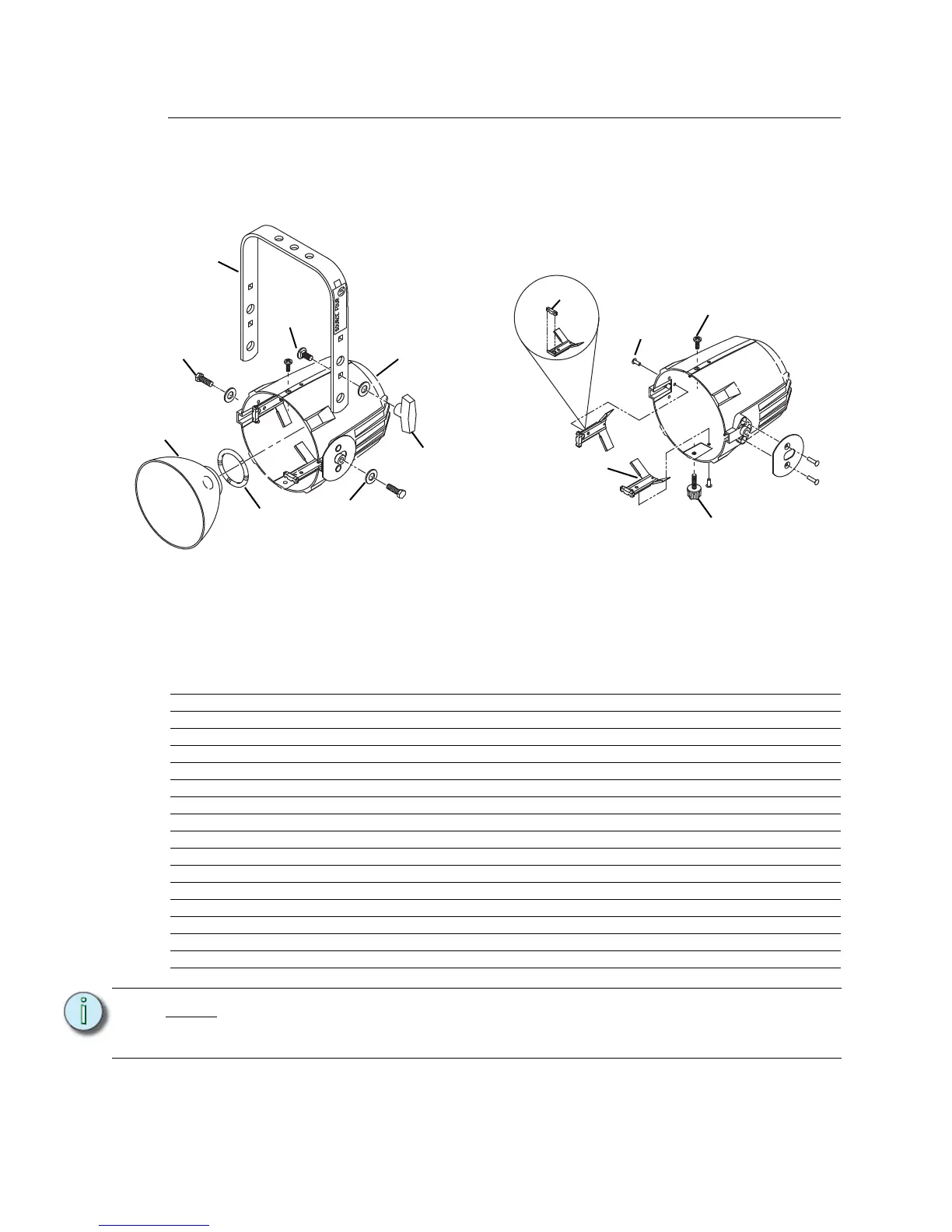

8 Source Four Assembly Guide
Reflector Housing Assembly
Reference
Number
Part
Number
Description Quantity
Required
1 7060A2013-K Reflector housing rivet assembly, single clutch, Black 1
2 7060A2019-K Reflector housing rivet assembly, double clutch, Black 1
3 7060A3006 Clip, reflector retainer 4
4 7060A3019 Spring, reflector support 1
5 7060A3058 Bracket, Yoke, Black 1
6 7060A3080 Light leak baffle, Black 2
7 7060A4008-01 Knob set with male insert 1
8 7060A4010 Bushing, gate 4
9 7060A4015 Reflector, molded glass, coated 1
10 HW5125 Bolt, carriage 5/16-18 x 3/4” LG 2
11 HW5126 Washer, flat, 5/16, black zinc 4
12 HW5127 Nut, hex, 5/16-18 2
13 HW5193 Bolt, hex, 5/16-18 x 3/4”, black zinc 2
14 HW5197 Screw, PH, 1/4-20 x 5/8”, black zinc 1
15 HW752 Rivet, machine, 3/16 x 31, oval head, black zinc 4
16 HW8144 Handle, yoke, knob, 5/16-15, Black 2
Note:
Any part that is indicated as “Black” may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
Double-clutch reflector housing
for 5°and 10° fixtures.
Figure 8
1
2
3
4
5
7
8
9
10
11
13
14
15
16
