Lens Tube - 70° 25
Assembling lens tube - 70°

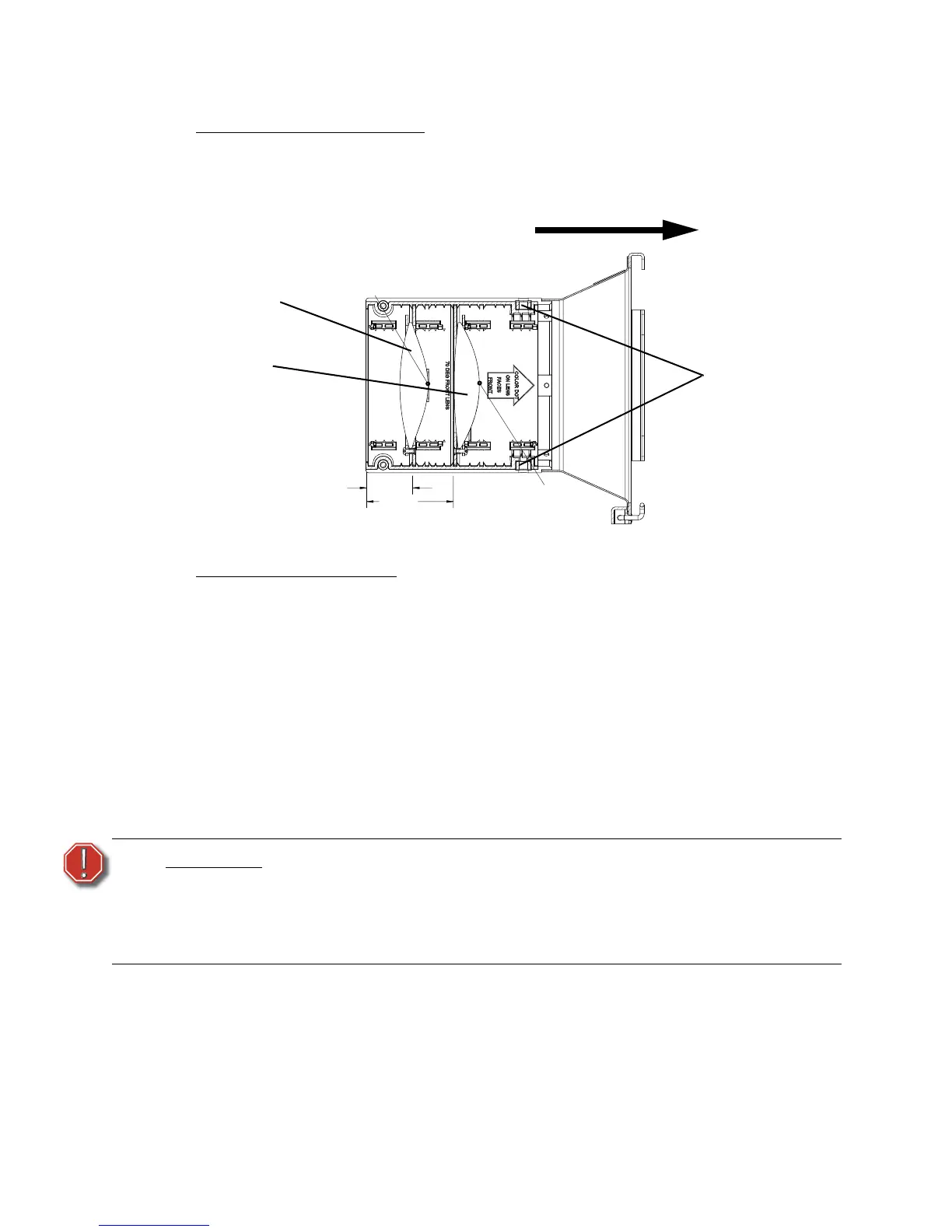

Lens Markings and Positions
The lenses are color-coded for identification. The rear lens has two green dots and the front
lens has one green dot. The lens positions are color-coded within the lens tube casting to
match the colored dots on the lenses (see Figure 24).
Assembling the lens tube
Tools Required:
• #2 Phillips head screwdriver
Step 1: See Figure 23. Place rear lens (1) into mounting plate (2) with paint dots facing
forward. Center the lens in the mounting plate and secure with the retaining ring
(3) and screws (6). Lightly tighten all three screws while maintaining lens
position, then tighten screws securely.
Step 2: See Figure 23. Place front lens (4) into mounting plate (5) with paint dots facing
forward. Center the lens in the mounting plate and secure with the retaining ring
(3) and screws (6). Lightly tighten all three screws while maintaining lens
position, then tighten screws securely.
Cleaning glass lens - 70°
Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol,
distilled water or a 50%-50% mixture of each can be used to clean the glass surface.
WARNING:
Do not use ammonia-based or other harsh commercial cleaners. Clean lens
only as directed.
Commercially available glass cleaning agents should be avoided as they
may contain ammonia, other harsh chemical detergents or abrasive agents.
These cleaners may damage the glass surface and the Anti-Reflective
coatings. Do not immerse or soak the glass in any cleaning solution.
