ETC Source Four - Lens Tube - 5

20 Source Four Assembly Guide
Lens Tube - 5°
Reference
Number
Part
Number
Description Quantity
Required
1 7060A3066 Bracket, gel clip 1
2 7060A3073 Handle backing plate 1
3 7060A3079 Clip, gel retainer with 90° bend 1
4 7060A3086 Gel holder, 5° and 10° 3
5 7060A3095 5° lens tube assembly, Black, empty 1
6 7060A4008-01 Knob set with male insert 1
7 7060A4009 Bushing, guide 8
8 7060A4024 Lens, 5°, 12” 4
9 HW307 Screw, 8-32 x 38LG, SPHMS, black zinc 4
10 HW3104 Washer, 170 x 381 x 023, black zinc 4
11 HW370 Nut, Ny-lok, 8/32, black zinc 4
12 HW443 Washer, 195 x 410 x 025, black zinc 2
13 HW467 Screw, 10 x 32 x 1/2” PHTRMS 2
14 HW5143 Washer, flat fiber 1
15 HW5197 Screw, 1/4-20 x 5/8”, black zinc 1
16 HW6122 Bumper, recess rubber 4
17 HW750 Spring, retainer 1
18 HW759 Rivet, machined, 125 x 125LG oval HD, ST 8
19 HW8170 Handle, 10-32 inserts 1
20 HW5200 Washer, SH, .253 x .281 x .438, black, zinc 1
Note:
Any part that is indicated as “Black” may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.

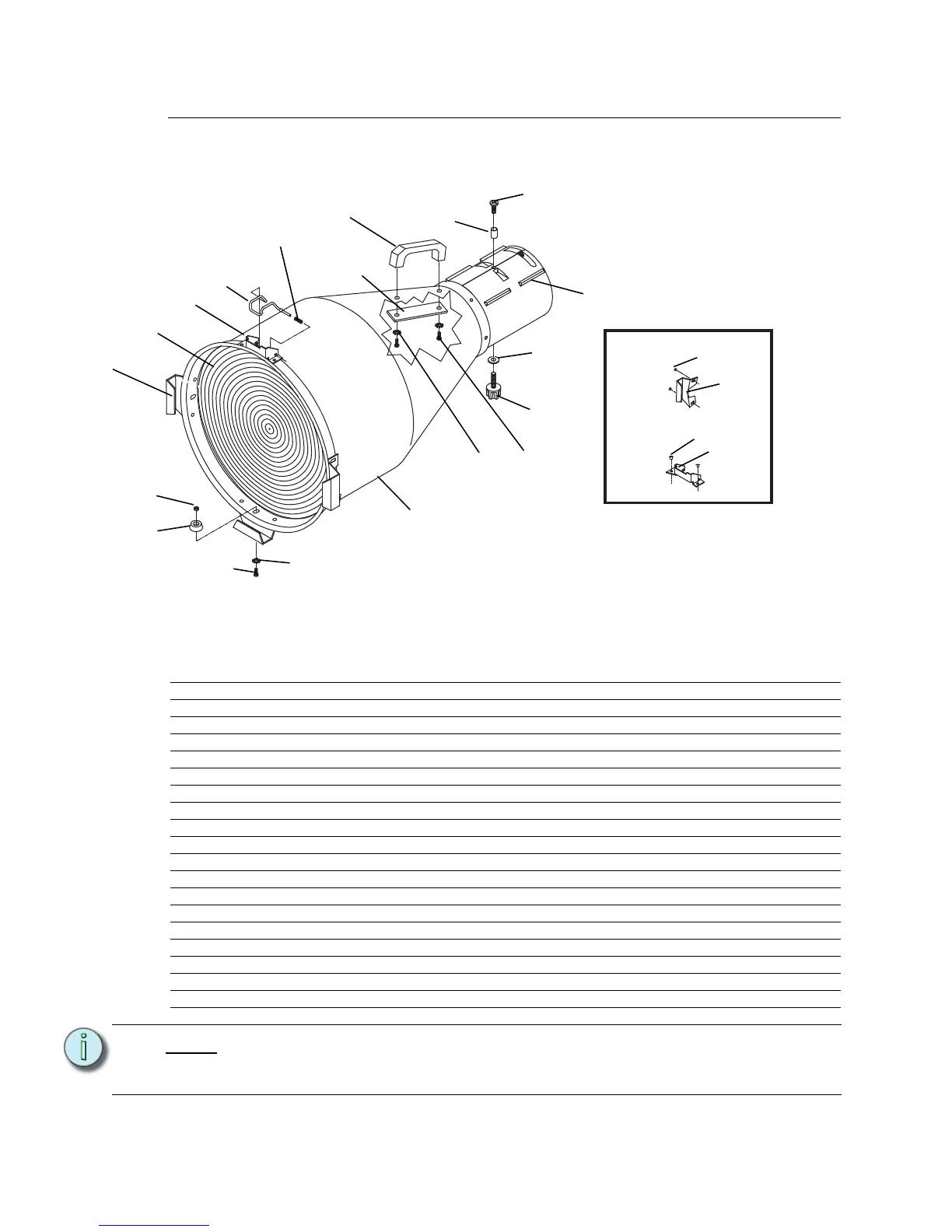

Figure 20
1
2
3
4
5
6
7
8
9 10
11
Detail
“A”
Detail
“B”
See
Detail
“B”
12
13
14
15
16
17
18
18
19
20
