ETC Source Four - Lens Tube - 10

Lens Tube - 10° 19
Lens Tube - 10°
Reference
Number
Part
Number
Description Quantity
Required
1 7060A3066 Bracket, gel clip 1
2 7060A3079 Clip, gel retainer with 90° bend 1
3 7060A3086 Gel holder, 5° and 10° 3
4 7060A3096 10° lens tube assembly, Black, empty 1
5 7060A4008-01 Knob set with male insert 1
6 7060A4009 Bushing, guide 8
7 7060A4025 Lens, 10°, 10 inch 1
8 HW307 Screw, 8-32 x 36LG, SPHMS, black zinc 4
9 HW3104 Washer, 170 x 381 x 023, black zinc 4
10 HW370 Nut, Ny-lok, 8/32, black zinc 4
11 HW5143 Washer, flat fiber 1
12 HW5197 Screw, 1/4-20 x 5/8”, black zinc 1
13 HW6122 Bumper, rubber 4
14 HW750 Spring, retainer 1
15 HW759 Rivet, machined, 125 x 125LG oval HD, ST 8
16 HW5200 Washer, SH, .253 x .281 x .438, black, zinc 1
Note:
Any part that is indicated as “Black” may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.

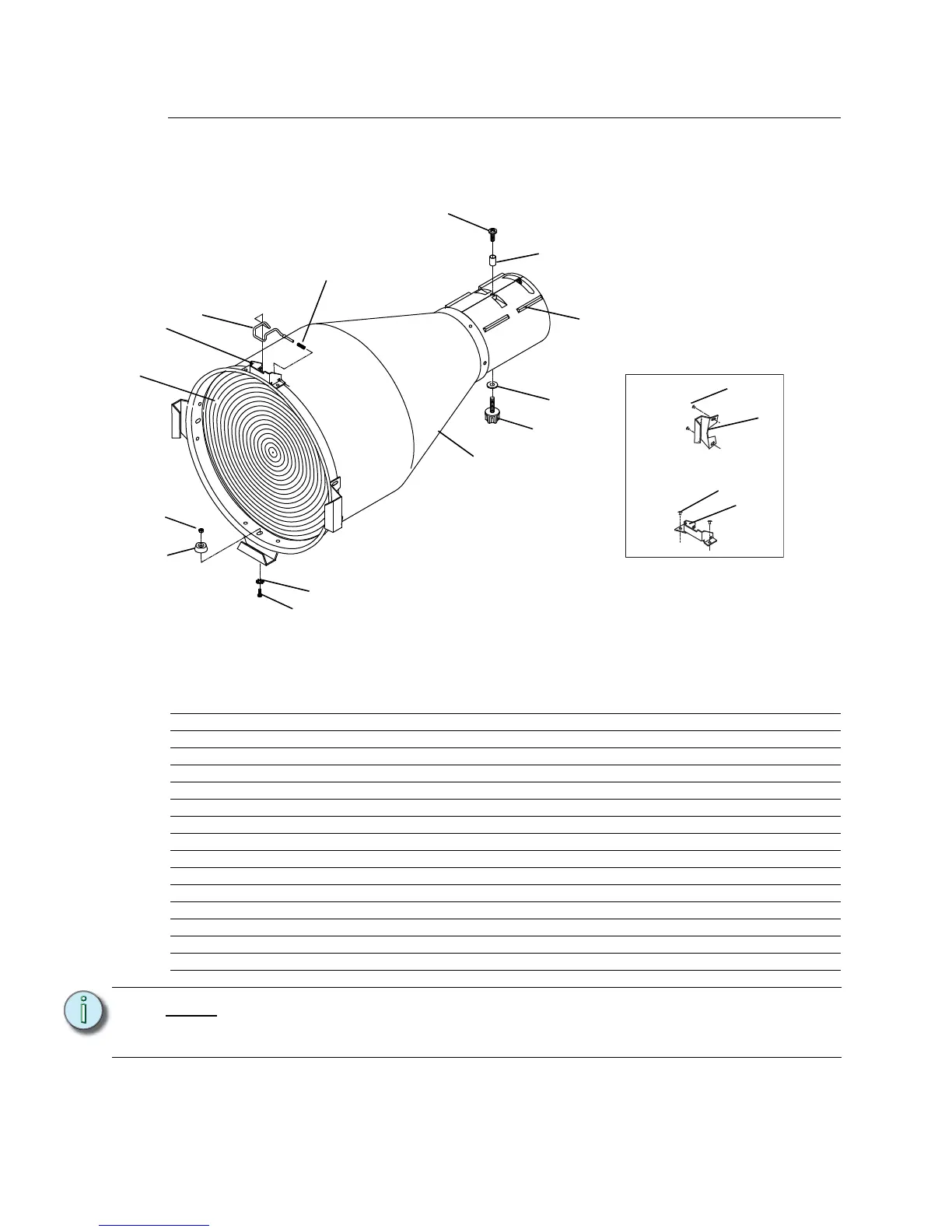

Figure 19
