22 Source Four Assembly Guide
Lens Tube - 14°
For maximum gel life with specific lens tubes, refer to the table below.
Reference
Number
Part
Number
Description Quantity
Required
1 7060A4124 14° Lens , Rear 1
2 7060A4125 14° Lens, Front 1
3 7060A4142 Lens Pad 4
4 7060A3180
Gel clip, lens tube
(common to the S4, 14°, 70°, and 90° lens tubs)
1
5 7060A4143 Label, 14° 1
6 HW750
Spring retainer
(common to the S4 14°, 70°, and 90° lens tubes)
1
7 HW6122 Bumper, rubber 4
8 HW370 Nut, 8-32 4
9 HW307 Screw, Phillips, 8-32 x 3/8, PHMS 4
10 HW3104 Washer, #8 4
11 7060A4009 Bushing guide 8
Lens Tube Soft Focus Back
(Lamp “flat”)
Sharp Focus
(Lamp “cosine”)
Soft Focus Forward
(Lamp “peak”)
Soft Focus Forward
(Lamp “cosine”)
14° worse good best good
Note:
The 14° lens tube casting assembly is not field repairable. Please contact ETC
Customer Service for repair information.
1

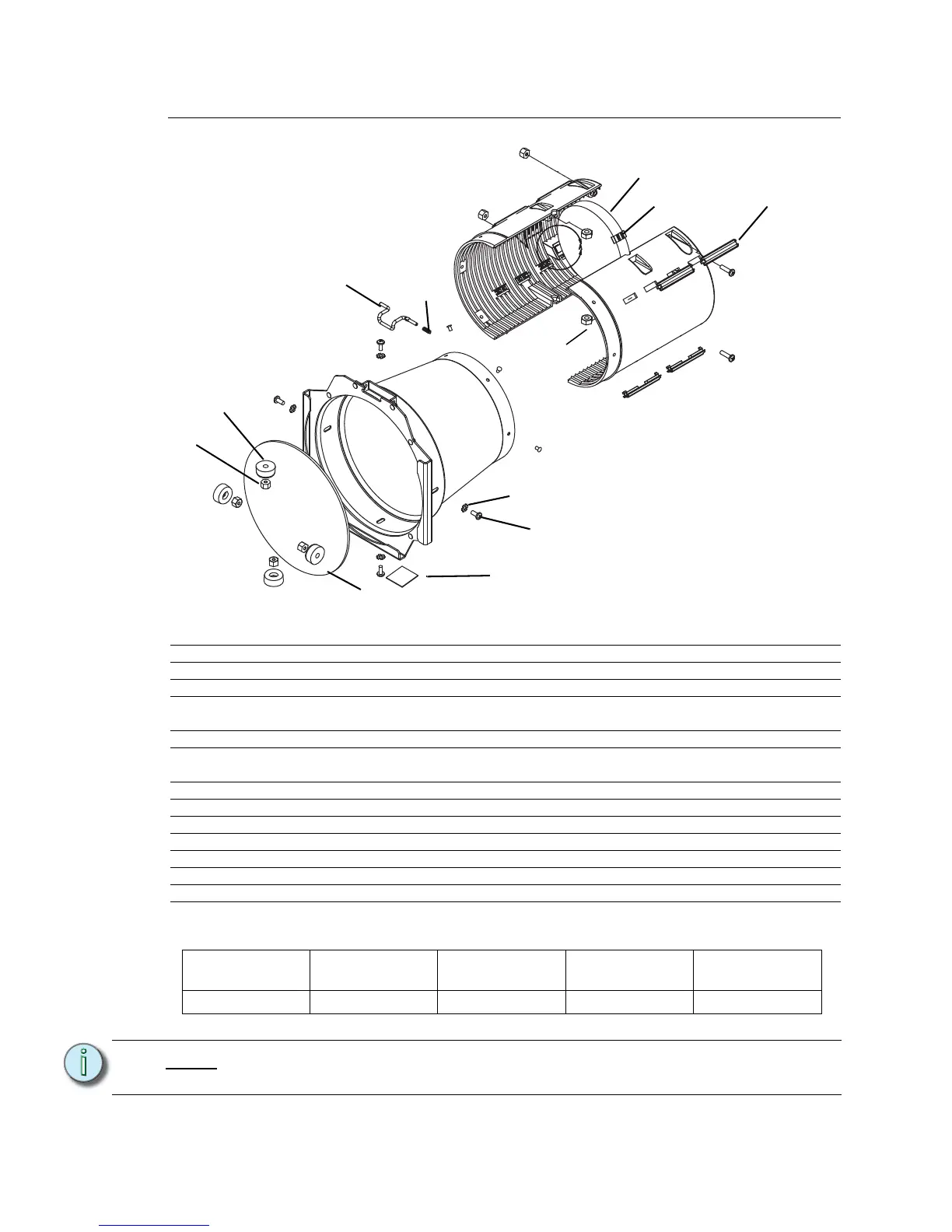

Figure 21
2
3
4
2
7
6
8
5
9
10
11
